320A Eye Hoist Hook with Latch

The US type 320A Eye Hook with Latch is forged from high quality alloy steel. Each hook has a mark on the rated working load and product grade.

WLL:	0.75 Ton 1 Ton 2 Ton 4.5 Ton 7 Ton 11 Ton 15 Ton 22 Ton 30 Ton 50 Ton
Availability:

Quantity:



Inquire Add to Basket

Model:
ZS1205
Brand:
Gostern Rigging
Code:
ZS120510A

320A Eye Hoist Hook with Latch

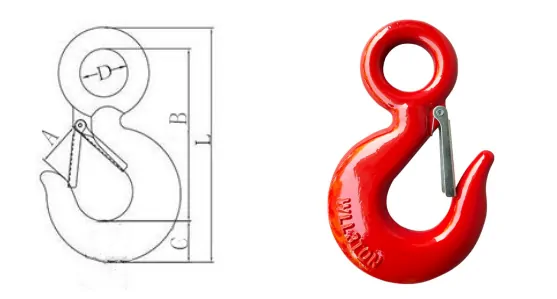

320A Eye Hoist Hook with Latch DRAWING

CAPACITY		DIMENSIONS (mm)					WEIGHT
W.L.L.(T)	B.L.(T)	A	B	C	D	L	(kg)
0.75	3	20	70.6	19.4	17	98	0.2
1	4	22	80	21.5	19	111	0.3
2	8	25	76.3	26.2	27	142.3	0.61
4.5	18	33	146	36.5	39	200.3	1.5
7	28	40	171	49	50	257	3.1
11	44	51	228	57.6	61	315	6
15	60	57	257	65	72	354.4	9.7
22	88	75	320	73	87	433.3	17
30	120	98	356.5	92	90	494.5	29.2
50	200	148.5	520	142	120	727	88
