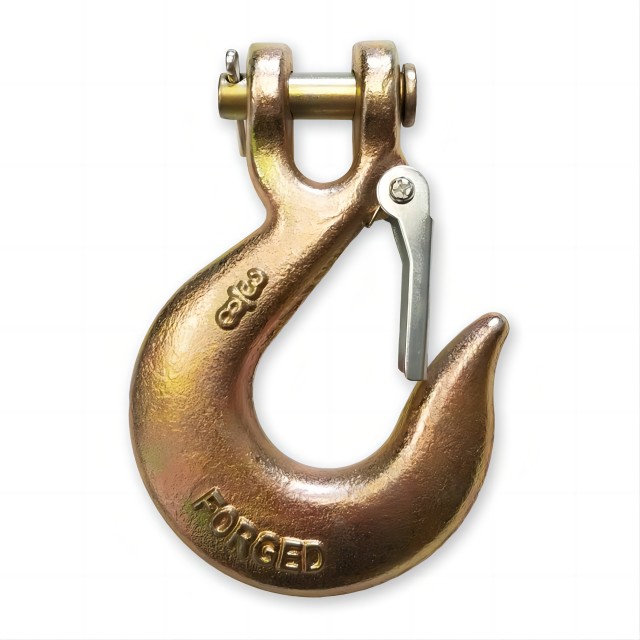

G70 Clevis Slip Hook With Safety Latch

The G70 clevis slip hook is forged with high quality alloy steel, it is used for tralier safety chain, transport chain,etc.
Size:
1/4"
5/16"
3/8"
7/16"
1/2"
5/8"
3/4"
Availability:
Quantity:
Inquire Add to Basket

  • ZS1205

  • Gostern Rigging

  • ZS120505

G70 Clevis Slip Hook With Safety Latch

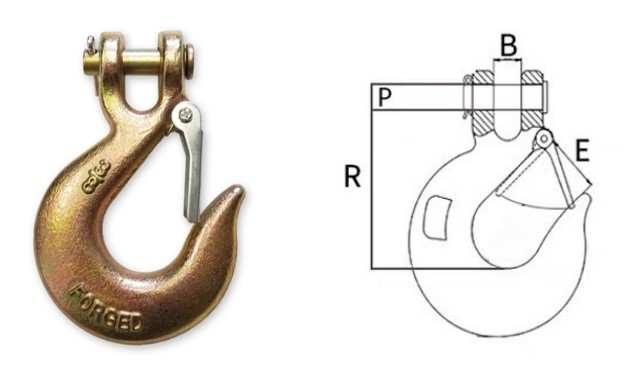

G70 Clevis Slip Hook With Latch-drawing


W.L.L. Chain Dia. Dimensions (mm) Weight
(Ton) lb (inch) (mm) B E P R (kg)
1.25 2750 1/4 6 11 16.5 9.5 65 0.26
1.95 4300 5/16 8 12.7 20.5 11 74 0.39
2.38 5250 3/8 10 14.5 28.9 12 85.1 0.58
3.18 7000 7/16 11 17.3 32 14 93.1 0.96
4.08 9000 1/2 13 19.5 36.1 16 118 1.29
6.12 13500 5/8 16 23.1 37 19 125 2.35
8.74 19250 3/4 19 33.3 46 29 154.7 4.75



Product Name
G70 Clevis Slip Hook with Latch
Material
Alloy Steel
Finish
Yellow Zinc
White Zinc
Grade
G70
Process
Forged
