ZS1205
Gostern Rigging
ZS120518

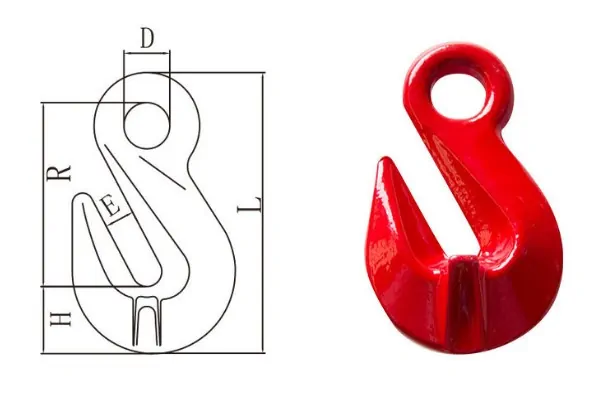

G80 Eye Grab Hook-Eye Type Chain Shortner
W.L.L. | B.L. | DIMENSION (mm) | WEIGHT | ||||
(Ton) | (Ton) | D | E | H | R | L | (kg) |
1.12 | 4.48 | 13.8 | 8.5 | 17.5 | 51.5 | 77.3 | 0.14 |
2 | 8 | 17.5 | 11.5 | 17.6 | 61 | 88.2 | 0.24 |
3.15 | 12.6 | 21.2 | 13.5 | 33 | 79.5 | 122 | 0.65 |
5.3 | 21.2 | 26 | 17 | 42.5 | 100 | 158 | 1.4 |
8 | 32 | 30.5 | 20 | 44.7 | 107 | 169 | 2.2 |
12.5 | 50 | 37.5 | 24 | 55 | 141 | 219 | 4.6 |
15 | 60 | 44.5 | 28 | 68 | 165.3 | 259 | 8.2 |
21.2 | 84.8 | 44 | 31 | 76.6 | 188 | 297 | 9.8 |
31.5 | 126 | 57.5 | 38.5 | 95 | 230 | 363 | 19.5 |
