G80 Eye Sling Hook with Safety Latch for Lifting

G80 eye sling hook is forged with high quality alloy steel, it comes with spring-loaded safety latch.
WLL:
Availability:
Quantity:
  • ZS1205

  • Gostern Rigging

  • ZS120502

G80 Eye Sling Hook with Safety Latch for Lifting

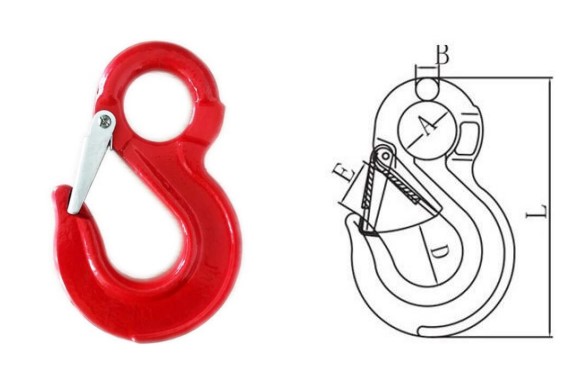

eye sling hook-drawing



W.L.L. B.L. DIMENSIONS (mm) WEIGHT
(Ton) (Ton) A±1 B±1 D±1 E±1 L±2 (kg)
1.12 4.48 20 9 21 24 108 0.3
2 8 25 11 26 30 133 0.4
3.15 12.6 38 15 39 34 167 0.9
5.3 21.2 43 19 54 39 213 1.7
8 32 50 23 64 46 255 3.2
12.5 50 63 24 80.4 48 305 5.8
15 60 62 32 100 71 348 8.5
21.2 84.8 64 35 82 81 394 13.0
31.5 126 88 37 112 102 480 17.0


Product Name
Eye Sling Hook with Latch
Material
Alloy steel
Grade
G80
Safety Factor
4:1
Finish
Powder coating
