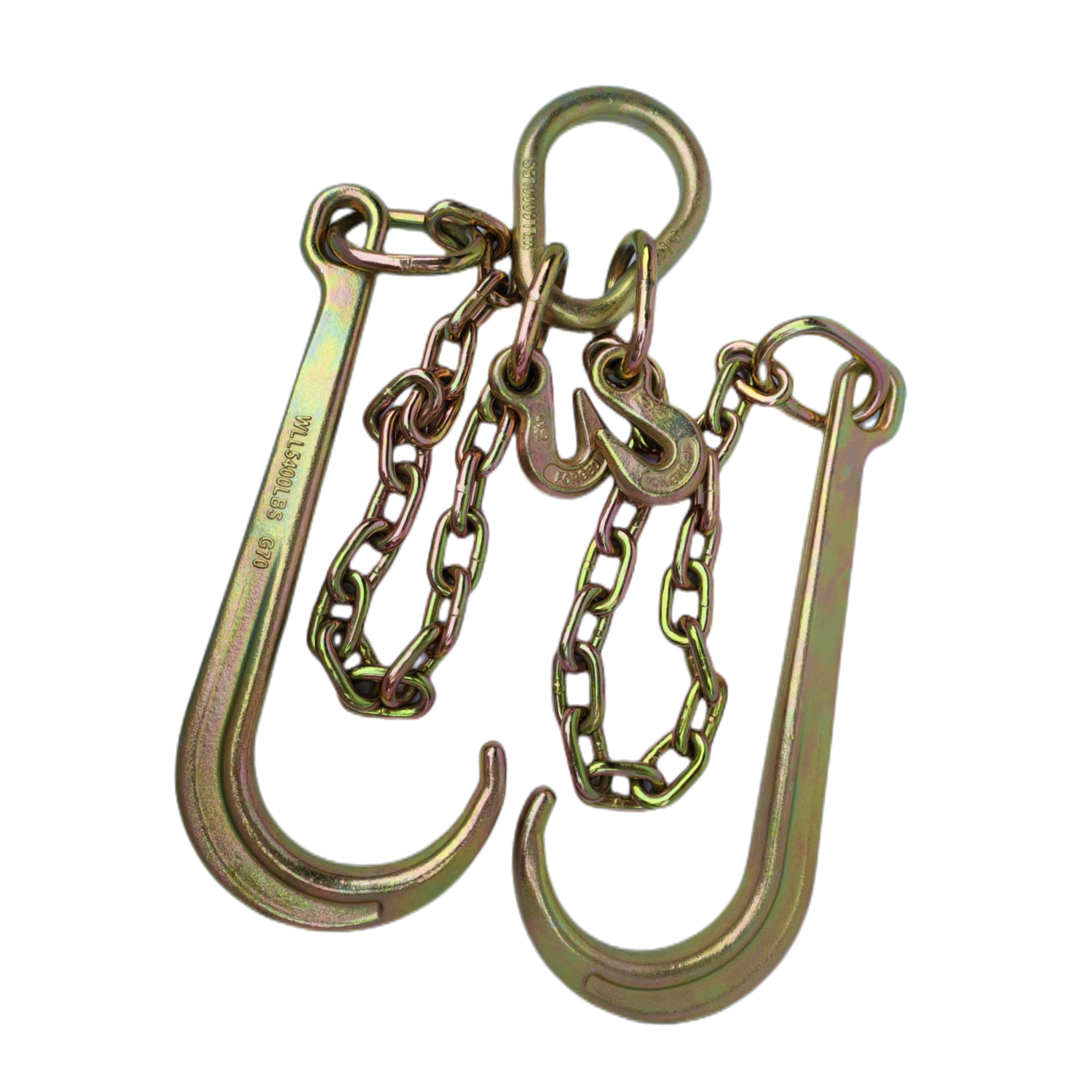

G70 Truck Tow V Chain with J Hooks

Gostern G70 Truck Tow V Chain with J Hooks is manufactured from premium Grade 70 alloy steel with high tensile strength, excellent wear resistance and V-bridle configuration. This chain is heat treated, proof tested and features a gold chromate / yellow zinc plated finish for superior corrosion resistance. The V-bridle design consists of two legs with 15-inch J hooks featuring safety latches, connected by a center pear link or grab hook assembly that allows for easy length adjustment. Available in 5/16" and 3/8" chain sizes with leg lengths from 2 to 6 feet, this chain is widely used for flatbed towing, wrecker recovery, rollback trucks, and auto transport applications. Working load limits range from 4,700 lbs to 5,400 lbs depending on chain size and configuration.
Availability:
Quantity:
  • ZS0802

  • Gostern Rigging

  • ZS080213

Product Name
V chain with two J tow hooks
Grade
G70
Material
Alloy steel
Surface
Yellow chromate coating
Length
Can be customized
End Fittings
15" 5400lbs J hook
Chain
5/16"
Pear link
3/4"
Eye grab hook
5/16"
W.L.L.
4700lbs

G70 Truck Tow V Chain with J Hooks

Gostern G70 Truck Tow V Chain with J Hooks is manufactured from premium Grade 70 alloy steel with high tensile strength, excellent wear resistance and V-bridle configuration. This chain is heat treated, proof tested and features a gold chromate / yellow zinc plated finish for superior corrosion resistance.

This V Bridle Tow Chain features two legs with 15-inch J Hooks with safety latch, a center pear link or grab hook assembly for easy length adjustment . Widely used as G70 Transport Chain for flatbed towing, as Recovery V Chain for wrecker and rollback trucks, and as Truck Towing Chain for auto transport and heavy equipment recovery. Available in 5/16 Inch G70 Bridle Chain, 3/8 inch and other custom sizes, with leg lengths of 2 feet, 3 feet, 6 feet, and custom options available. The V-bridle design provides balanced pulling force when attached to multiple secure points on the vehicle .

Working Load Limit (WLL): 4,700 lbs (5/16") to 5,400 lbs (3/8") at 60° included angle . with breaking strength approximately 4 times the WLL.

Important Note: Grade 70 transport chains are NOT to be used for overhead lifting or hoisting applications. These chains are specifically designed for vehicle towing, recovery, and cargo securement only.


J型钩拖车链-1


We support Custom Length Tow Chain, OEM, ODM and customized hook configurations to meet different towing requirements.
