ZS0801
Gostern Rigging
ZS080110

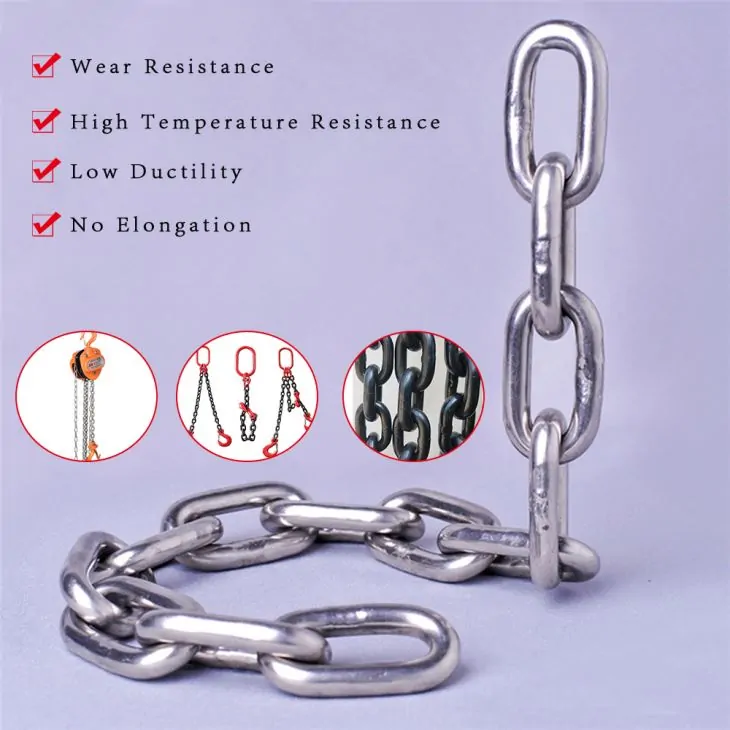

304 Stainless Steel Lifting Chain
Gostern's 304 Stainless Steel Lifting Chain is engineered for demanding lifting applications where corrosion resistance and high strength are critical. As a premium G80 304 Stainless Steel Chain, it delivers exceptional durability with ≥800MPa breaking strength and 4:1 safety factor, fully compliant with EN818-2 304 Lifting Chain and GB/T 20946 304 Chain standards.
Whether you need a 6mm 304 Stainless Steel Lifting Chain for light duty or larger diameters for heavy loads, our 304 Stainless Steel Hoist Chain provides reliable performance for overhead lifting and load securement.
As a Marine Grade 304 Lifting Chain, it offers excellent resistance to saltwater, humidity, and marine atmospheres. The Corrosion Resistant 304 Chain construction also makes it ideal for chemical plants, food processing facilities, and outdoor operations where rust is a concern.
For demanding industrial environments, our Heavy Duty 304 Stainless Steel Chain handles the toughest lifting tasks with confidence. Need a specific length? We offer Custom Length 304 Lifting Chain from 1m to 100m to meet your exact requirements.
Available in 6mm, 8mm, 10mm, and 13mm sizes. Contact Gostern for a quote or to discuss your custom requirements.
| Diameter (mm) | Pitch (mm) | Width (mm) | W.L.L. (T) | Weight (kg/m) | Test Load (T) | Min BF (T) | ||
| d | Tolerance | p | Min a | Max b | ||||
| 6 | ±0.2 | 18 | 7.8 | 22.2 | 0.8 | 0.78 | 1.6 | 3.2 |
| 7 | ±0.3 | 21 | 9.1 | 25.9 | 1.2 | 1.1 | 2.4 | 4.8 |
| 8 | ±0.3 | 24 | 10.4 | 29.6 | 1.6 | 1.4 | 3.2 | 6.4 |
| 9 | ±0.4 | 27 | 11.7 | 33.3 | 1.8 | 1.8 | 3.6 | 7.2 |
| 10 | ±0.4 | 30 | 13 | 37 | 2 | 2.2 | 4 | 8 |
| 12 | ±0.5 | 36 | 15.6 | 44.4 | 2.4 | 3.3 | 4.8 | 9.6 |
| 13 | ±0.5 | 39 | 16.9 | 48.1 | 3.3 | 3.8 | 6.6 | 13.2 |
| 14 | ±0.6 | 42 | 18.2 | 51.8 | 3.8 | 4.4 | 7.6 | 15.2 |
| 16 | ±0.6 | 48 | 20.8 | 59.2 | 5 | 5.7 | 10 | 20 |
| 18 | ±0.9 | 54 | 23.4 | 66.6 | 6.3 | 7.1 | 12.6 | 25.2 |
| 20 | ±1 | 60 | 26 | 74 | 7.8 | 9 | 15.6 | 31.2 |
| 22 | ±1.1 | 66 | 28.6 | 81.4 | 8.4 | 10.5 | 16.8 | 33.6 |
| 24 | ±1.2 | 72 | 31.2 | 88.8 | 9.6 | 12.5 | 19.2 | 38.4 |
| 26 | ±1.3 | 78 | 33.8 | 96.2 | 11.8 | 15.5 | 23.6 | 47.2 |
Remark:
1. Before using the chain and chain rigging, please see the working load and application scope on the sign. Overload is strictly prohibited.
2. In normal use, the lifting angle is the key to affecting the load, the maximum included Angle of lifting shall not exceed 120 degrees, otherwise local overload of chain rigging will be caused.
3. Irregular connecting parts are prohibited to connect the chains.
4. The lifting chain is forbidden to be directly hung on the members of the crane hook or wound on the hook.
5. Temperature has a certain influence on the use of chain rigging.
6. The lifting point of the lifting hook is required to be on the same plumb line with the heavy lifting center, so that the lifting weight is in a stable and balanced state, to prevent the lifting from sliding or capsizing.
7. between the chain is prohibited to twist, twist, knot, adjacent chain activities should be flexible.
8. When lifting heavy objects, rise, fall, and stop slowly and steadily. Pay attention to the objects being lifted steadily and avoid impact load.
9. Do not try to force the chain rigging from under the weight or allow the weight to roll over the chain.
10. The chain shall be cleaned and tested after use, and the storage place shall be ventilated, dry, and free of corrosive gases.
