ZS0801
Gostern Rigging
ZS080112

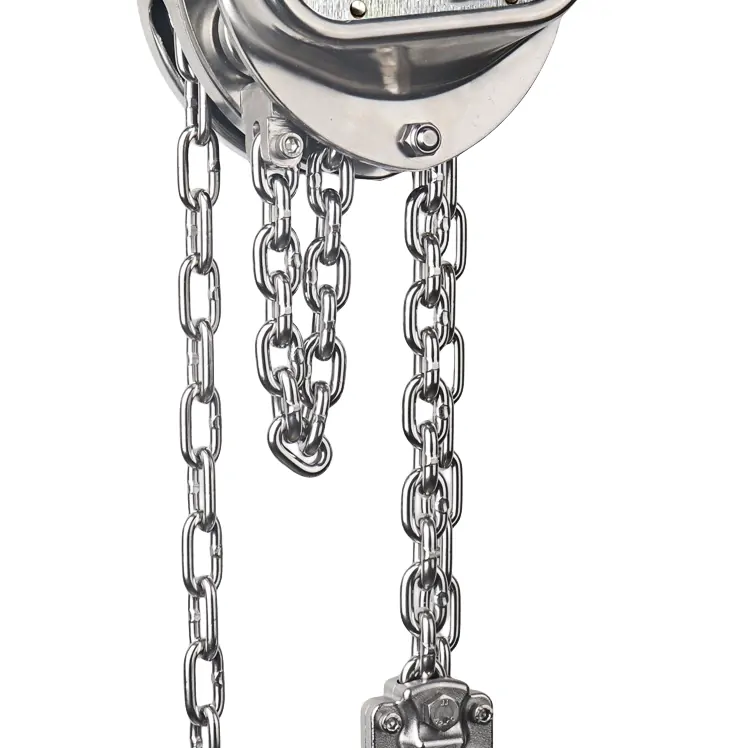

Gostern Stainless Steel High Precision Hoist Chain is made of premium 304 stainless steel material with high tensile strength, excellent corrosion resistance and exceptional dimensional accuracy. It is precision manufactured and strictly tested to meet EN818-2 Precision Hoist Chain and GB/T 20946 Stainless Steel Chain standards, with stable performance and safe load capacity.
This G80 Precision Stainless Steel Chain features wear resistance, rust proof and high accuracy structure, widely used as Marine Grade Precision Hoist Chain in shipyards, as Corrosion Resistant Precision Chain in chemical plants, and as High Accuracy Lifting Chain for automated hoisting systems. Available in 4mm Stainless Steel Precision Chain, 6mm, 8mm and other custom sizes, it is the ideal choice for Stainless Steel High Precision Hoist Chain and Stainless Steel Overhead Hoist Chain applications.
Specifications
Standard: GB/T20947-2009
Safety ratio: 4:1
Material: 304, 316L
Application range : Fine tolerance hoist chain
Surface treatment: polished
Diameter (mm) | Pitch (mm) | Width (mm) | W.L.L | Weight | Test Load | Min BF | |||
d | tolerance | p | tolerance | min a | max b | ||||
3 | ±0.2 | 9 | +0.18 | 3.6 | 10.2 | 0.25 | 0.2 | 0.5 | 1.00 |
4 | ±0.2 | 12 | +0.25 | 4.8 | 13.6 | 0.44 | 0.35 | 0.88 | 1.76 |
5 | ±0.2 | 15 | +0.3 | 6 | 17 | 0.7 | 0.55 | 1.4 | 2.80 |
6 | ±0.2 | 18 | +0.4 | 7.2 | 20.4 | 0.8 | 0.78 | 1.6 | 3.20 |
6.3 | ±0.2 | 19 | +0.4 | 7.2 | 20.4 | 0.9 | 0.85 | 1.8 | 3.60 |
7.1 | ±0.3 | 21 | +0.4 | 8.4 | 23.8 | 1.2 | 1.1 | 2.4 | 4.80 |
8 | ±0.3 | 24 | +0.5 | 9.6 | 27.2 | 1.6 | 1.4 | 3.2 | 6.40 |
9 | ±0.4 | 27 | +0.5 | 10.8 | 30.6 | 1.8 | 1.8 | 3.6 | 7.20 |
10 | ±0.4 | 30 | +0.6 | 12 | 34 | 2 | 2.2 | 4 | 8.00 |
11.2 | ±0.4 | 34 | +0.7 | 13.2 | 37.4 | 2.2 | 2.6 | 4.4 | 8.80 |
12.5 | ±0.5 | 38 | +0.8 | 14.4 | 40.8 | 3.1 | 3.4 | 6.2 | 12.40 |
13 | ±0.5 | 39 | +0.8 | 15.6 | 44.2 | 3.3 | 3.8 | 6.6 | 13.20 |
14 | ±0.6 | 42 | +0.8 | 16.8 | 47.6 | 3.8 | 4.4 | 7.6 | 15.20 |
16 | ±0.6 | 48 | +0.9 | 19.2 | 54.4 | 5 | 5.7 | 10 | 20.00 |
Attention
1. The overloading is not allowed.
2. Knoting or twisting are all forbidden.
3. loading using the top of the lifting hook is not allowed.
4. Working temperature: -40℃~+200℃.
Contact us
We support Custom Length Precision Chain, OEM, ODM and customized diameter services to meet different working demands.
