Specification:
Weld On Pivoting D Link
1.Material: alloy steel
2.Grade: G80
3.Process: Drop forged
4.Surface:powder-coated
5.WLL:1-15t
6.Usage: Lifting fittings

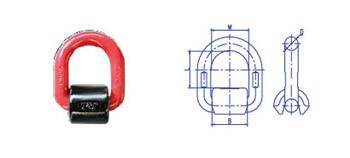

Weld on pivoting D link
WLL | D | W | L | B | Weight |
t | mm | mm | mm | mm | kg |
2 | 14 | 41.5 | 42 | 40 | 0.5 |
8 | 25 | 70 | 73 | 60 | 2.1 |
15 | 34 | 97 | 93 | 90 | 5.8 |

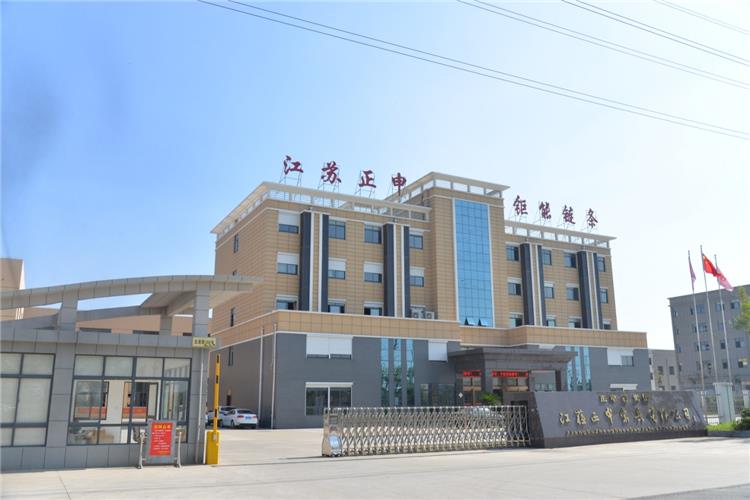

Factory
We are a professional manufacturer from Jiangsu, China. Our main products: various types of steel wire ropes, wire rope slings, nylon rope slings, special webbing slings, safety nets, safety belts, lifting chains, lifting beam, lifting clamp, etc. all parameters can be customized.
Certificate
