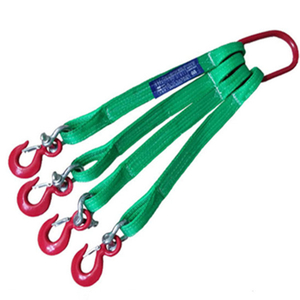

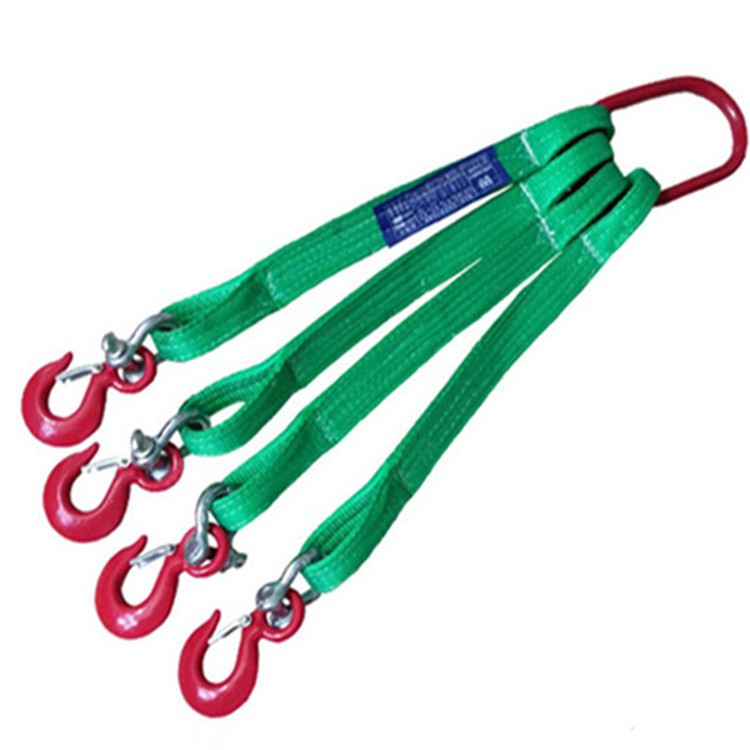

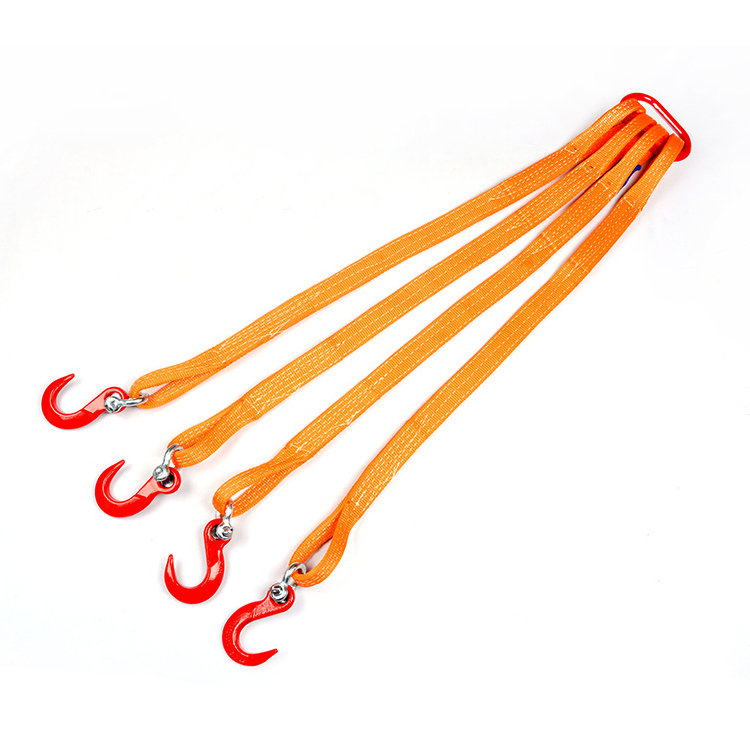

The 4 legs webbing slings consists of main lifting link, shackle, lifting webbing slings and lifting hooks. Also can be optimized according to customer’s requirements.
Specifications
0-degree angle | 45-degree angle | 60-degree angle | 45-degree angle | 60-degree angle |
1 | 1.4 | 1 | 2.1 | 1.5 |
500 | 700 | 500 | 1050 | 750 |
1000 | 1400 | 1000 | 2100 | 1500 |
2000 | 2800 | 2000 | 4200 | 3000 |
3000 | 4200 | 3000 | 6300 | 4500 |
4000 | 5600 | 4000 | 8400 | 6000 |
5000 | 7000 | 5000 | 10500 | 7500 |
6000 | 8400 | 6000 | 12600 | 9000 |
8000 | 11200 | 8000 | 16800 | 12000 |
10000 | 14000 | 10000 | 21000 | 15000 |
12000 | 16800 | 12000 | 25200 | 18000 |
15000 | 21000 | 15000 | 31500 | 22500 |
20000 | 28000 | 20000 | 42000 | 30000 |
25000 | 35000 | 25000 | 52500 | 37500 |
30000 | 42000 | 30000 | 63000 | 45000 |
Attention:
1. Please pay attention to the relationship between the angle and the tonnage during use
2. Safety factor 4:1, specific 5:1 or 6:1. Use within the safety factor range.
3. If the webbing sling is damaged during use, it cannot be used again.
4. Avoid the impact or vibration of the load.

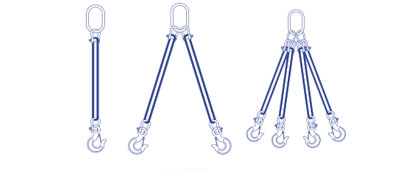

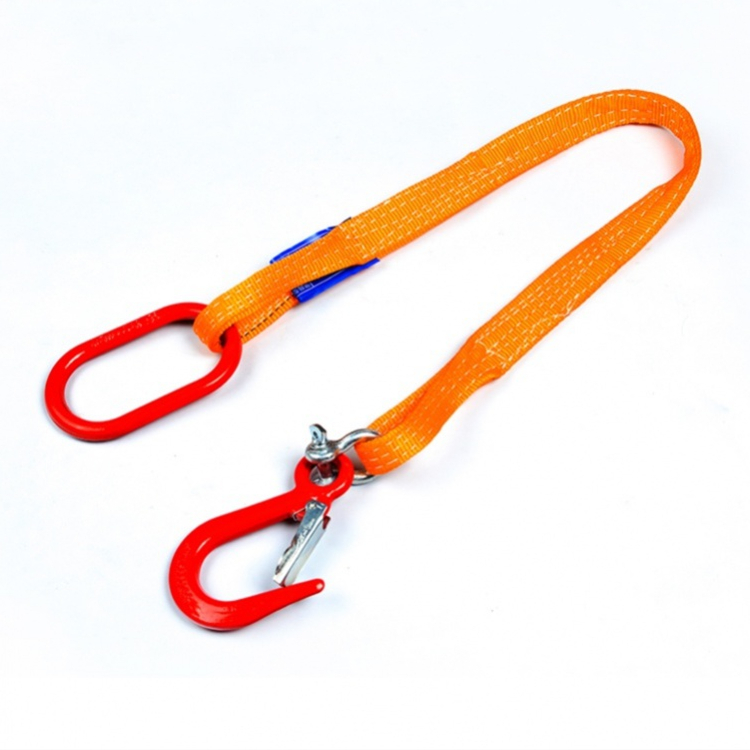

5. Single leg webbing slings the hanging point must be vertically above the center of gravity of the object to be lifted.
6. Double legs webbing slings the hanging points should be on both sides of the cargo, and the hooks are above the center of gravity of the object to be lifted.
