Wire Rope Pear Socket

Wire Rope Pear Socket

Share to:

Wire Rope Pear Socket

Wire rope pear sockets are termination components that are permanently fixed to the ends of wire rope as part of an anchoring system.

Wire Rope Dia.:	10mm-11mm 12mm-13mm 14mm-15mm 16mm-17mm 18mm-19mm 20mm-21mm 22mm-24mm 25mm-27mm 28mm-30mm 31mm-33mm 34mm-36mm 37mm-39mm 40mm-42mm 43mm-45mm 46mm-48mm 56mm
Availability:

Quantity:



Inquire Add to Basket

Model:
ZS06
Brand:
Gostern Rigging
Code:
ZS0605

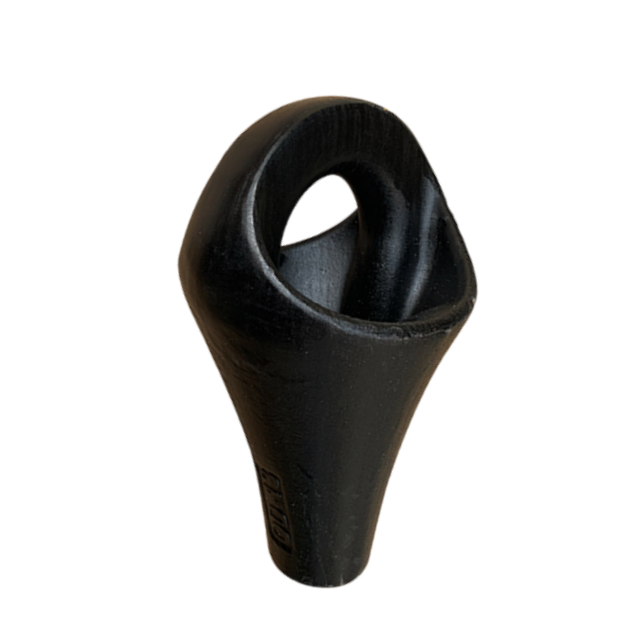

Wire Rope Pear Socket

钢丝绳梨形接头图纸

wire rope Dia.	Dimensions (mm)
(mm)	A	B	C	D	E	F	H	I	R
Φ10-Φ11	69	48	20	22	12	12	24	12	195
Φ12-Φ13	79	56	22	25	15	14	25	14	195
Φ14-Φ15	91	64	24	28	17	16	29	16	220
Φ16-Φ17	103	70	26	31	19	18	31	18	220
Φ18-Φ19	114	84	30	33	21	19	38	20	245
Φ20-Φ21	129	84	33	36	23	21	42	22	310
Φ22-Φ24	140	100	37	40	26	23	44	26	310
Φ25-Φ27	158	100	39	43	28	25	48	29	350
Φ28-Φ30	171	120	40	45	31	27	56	31	350
Φ31-Φ33	190	120	45	52	32	29	58	35	445
Φ34-Φ36	203	142	50	55	36	31	64	37	445
Φ37-Φ39	225	142	51	60	39	35	68	40	495
Φ40-Φ42	242	166	59	63	43	37	70	43	555
Φ43-Φ45	265	166	62	68	47	41	72	47	595
Φ46-Φ48	288	166	66	75	49	43	80	51	595
Φ56	340	220	75	84	60	54	90	59	880
