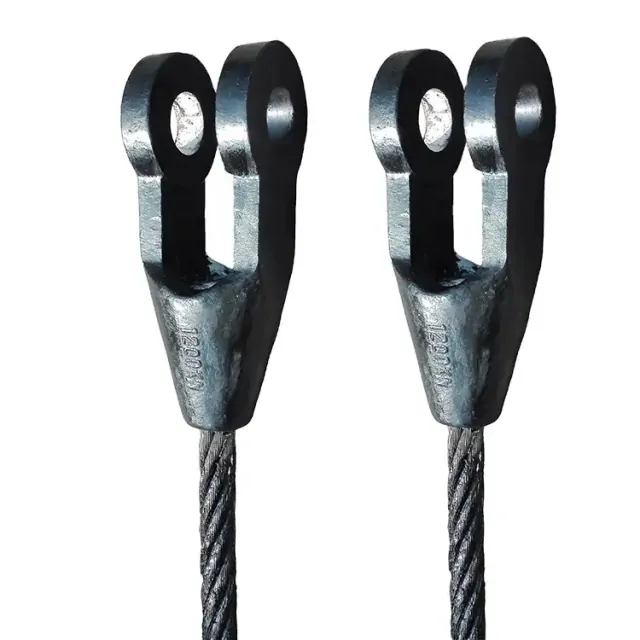

G416 Open Spelter Socket

Wire rope spelter sockets are termination components that are permanently fixed to the ends of wire rope as part of an anchoring system.
Model:
1/4"
5/16"-3/8"
7/16"-1/2"
9/16"-5/8"
3/4"
7/8"
1"
1 1/8"
1 1/4"-1 3/8"
1 1/2"
1 5/8"
1 3/4"-1 7/8"
2"-2 1/8"
2 1/4"-2 3/8"
2 1/2"-2 5/8"
2 3/4"-2 7/8"
3"-3 1/8"
3 1/4"-3 3/8"
3 1/2"-3 5/8"
3 3/4"-4"
Availability:
Quantity:
Inquire Add to Basket

  • ZS06

  • Gostern Rigging

  • ZS0601

G416 Open Spelter Socket


The open spelter sockets are integral anywhere wire rope sling is used for support or movement such as suspension bridge, roof, and oil rig construction scenarios that require rigging tow ropes, anchor ropes, and cables.


open spelter socket-drawing

Model Wire Rope Dia. A C D F G H J L M N Weight
(inch) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (kg/pc)
1/4 Φ6-Φ7 116 19 17 10 18 40 57 40 33 9 0.50
5/16-3/8 Φ8-Φ10 123 21 21 13 21 43 57 45 38 11 0.60
7/16-1/2 Φ11-Φ13 142 25 25 15 24 48 64 51 48 13 1.00
9/16-5/8 Φ14-Φ16 172 32 30 18 28 60 76 64 57 14 1.60
3/4 Φ18 202 38 35 21 32 70 89 76 67 16 2.60
7/8 Φ20-Φ22 235 44 41 24 38 82 102 89 80 20 4.40
1 Φ24-Φ26 269 51 51 29 45 95 114 102 95 22 7.00
1 1/8 Φ28 303 57 57 32 51 107 127 117 105 25 9.80
1 1/4 - 1 3/8 Φ32-Φ36 335 64 64 38 57 121 140 127 121 29 14.10
1 1/2 Φ38 384 76 70 41 70 133 152 152 137 30 21.40
1 5/8 Φ40 413 76 76 44 76 142 165 165 146 33 25.00
1 3/4 - 1 7/8 Φ44-Φ48 464 89 89 51 80 167 191 178 165 40 37.20
2 - 2 1/8 Φ52-Φ54 546 102 96 57 96 193 216 228 178 46 58.50
2 1/4 - 2 3/8 Φ56-Φ60 597 114 108 64 102 219 228 254 197 54 75.80
2 1/2 - 2 5/8 Φ64-Φ66 654 127 121 73 114 247 248 273 216 60 114.30
2 3/4 - 2 7/8 Φ70-Φ74 692 133 127 79 124 267 279 279 229 73 142.90
3 3 1/8 Φ76-Φ80 737 146 133 86 133 298 305 286 241 76 172.40
3 1/4 - 3 3/8 Φ82-Φ86 784 159 140 92 146 317 330 298 254 79 196.90
3 1/2 - 3 5/8 Φ88-Φ92 845 172 152 99 165 337 356 318 274 83 255.40
3 3/4 - 4 Φ95-Φ102 921 191 178 108 184 369 381 343 318 89 355.20


Wire rope open spelter sockets should be matched correctly to the size and material of wire rope and professionally installed, they form part of a strong mechanism for lifting and supporting heavy loads.


Product Name
Open Spelter Socket
Material
Alloy Steel
Surface
Galvanized
Black
Process
Forged
Cast
