Forged Closed Swage Socket

It is forged from special bar quality carbon steel, suitable for cold forming, Swage Socket terminations have an efficiency rating of 100% based on the strength of the wire rope.
Rope Size:
6mm
8mm
9-10mm
11-12mm
13mm
14mm
16mm
18-20mm
22mm
24-26mm
28mm
32mm
34-36mm
38-40mm
44mm
48-52mm
Availability:
Quantity:
Inquire Add to Basket

  • ZS06

  • Gostern Rigging

  • ZS0604

Closed Swage Socket

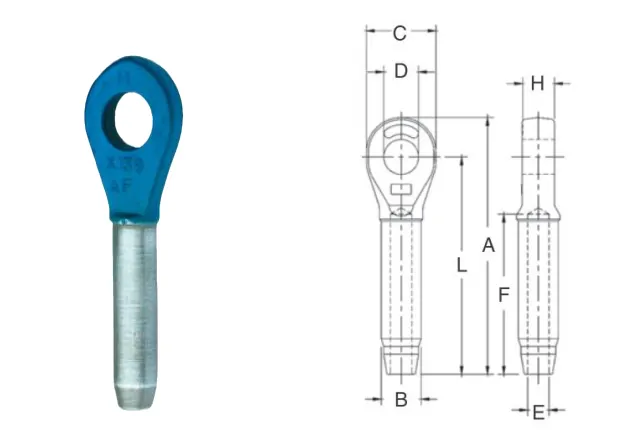

闭式压制索节图纸


Wire Rope

Dia. (mm)

 Before Swage Dimensions (mm) Weight
(kg/pc)

After Swage

Max. Dim.

(mm)
A B C D E F H L
6 109 12.7 35.1 19.1 6.85 54 12.7 89 0.15 11.70
8 138 19.6 41.1 22.4 8.65 81 17 114 0.34 18.00
9-10 138 19.6 41.1 22.4 10.4 81 17 114 0.33 18.00
11-12 176 24.9 51 26.9 12.2 108 21.8 146 0.64 23.10
13 176 24.9 51 26.9 14 108 21.8 146 0.64 23.10
14 220 31.8 60.5 31.8 15.5 135 28.7 184 1.32 29.50
16 220 31.8 60.5 31.8 17 135 28.7 184 1.29 29.50
18-20 261 39.4 73 36.6 20.3 162 33.3 219 2.27 36.10
22 303 43.2 79 42.9 23.9 189 38.1 257 3.08 39.40
24-26 344 50.5 92 52.5 26.9 216 44.5 292 4.72 45.70
28 382 57 102 58.5 30.2 243 51 324 6.72 52.00
32 430 64.5 114 65 33.8 270 57 365 9.78 58.50
34-36 473 71 127 65 36.8 297 57 400 12.90 65.00
38-40 511 78 140 71.5 40.1 324 63.5 432 17.30 71.50
44 598 86 159 90.5 47.2 378 76 508 23.10 77.50
48-52 702 100 184 96.5 53.5 432 82.5 584 40.50 90.50
