Stainless Steel DIN 741 Clip Wire Rope Clamp

Material: SS304, SS316
Surface:  polished
Usage: Wire rope sling
Features: Anti-corrosion, anti-rust, high temperature resistance
Availability:
Quantity:
Inquire Add to Basket

  • ZS120602

  • Gostern Rigging

  • ZS120602-1

DIN741 Stainless Steel Wire Rope Clip

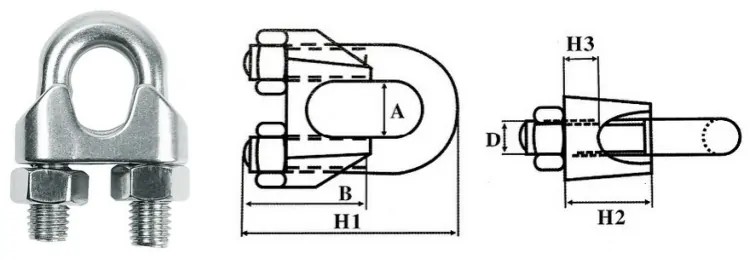

不锈钢钢丝绳卡头1_副本

SPEC Dimensions (mm) WEIGHT
mm A B D H1 H2 H3 kg/100pcs
2 4.37 9.89 3 17.5 9.15 4.26 0.701
3 5.53 9.56 4 20 9.67 5.46 1.108
4 6.49 11.65 4 21.6 9.85 4.01 1.214
5 7.25 16.12 5 27.5 10.41 3.98 1.518
6 7.12 17.62 6 32.5 11.82 5.95 2.905
8 9.54 20.02 6 34 15.44 5.83 3.614
10 11.24 22.71 8 44.1 16.57 5.95 6.223
12 15.88 29.35 10 51 17.99 6.61 11.809
14 15.66 29.35 10 56 21.82 8.34 12.024
16 18.01 29.55 12 65 24.69 8.43 20.106
18 20.07 29.85 12 80 29.72 9.65 23.815
20 22.94 32.44 12 73 30.82 10.51 24.756
22 24.12 32.56 12 87.3 32.44 11.87 34.687
24 26.13 33.41 12 76 33.76 12.87 37.195
26 27.36 54.12 14 108 37.29 16.44 53.287
30 33.19 56.92 16 110 43.19 13.44 65.458
32 34.12 57.25 16 112.1 44.25 14.26 67.627
