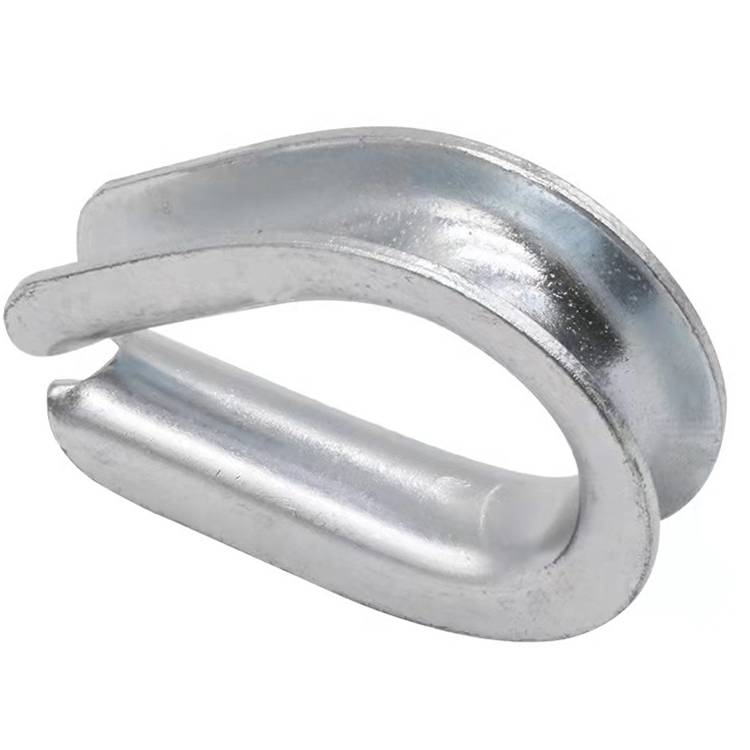

G414 Wire Rope Thimble

Material: Q235 SS304, SS316
Surface: Galvanized, Hot dip galvanized, plain
Usage: Wire rope sling
Availability:
Quantity:
Inquire Add to Basket

  • ZS1204

  • Gostern Rigging

  • ZS120403

G414 Wire Rope Thimble


G414套环_副本

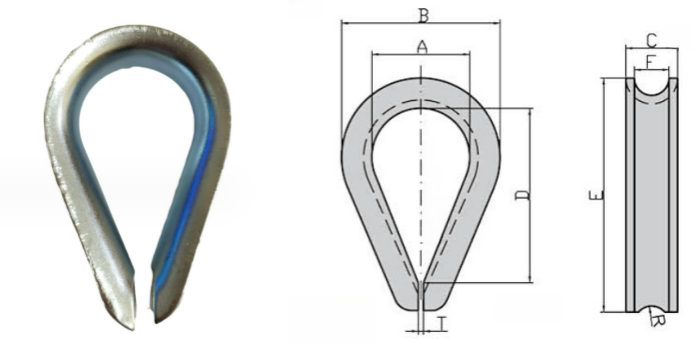

SPEC
DIMENSIONS (mm) WEIGHT
inch mm A B C D T F R E kg/pc
1/4 6-7 22 38 10 41 3 6.3 3 55 0.026
5/16 8 27 46 13 48 4 8 3 64 0.05
3/8 9-10 29 54 16 54 5 9.5 4 73 0.1
7/16 11 32 60 19 60 6 11.1 4.5 82 0.13
1/2 13 38 70 21 70 7 13 5.5 92 0.22
9/16 14 38 68 23 70 7 14.3 5.5 92 0.22
5/8 16 44 79 25 82 8 16 7 108 0.265
3/4 19 51 97 31 95 9 19.1 8 127 0.53
7/8 22 57 108 35 108 10 22.3 9 140 0.67
1 24-26 64 125 39 115 11 25.4 10 152 0.93
1-1/8 - 1-1/4 28-32 73 149 47.6 130 12 32 11 177 1.44
1-1/4 - 1-3/8 32-35 89 173 57 165 13 35 12 230 3.71
1-3/8 - 1-1/2 35-38 89 181 66.6 158 14 38 13 229 4.2
1-5/8 42 102 206 70 203 15 42 14 285 6
1-3/4 45 114 216 73 228 16 45 15 309 7
1-7/8 - 2 48-50 152 263 79 305 18 51 15 384 9.25
2-1/4 57 178 302 92 356 20 58 16 435 18.4
2-1/2 64 185 315 105 370 22 66 17 460 26.2
2-3/4 70 210 344 110 420 24 70 18.5 535 27.4
3 76 229 378 125 458 25 80 19 590 39
3-1/4 82 235 384 127 478 26 84 20 630 41.5
3-1/2 90 240 390 132 500 26 92 22 630 48
4 102 250 400 145 530 26 105 22 630 55
