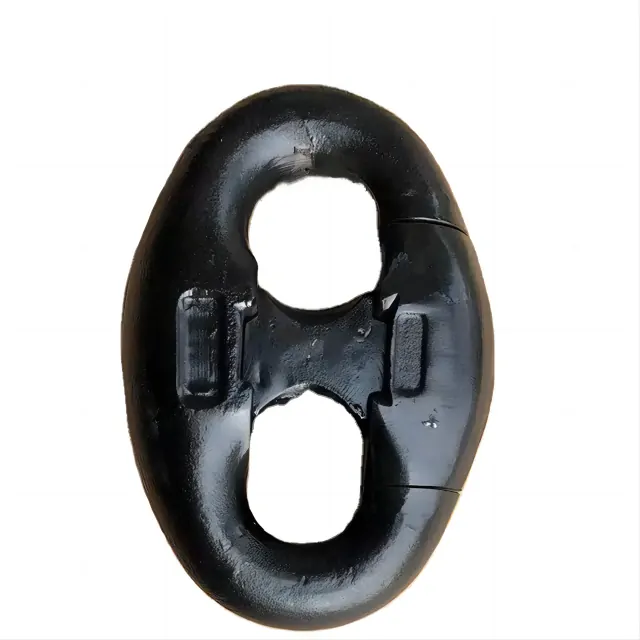

C Type Quick Release Shackle

C type quick release shackle is generally used in bridge-type grab cranes under the end of the wire rope pear-shaped rope sleeve or connecting parts between the lifting chain, it is widely used in the quick disassembly of grab, lifting hook, spreader beam, and other quick replacement, in combination with the pear-shaped socket, it can improve the lifting height through the wide groove pulley.
S.W.L.:
1.5 Ton
2.5 Ton
3 Ton
3.5 Ton
4 Ton
5 Ton
6.3 Ton
8 Ton
10 Ton
12.5 Ton
14 Ton
16 Ton
21 Ton
25 Ton
32 Ton
45 Ton
Availability:
Quantity:
Inquire Add to Basket

  • ZS06

  • Gostern Rigging

  • ZS0606

C Type Quick Release Shackle


C型快速卸扣图纸


SWL
(Ton)		 DIMENSION (mm)
d L B H A C
1.5 13 78 52 19.5 15 17
2.5 15 90 60 22.5 17 20
3 17 12 68 25.5 19 22
3.5 19 114 76 30 21 26
4 21 126 84 33 23 27
5 23 138 92 35 26 30
6.3 25 150 100 38 28 32
8 27 162 108 41 31 35
10 29 174 116 44 34 37
12.5 32 192 128 48 37 41
14 35 210 140 53 40 44
16 38 228 152 57 43 48
21 41 246 164 62 46 51
25 44 264 176 68 50 54
32 47 282 188 72 52 58
45 56 334 220 84 62 66
