Product description：

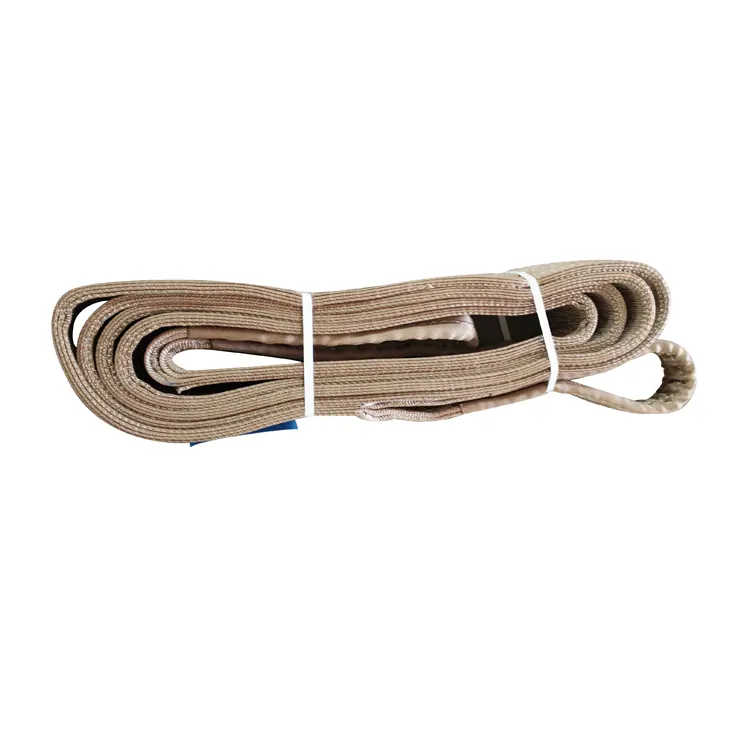

The polyester webbing sling is used for lifting heavy loads it's made of high-strength polyester and consists of 2-4 layers of webbing.
The webbing slings are specially designed for safe lifting, it is lightweight but extremely tough, and the flexibility can reduce shock while loading.
Product parameters：
Standard: EN1492-1, ISO4878
The products comply with CE and GS safety requirements
Material: High-strength polyester (100%PES)
Safety factor: 4:1, 5:1, 6:1, 7:1
Length: Can be customized
Working load: 6T
Elongation: ultimate working elongation <2% Breaking elongation <12%
Temperature range: - 40°C - 100 °C
Layer: 2-4 (special specifications can be customized)
Eye and eye webbing sling | ||||||
Art. No. | WLL | Width (mm) | Min Length | Max Length | Eye Length | |
(kg) | 5:1/6:1 | 7:1 | (m) | (m) | (mm) | |
ZS0102K-1 | 1000 | 25 | 30 | 0.8 | 100 | 300 |
ZS0102K-2 | 2000 | 50 | 60 | 1 | 100 | 300 |
ZS0102K-3 | 3000 | 75 | 90 | 1 | 100 | 350 |
ZS0102K-4 | 4000 | 100 | 120 | 1.5 | 100 | 500 |
ZS0102K-5 | 5000 | 125 | 150 | 1.5 | 100 | 550 |
ZS0102K-6 | 6000 | 150 | 180 | 1.5 | 100 | 600 |
ZS0102K-8 | 8000 | 200 | 240 | 2 | 100 | 700 |
ZS0102K-10 | 10000 | 250 | 300 | 2 | 100 | 800 |
ZS0102K-12 | 12000 | 300 | 300 | 2 | 100 | 900 |
Heavy eye type webbing sling | ||||||
Art. No. | WLL | Width (mm) | Min Length | Max Length | Eye Length | |
(kg) | 5:1/6:1 | 7:1 | (m) | (m) | (mm) | |
ZS0102K0-2 | 2000 | 25 | 30 | 1.5 | 100 | 350 |
ZS0102K0-4 | 4000 | 50 | 60 | 1.5 | 100 | 400 |
ZS0102K0-6 | 6000 | 75 | 90 | 1.5 | 100 | 450 |
ZS0102K0-8 | 8000 | 100 | 120 | 2 | 100 | 500 |
ZS0102K0-10 | 10000 | 125 | 150 | 2 | 100 | 550 |
ZS0102K0-12 | 12000 | 150 | 180 | 3 | 100 | 600 |
ZS0102K0-16 | 16000 | 200 | 240 | 3 | 100 | 700 |
ZS0102K0-20 | 20000 | 250 | 300 | 3 | 100 | 800 |
ZS0102K0-24 | 24000 | 300 | 300 | 3 | 100 | 900 |
Features：
1. Each webbing sling attaches an ID label, which bears all relevant information (including sling length, lifting capacity, date of manufacture, etc.)
2. Different color codes are used to indicate the limits of lifting webbing slings.
3. The webbing slings can be applied to a variety of lifting conditions
4. The webbing slings will not conduct electricity, so there is no risk of electric shock
6. The webbing slings are light and soft, easy to use in a small space.
Precautions：
1. Please avoid using in an acid or alkali environment
2. When lifting goods with sharp corners, edges, or rough surfaces, should use the webbing sling protector to avoid cuts.
3. Never use webbing slings with damages or defects.
4. Please check the WLL, length, and working position before using.
