Specifications
Technical Parameters
Model | BXC-2t | BXC-20t | BXC-50t | BXC-100t | BXC-150t | |
Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
Table Size (mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
Height(H) | 450 | 550 | 650 | 900 | 1200 | |
Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 200 | 2000 | |
Wheel Diameter (mm) | 270 | 350 | 500 | 600 | 600 | |
Running Speed (m/min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 | |
Battery Capacity | 180 | 180 | 330 | 440 | 600 | |
Battery Voltage | 24 | 48 | 48 | 72 | 72 | |
Running Time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 | |
Running Distance for One Charge(km) | 6.5 | 4.8 | 4 | 3.8 | 3.2 | |

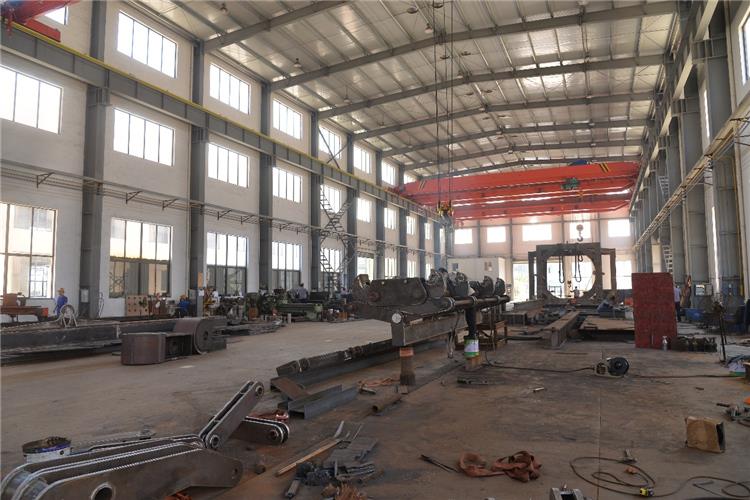

Workshop:
Our company has modern production factory and experienced production workers.Modern operation technology and strict supervision system guarantee the quality of products.
Certificate
Here comes our achievements ;
FAQ
Q1. Can I have a sample order for Container Cargo Lifting Beam ?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 2-3 days on Container Cargo Lifting Beam , mass production time needs 1-3 weeks for order quantity more than one container
Q3. Do you have any MOQ limit ?
A: Low MOQ, 1PC for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: Train and sea shipping both can provide. Shipping time depends on distance.
Q5: The type of grab and its span size, whether will affect the grab price?
A:The type of grab, such as the hook or double hook, will affect the price of the grab, because the type is different, then the corresponding price is also different. As for the span of the grab, it is also one of the factors affecting the price of the grab, so it will certainly have an impact.
Q6:Which is an important way to improve service life?
A:The important way to improve the service life of the grab bucket is to improve the abrasion resistance of the grab pin and shaft sleeve, and to improve the abrasion resistance of the blade of the bucket body
Q7:In the material, how should we choose and determine?
A:The selection of the material of the grab edge plate, generally speaking, is the use of high strength wear-resistant steel plate.
To contact us
Thank you for visiting our website, further questions please feel free to contact us. We will do our best to support you all the time.
