Specifications

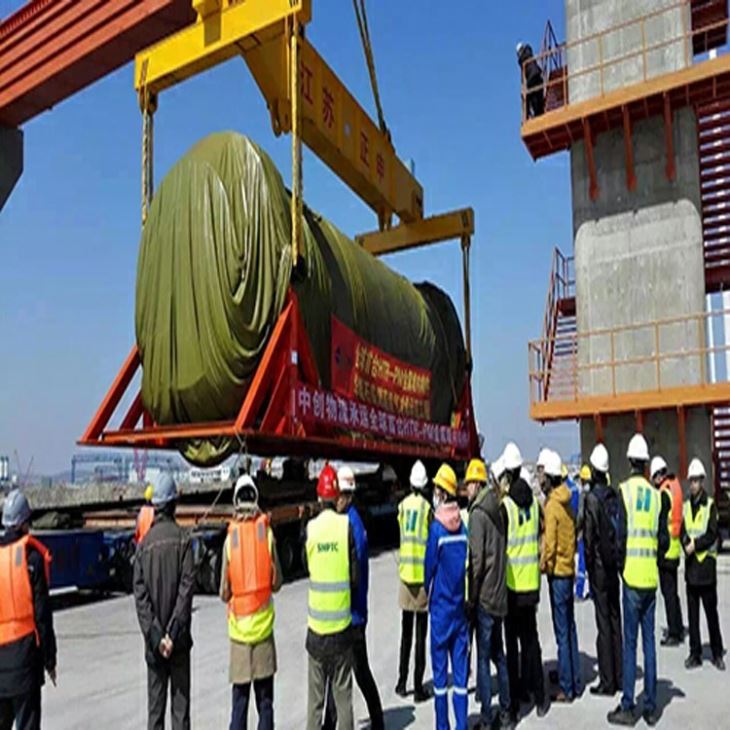

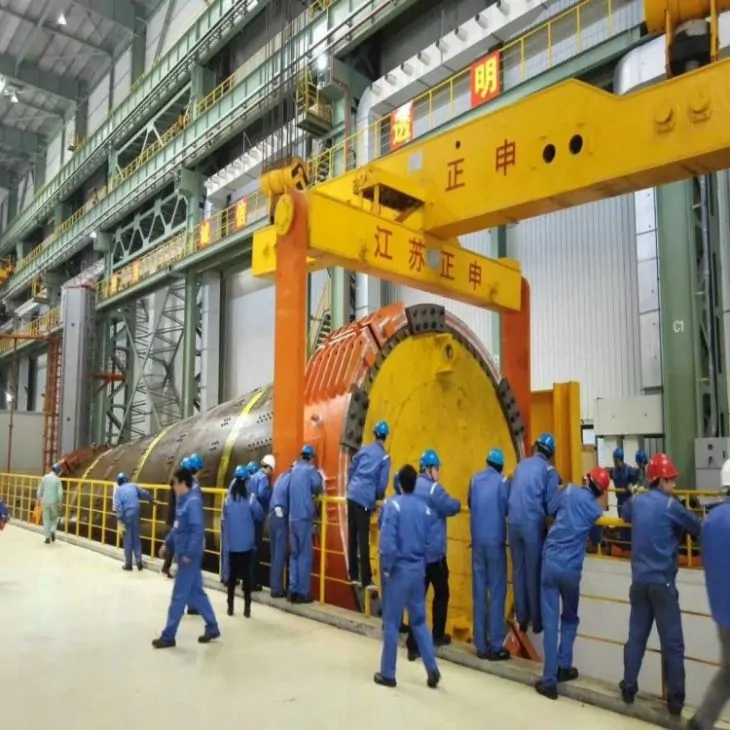

Lifting spreader beam (for reference)
Spreader beam are mainly used for dock loading and unloading, can be directly attached to the use of upper frames or head blocks.
20 feet/40 feet container spreader is designed for the handling of 20feet/40feet ISO container with single or double hook cranes,in ports or on vessels.The twistlocks are activated by landing and lifting the spread,from the container by the crane operator.No hydraulic or elecctric systems are needed.
Model | Lifting spreader beam | ||
Rated lifting load | 20-70 T | ||
Dead weight | ---T | ||
Surface Treatment of structures | |||
Pre-treatment of steel | Blasting , protective painting | ||
Painting of structure | Two coats of Epoxy zinc-rich primer, | ||
For operation with ISO standard 20'/40' containers | |||
Rated lifting load | 35t/40t | ||
Dead weight | 2t/3.5t | ||
Allowable load eccentricity | ±10% | ||
Spring stroke | 100mm | ||
Ambient temperature | -0ºC-+45ºC | ||
Twistlock mode | ISO floating twistlock,driven by a automatic spring | ||
Flipper device | No power,fixed flipper | ||
Application | Portal crane,gantary crane,crane in plant | ||
Certificate
We have achieved many awards both domestic and worldwide.Pls see our achievements on the C hook type clamp for coil lifting as bellow :

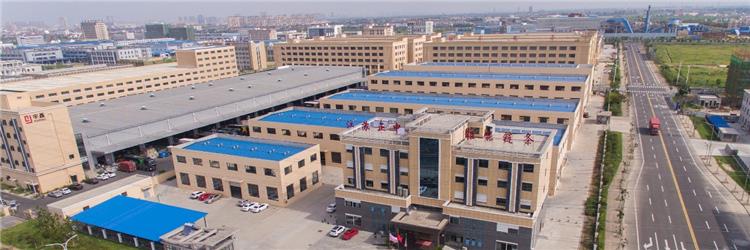

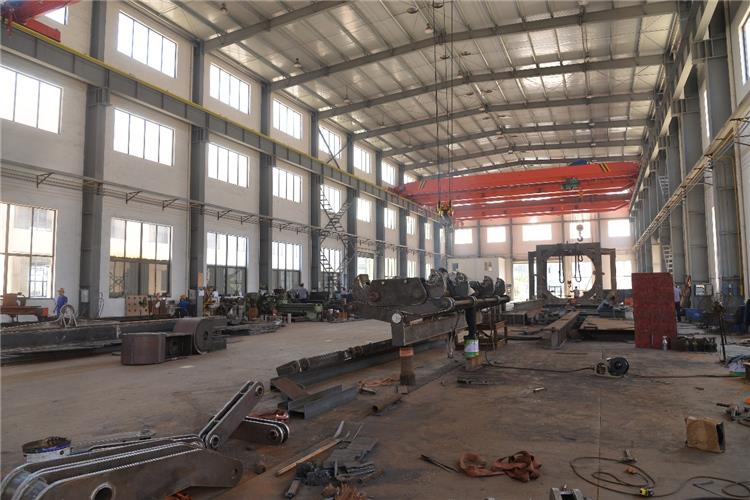

Company info
To contact us
Thank you for visiting our website, further questions please feel free to contact us. We will do our best to support you all the time.
