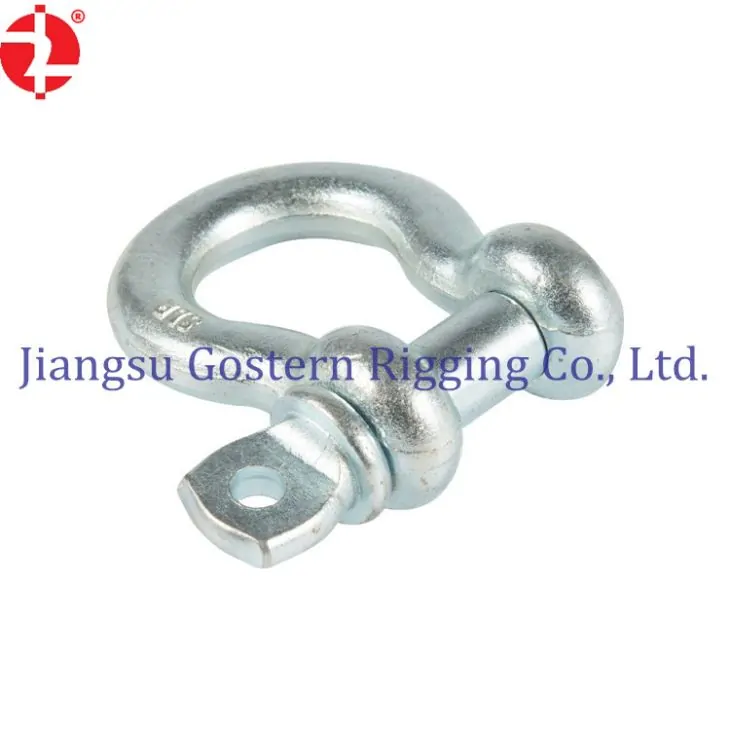

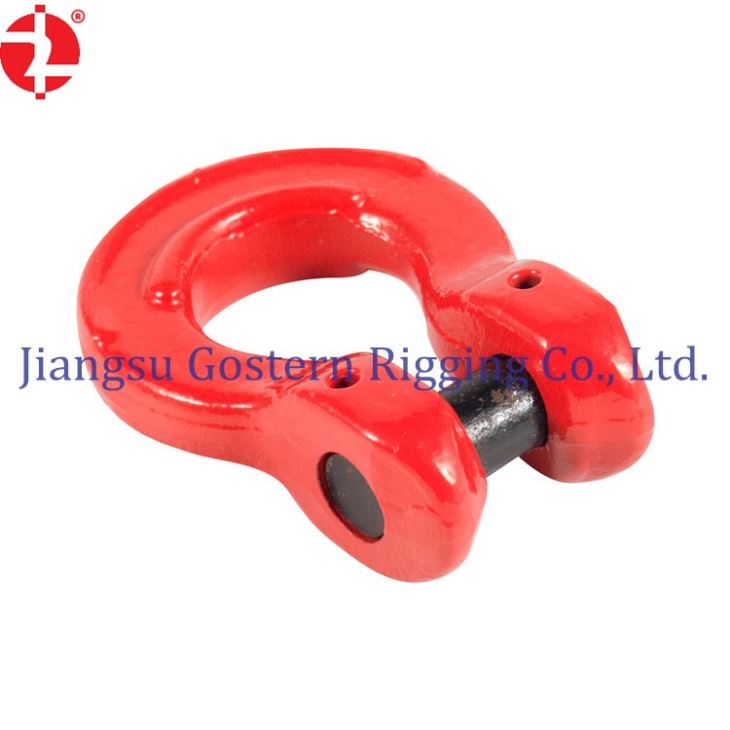

The bow shackle is a kind of connecting piece for lifting and pulling. At present, better shackles are generally made of alloy steel instead of ordinary carbon steel. The national standard shackle includes general lifting shackles, marine shackles, and ordinary shackles.
Specifications
Material: Carbon steel, Alloy steel, Stainless steel 304 or 316
Finish: Hot Dipped Galvanized, Electro Galvanized, Color Painted, High polished, Mirror Polished
Technology: Drop forged, Precision Casting
Size: Different size available
Packing: Gunny bag or carton and pallet / by customer requirements.
US type bow shackle G213
Size(in) | Working Load (t) | Dimension(mm) | Weight (kg/pc) | ||||||||
A | B | C | D | E | F | H | L | P | |||
1/2 | 2 | 20.6 | 16 | 47.8 | 12.7 | 33.3 | 30.2 | 83.3 | 58.7 | 71.1 | 0.36 |
5/8 | 3.25 | 26.9 | 19.1 | 60.5 | 16 | 42.9 | 38.1 | 106.4 | 74.7 | 89.7 | 0.76 |
3/4 | 4.75 | 31.8 | 22.4 | 71.4 | 19.1 | 50.8 | 45 | 126.2 | 88.9 | 103.4 | 1.23 |
7/8 | 6.5 | 36.6 | 25.4 | 84.1 | 22.4 | 57.9 | 53.1 | 148.1 | 102.4 | 119.6 | 1.79 |
1 | 8.5 | 42.9 | 28.7 | 95.3 | 25.4 | 68.3 | 60.5 | 166.9 | 119.1 | 134.9 | 2.57 |
1 1/8 | 9.5 | 46 | 31.8 | 108 | 28.7 | 73.9 | 68.3 | 189.7 | 131.1 | 149.9 | 3.75 |
1 1/4 | 12 | 51.6 | 35.1 | 119.1 | 31.8 | 82.6 | 76.2 | 209.6 | 146.1 | 165.4 | 5.31 |
1 3/8 | 13.5 | 57.2 | 38.1 | 133.4 | 35.1 | 92.2 | 84.1 | 232.7 | 162.1 | 183.1 | 7.18 |
1 1/2 | 17 | 60.5 | 41.4 | 140.1 | 38.1 | 98.6 | 92.2 | 254 | 174.8 | 196.3 | 9.43 |
1 3/4 | 25 | 73.2 | 50.8 | 177.8 | 44.5 | 127 | 106.4 | 313.4 | 225 | 229.8 | 15.38 |
2 | 35 | 82.6 | 57.2 | 196.9 | 50.8 | 146.1 | 122.2 | 347.5 | 253.2 | 264.4 | 23.7 |
2 1/2 | 55 | 104.9 | 70 | 266.7 | 66.5 | 184.2 | 144.5 | 453.1 | 326.9 | 344.4 | 44.57 |
3 | 85 | 127 | 82.6 | 330.2 | 76.2 | 200.2 | 165.1 | 546.1 | 364.7 | 419.1 | 69.85 |
3 1/2 | 120 | 133.4 | 95.3 | 371.6 | 91.9 | 228.6 | 203.2 | 625.6 | 419.1 | 482.6 | 120.2 |
4 | 150 | 139.7 | 108 | 368.3 | 104.1 | 254 | 228.6 | 652.5 | 467.9 | 501.7 | 153.32 |
US type bow shackle G209
Size(in) | Working Load(t) | Dimension(mm) | Weight (kg/pc) | |||||||
A | B | C | D | E | F | G | H | |||
3/16 | 0.33 | 9.7 | 6.4 | 22.4 | 4.8 | 15.2 | 14.2 | 24.9 | 37.3 | 0.03 |
1/4 | 0.5 | 11.9 | 7.9 | 28.7 | 6.4 | 19.8 | 15.5 | 32.5 | 46.7 | 0.05 |
5/16 | 0.75 | 13.5 | 9.7 | 30.9 | 7.9 | 21.3 | 19.1 | 37.3 | 53.1 | 0.09 |
3/8 | 1 | 16.8 | 11.2 | 36.6 | 9.7 | 26.2 | 23.1 | 45.2 | 63.2 | 0.14 |
7/16 | 1.5 | 19.1 | 12.7 | 42.9 | 11.2 | 29.5 | 26.9 | 51.6 | 73.9 | 0.17 |
1/2 | 2 | 20.6 | 16 | 47.8 | 12.7 | 33.3 | 30.2 | 58.7 | 83.3 | 0.33 |
5/8 | 3.25 | 26.9 | 19.1 | 60.5 | 16 | 42.9 | 38.1 | 74.7 | 106.4 | 0.62 |
3/4 | 4.75 | 31.8 | 22.4 | 71.4 | 19.1 | 50.8 | 46 | 88.9 | 126.2 | 1.07 |
7/8 | 6.5 | 36.6 | 25.4 | 84.1 | 22.4 | 57.9 | 53.1 | 102.4 | 148.1 | 1.64 |
1 | 8.5 | 42.9 | 28.7 | 95.3 | 25.4 | 68.3 | 60.5 | 119.1 | 166.6 | 2.28 |
1 1/8 | 9.5 | 45 | 31.8 | 108 | 29.5 | 73.9 | 68.3 | 131.1 | 189.7 | 3.36 |
1 1/4 | 12 | 51.6 | 35.1 | 119.1 | 32.8 | 82.6 | 76.2 | 146.1 | 209.6 | 4.31 |
1 3/8 | 13.5 | 57.2 | 38.1 | 133.4 | 36.1 | 92.2 | 84.1 | 162.1 | 232.7 | 6.14 |
1 1/2 | 17 | 60.5 | 41.4 | 146.1 | 39.1 | 98.6 | 92.2 | 174.8 | 254 | 7.8 |
1 3/4 | 25 | 73.2 | 50.8 | 177.8 | 46.7 | 127 | 106.4 | 225 | 314.4 | 12.6 |
2 | 35 | 82.6 | 57.2 | 196.9 | 52.8 | 146.1 | 122.2 | 253.2 | 347.5 | 20.41 |
2 1/2 | 55 | 104.9 | 69.9 | 266.7 | 68.8 | 184.2 | 144.5 | 326.9 | 453.1 | 38.9 |
