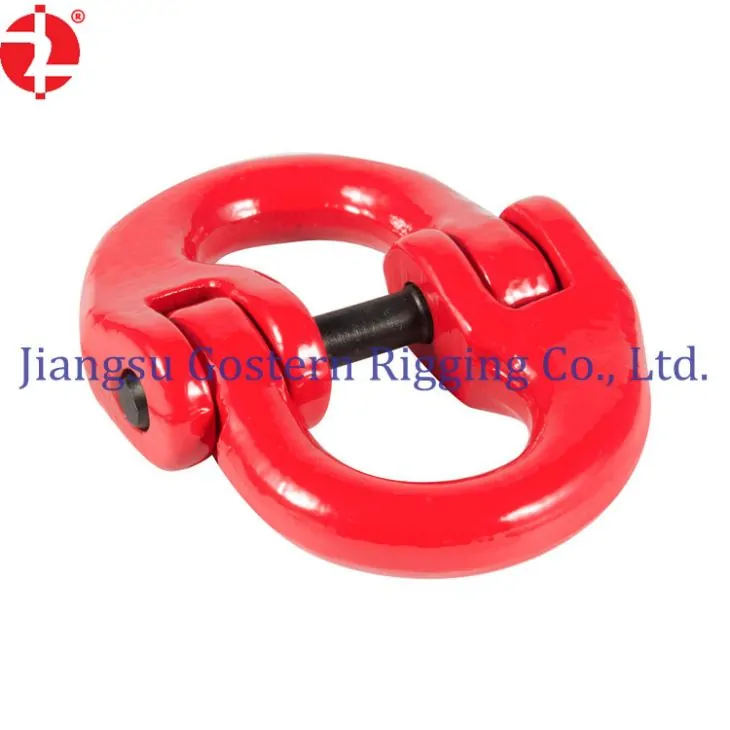

The butterfly shackle is the connecting link used in conjunction with the chain, the connection is convenient, fast and reliable.
Specifications
WLL: 1.5t~31.5t
Material: High-quality alloy steel
Process: Forging, heat treatment
Safety factor：4 times
Application: used in lifting operation
Finish: red / yellow painted

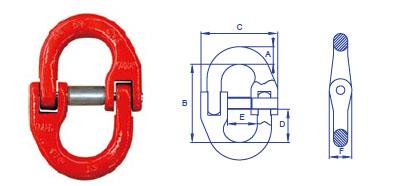

G80 Butterfly shackle (Connecting Link)
Chain diameter | WLL | Parameters(mm) | Weight(kg) | ||||||
(in) | (mm) | （t） | A | B | C | D | E | F | |
9/32(1/4) | 7 | 1.5 | 8.4 | 47.8 | 47 | 19.8 | 16 | 14.2 | 0.13 |
5/16 | 8 | 2 | 9.15 | 55.4 | 50 | 23.1 | 16.8 | 16 | 0.15 |
3/8 | 10 | 3.15 | 11.4 | 64.3 | 63.5 | 26.2 | 21.6 | 19.1 | 0.34 |
1/2 | 13 | 5.3 | 16.3 | 87.4 | 81.8 | 36.6 | 27.7 | 23.9 | 0.75 |
5/8 | 16 | 8 | 19.1 | 105 | 96 | 43.9 | 35.1 | 28.7 | 1.3 |
3/4 | 20 | 11.2 | 23.6 | 126 | 118 | 53.1 | 40.4 | 32.5 | 2.26 |
7/8 | 22 | 15 | 26.9 | 140 | 143 | 58.7 | 50 | 36.6 | 3.41 |
1 | 25 | 21.2 | 31 | 152 | 157 | 63.5 | 56.4 | 47.8 | 5 |
1 - /1/4 | 32 | 31.5 | 38.1 | 189 | 194 | 78.5 | 64.3 | 55.6 | 9.25 |

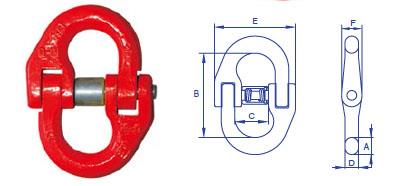

G63 Butterfly shackle(Connecting Link)
Model | Chain diameter(mm) | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | F(mm) | Weight(kg) |
HDH6 | 6 | 9 | 48 | 21 | 7 | 50 | 10 | 0.09 |
HDH8 | 8 | 11 | 58 | 21 | 9 | 54 | 13 | 0.17 |
HDH10 | 10 | 14 | 74 | 27 | 12 | 68 | 17 | 0.41 |
HDH12 | 12 | 17.5 | 94 | 37 | 13.5 | 88 | 20 | 0.67 |
HDH14 | 14 | 20 | 106 | 41 | 16 | 98 | 24 | 1.13 |
HDH16 | 16 | 23 | 114 | 45 | 18 | 110 | 27 | 1.61 |
HDH18 | 18 | 25 | 124 | 48 | 20 | 120 | 31 | 2.03 |
HDH20 | 20 | 28 | 131 | 50 | 23 | 130 | 34 | 2.73 |
HDH22 | 22 | 30 | 138 | 53 | 25 | 140 | 38 | 3.63 |
HDH24 | 24 | 33 | 150 | 59 | 27 | 152 | 42 | 4.73 |
HDH26 | 26 | 37 | 166 | 63 | 30 | 164 | 45 | 5.93 |
HDH30 | 30 | 40 | 180 | 65 | 33 | 170 | 50 | 7.14 |
HDH34 | 34 | 42 | 198 | 73 | 34 | 200 | 62 | 10.4 |
