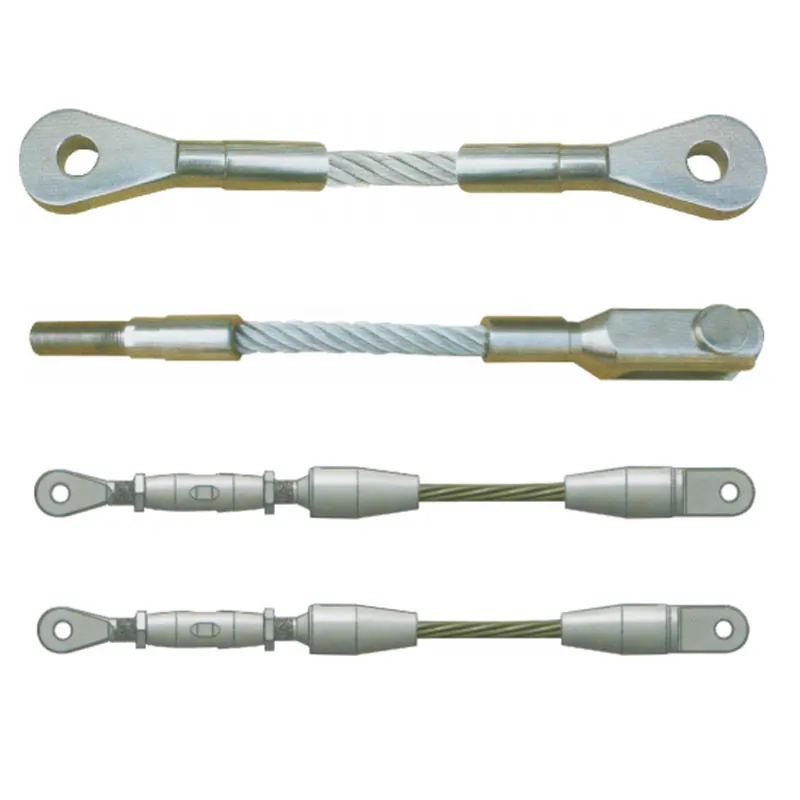

Fork Adjustable Wire Rope Assembly with Threaded

Please use the calculator (above right) to work out the cost to your specific dimensions.

Supplied with one left hand and one right hand thread fork end fitting to allow for easy adjustment.

Each wire rope assembly is made to your dimensions and consists of:
-One length of steel wire rope
-Two architectural adjuster forks- one right hand and one left ( Different types of forks are available in KMS, plase contact us for more information, customized fork is also welcomed!)
-Two double headed clevis pins
-Two architectural lock nuts- one right hand and one left

Adjustment

Adjustment to tension on the wire can be achieved by rotating the fork end fittings.

Safety tip: you should only unscrew fork ends the maximum length stated.

Measuring

How to measure your wire rope assembly:

please provide us with the pin centre to pin centre cable assembly measurements.

Technical

Fork Dimensions

Dimensions of the forks for each end of the wire rope assembly. You may need these dimensions to aid in specifying the type of eye or lug attachment.

Safe Working Loads for Wire Rope Assemblies

All wire rope assemblies are manufactured to achieve the safe working load of the wire type and diameter specified.
