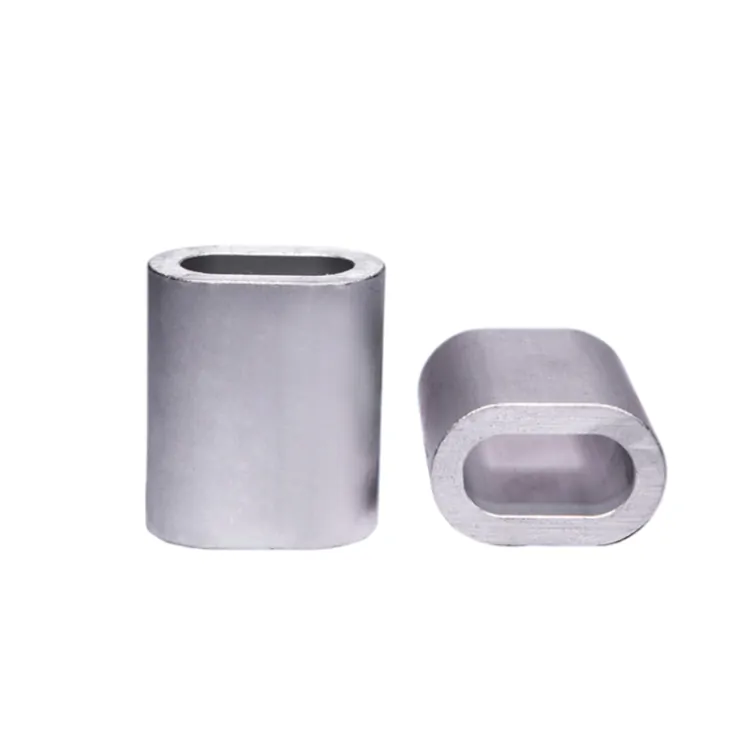

DIN 3093 Aluminum Ferrules for Wire Rope Sling

DIN 3093 Aluminum Ferrules for Wire Rope Sling

DIN 3093 Aluminum Ferrules for Wire Rope Sling

Share to:

DIN 3093 Aluminum Ferrules for Wire Rope Sling

Rope Size:	2.5 mm 3 mm 3.5 mm 4 mm 4.5 mm 5 mm 6 mm 6.5 mm 7 mm 8 mm 9 mm 10 mm 11 mm 12 mm 13 mm 14 mm 16 mm 18 mm 20 mm 22 mm 24 mm 26 mm 28 mm 32 mm 36 mm 40 mm 44 mm 48 mm 52 mm 56 mm 60 mm
Availability:

Quantity:



Inquire Add to Basket

Model:
ZS1210
Brand:
Gostern Rigging
Code:
ZS121003

Product Description

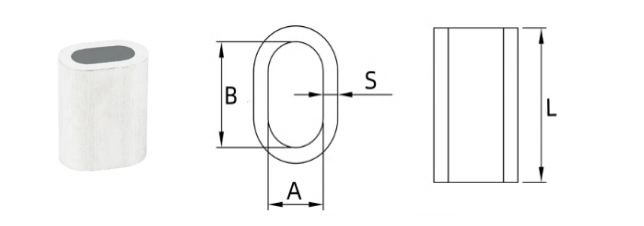

DIN 3093 Aluminum Ferrules (EN13411-3)

Rope Dia.	Dimensions (mm)				Weight
(mm)	A	B	S	L	kg/1000pcs
2.5	2.70	5.40	1.05	9.00	0.499
3	3.30	6.60	1.25	11.00	0.843
3.5	3.80	7.60	1.50	13.00	1.32
4	4.40	8.80	1.70	14.00	1.81
4.5	4.90	9.80	1.90	16.00	2.61
5	5.50	11.00	2.10	18.00	3.57
6	6.60	13.20	2.50	21.00	5.86
6.5	7.20	14.40	2.70	23.00	7.55
7	7.80	15.60	2.90	25.00	9.53
8	8.80	17.60	3.30	28.00	13.7
9	9.90	19.80	3.70	32.00	19.8
10	10.90	21.80	4.10	35.00	26.4
11	12.10	24.20	4.50	39.00	35.8
12	13.20	26.40	4.90	42.00	45.8
13	14.20	28.40	5.40	46.00	59.7
14	15.30	30.60	5.80	49.00	73.5
16	17.50	35.00	6.70	56.00	111
18	19.60	39.20	7.60	63.00	159
20	21.70	43.40	8.40	70.00	217
22	24.30	48.60	9.20	77.00	292
24	26.40	52.80	10.00	84.00	376
26	28.50	57.00	10.90	91.00	481
28	31.00	62.00	11.70	98.00	603
30	33.10	66.20	12.50	105.00	739
32	35.20	70.40	13.40	112.00	897
34	37.80	75.60	14.20	119.00	1077
36	39.80	79.60	15.00	126.00	1275
38	41.90	83.80	15.80	133.00	1503
40	44.00	88.00	16.60	140.00	1734
42	46.20	92.40	17.50	147.00	2024
44	48.40	96.80	18.30	154.00	2314
46	50.60	101.20	19.20	161.00	2662
48	52.80	105.60	20.00	168.00	3010
50	55.00	110.00	20.80	175.00	3412
52	57.20	114.40	21.60	182.00	3813
54	59.40	118.80	22.50	189.00	4293
56	61.60	123.20	23.30	196.00	4772
58	63.80	127.60	24.20	203.00	5326
60	66.00	132.00	25.00	210.00	5880
