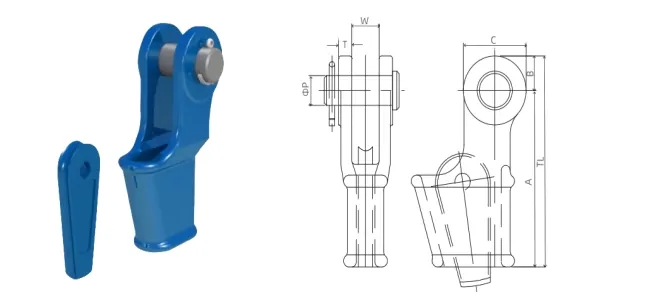

Open Wedge Socket
| Model | MBL (Ton) | Rope Dia. | Dimensions (mm) | Weight (kg/pc | |||||||
| mm | inch | A | B | C | ΦP | T | TL | W | |||
| OWS0.25 | 8 | 7-8 | 5/16 | 110 | 19 | 36 | 16 | 9 | 129 | 18 | 0.8 |
| OWS0.5 | 12 | 9-10 | 3/8 | 142 | 23 | 46 | 20.6 | 11 | 165 | 20.5 | 1.7 |
| OWS1 | 20 | 11-13 | 1/2 | 146 | 29 | 57 | 25 | 12 | 175 | 25 | 2.1 |
| OWS2 | 25 | 14-16 | 5/8 | 176 | 35 | 70 | 30 | 15 | 211 | 31 | 4.0 |
| OWS3 | 40 | 18-19 | 3/4 | 212 | 40 | 80 | 35 | 16 | 252 | 38 | 7.0 |
| OWS4 | 55 | 20-22 | 7/8 | 240 | 48 | 95 | 41 | 19 | 288 | 44 | 10.0 |
| OWS5 | 75 | 24-26 | 1 | 274 | 55 | 110 | 51 | 22 | 329 | 51 | 15.0 |
| OWS6 | 90 | 27-29 | 1-1/8 | 310 | 65 | 130 | 57 | 25 | 375 | 57 | 21.0 |
| OWS7 | 110 | 30-32 | 1-1/4 | 350 | 73 | 146 | 63 | 28 | 423 | 63 | 31.0 |
| OWS8 | 125 | 34-36 | 1-3/8 | 400 | 74 | 148 | 64 | 28 | 474 | 69 | 37.0 |
| OWS9 | 150 | 37-39 | 1-1/2 | 450 | 80 | 143 | 70 | 30 | 530 | 76 | 51.0 |
| OWS10 | 170 | 40-42 | 1-5/8 | 500 | 87 | 160 | 76 | 33 | 587 | 76 | 64.0 |
| OWS11 | 225 | 43-48 | 1-3/4~1-7/8 | 550 | 100 | 186 | 89 | 39 | 650 | 89 | 96.0 |
| OWS12 | 280 | 49-52 | 2 | 640 | 105 | 194 | 95 | 46 | 745 | 101 | 130.0 |
| OWS13 | 360 | 54-58 | 2-1/4 | 660 | 125 | 230 | 108 | 54 | 785 | 114 | 180.0 |
| OWS14 | 425 | 60-68 | 2-1/2 | 835 | 135 | 250 | 121 | 60 | 970 | 127 | 275.0 |
| OWS15 | 460 | 72-76 | 3 | 1000 | 150 | 270 | 133 | 76 | 1150 | 146 | 440.0 |
| OWS16 | 625 | 81-86 | 3-1/4~3-3/8 | 1100 | 152 | 300 | 140 | 79 | 1252 | 159 | 510.0 |
