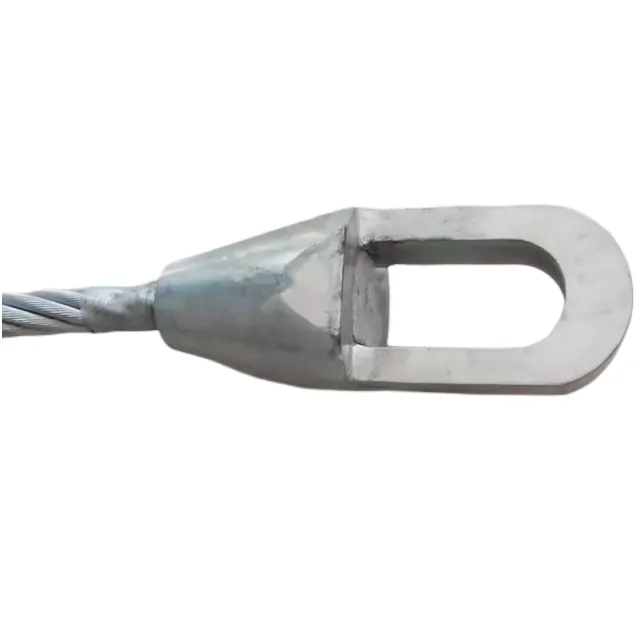

G417 Closed Spelter Socket for Wire Rope Sling

The closed spelter socket delivers 100% efficiency of the wire rope breaking strength.
Model:
1/4"
5/16"-3/8"
7/16"-1/2"
9/16"-5/8"
3/4"
7/8"
1"
1 1/8"
1 1/4"-1 3/8"
1 1/2"
1 5/8"
1 3/4"-1 7/8"
2"-2 1/8"
2 1/4"-2 3/8"
2 1/2"-2 5/8"
2 3/4"-2 7/8"
3"-3 1/8"
3 1/4"-3 3/8"
3 1/2"-3 5/8"
3 3/4"-4"
Availability:
Quantity:
Inquire Add to Basket

  • ZS06

  • Gostern Rigging

  • ZS0602

The Closed Spelter Socket from the standard series has a wide range of applications as a steel wire rope socket for general use in any situation and under various conditions. If the minimum breaking load of the wire is not higher than that of the Closed Spelter Socket, a 100% breaking load of the socket-wire combination is guaranteed.


The closed spelter socket wire rope sling is used for suspension bridge, roof, and oil rig construction scenarios

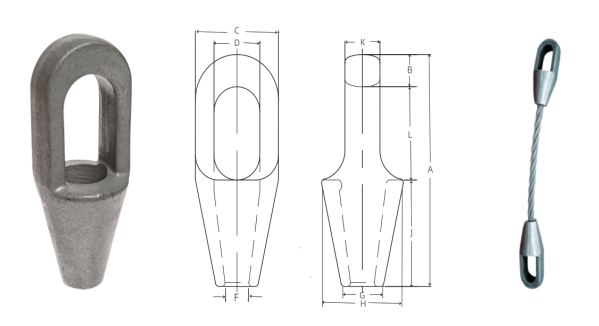

Closed Spelter Socket

Sockets attached to steel wire rope, used for lifting, anchoring system, anchor cables of oil platforms, towing cables or for fastening cables in construction purposes such as bridges, roof construction etc.
Sockets are the strongest steel wire rope end fitting available, and if they are assembled in the proper way they can meet at least the breaking strength of the steel wire rope.


Model wire rope Dia. A B C D F G H J K L Weight
(inch) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (kg/pc)
1/4 Φ6-Φ7 114 13 40 22 10 18 40 57 13 44 0.23
5/16-3/8 Φ8-Φ10 124 16 43 25 13 21 43 57 18 51 0.34
7/16-1/2 Φ11-Φ13 140 18 51 30 15 24 51 64 22 58 0.68
9/16-5/8 Φ14-Φ16 162 21 67 36 18 28 67 76 25 65 1.13
3/4 Φ18 194 27 76 42 22 32 76 89 32 78 1.90
7/8 Φ20-Φ22 226 33 92 48 24 38 92 102 38 91 3.30
1 Φ24-Φ26 253 36 105 58 29 44 105 114 44 103 4.80
1 1/8 Φ28 282 39 114 65 32 51 114 127 51 116 6.50
1 1/4 - 1 3/8 Φ32-Φ36 309 41 127 71 38 57 127 139 57 129 9.00
1 1/2 Φ38 355 49 136 81 41 70 136 151 63 155 13.30
1 5/8 Φ40 390 54 146 83 44 76 146 165 70 171 16.30
1 3/4 - 1 7/8 Φ44-Φ48 445 56 171 95 51 80 171 191 76 198 26.00
2 - 2 1/8 Φ52-Φ54 505 62 194 111 57 95 194 219 83 224 35.80
2 1/4 - 2 3/8 Φ56-Φ60 546 70 216 124 64 102 216 228 92 248 47.60
2 1/2 - 2 5/8 Φ64-Φ66 597 79 241 140 73 114 241 248 102 270 63.50
2 3/4 - 2 7/8 Φ70-Φ74 644 79 273 159 79 124 273 279 124 286 99.80
3 3 1/8 Φ76-Φ80 686 83 292 171 86 133 292 305 133 298 125.20
3 1/4 - 3 3/8 Φ82-Φ86 743 102 311 184 92 146 311 330 146 311 142.00
3 1/2 - 3 5/8 Φ88-Φ92 788 102 330 197 99 165 330 356 159 330 181.40
3 3/4 - 4 Φ95-Φ102 845 108 362 216 108 184 362 381 178 356 245.90



Product Name
Closed Spelter Socket
Material
Alloy Steel
Surface
Galvanized
Black
Process
Forged
Cast
Operating Temperature
-40°-200°
