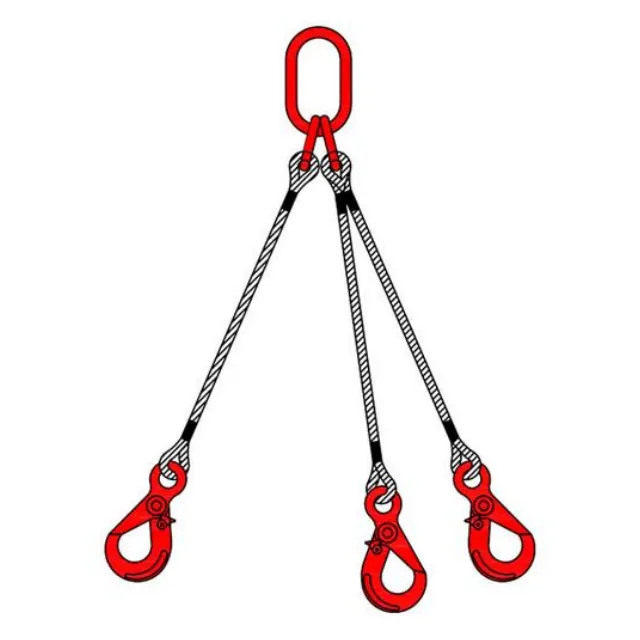

Three Leg Wire Rope Sling for Lifting

Standard: GB/T 16762-2020, EN13414-1
Wire rope: 6x37+FC-1670Mpa (can be changed)
Surface: bright, galvanized, lubricated
Component: master link, intermediate link, pressed wire rope, end fittings
Length: customizable
Availability:
Quantity:
Inquire Add to Basket

  • ZS0405

  • Gostern Rigging

  • ZS040503

Three Leg Wire Rope Sling


3腿钢丝绳索具图纸 Nominal Rope
Diameter
(mm)		 W.L.L
(kg)		 角度3
β≤45°
2.1		 45°<β≤60°
1.5
8 1197 855
9 1533 1095
10 1890 1350
12 2730 1950
13 3150 2250
14 3570 2550
16 4830 3450
18 6090 4350
20 7560 5400
22 9030 6450
24 10920 7800
26 12810 9150
28 14700 10500
30 17010 12150
32 19320 13800
36 24570 17550
40 30240 21600
44 36750 26250
48 43890 31350
52 51240 36600
56 59220 42300
60 68040 48600
one leg sling direct WLL(kN)=MBL*0.9/5
WLL will be changed according to specification of the wire rope
