Specifications

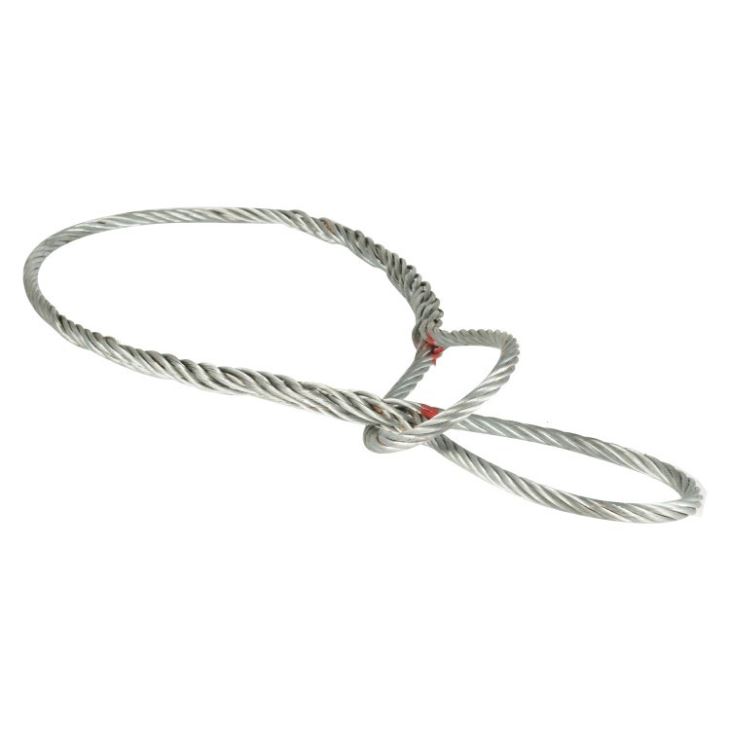

It is widely used in iron and steel, chemical industry, transportation, port and other industries.The internal inspection of the hand spliced hand wire rope sling can not be ignored, some damage caused by corrosion can not be directly observed by the naked eye, so strictly follow the steps of the internal inspection.
Art.No. | Dia | WILL | A×B | Art.No. | Dia | WILL | A×B |
(mm) | (kg) | (mm) | (mm) | (kg) | (mm) | ||
ZS0203006 | 6 | 2.7 | 180 | ZS0203070 | 70 | 333 | 1400 |
ZS0203007 | 7 | 3.6 | 190 | ZS0203072 | 72 | 353 | 1440 |
ZS0203008 | 8 | 4.7 | 210 | ZS0203074 | 74 | 372 | 1480 |
ZS0203009 | 9 | 6 | 230 | ZS0203076 | 76 | 393 | 1520 |
ZS0203010 | 10 | 7.4 | 230 | ZS0203078 | 78 | 414 | 1560 |
ZS0203011 | 11 | 8.9 | 250 | ZS0203080 | 80 | 435 | 1600 |
ZS0203012 | 12 | 11 | 260 | ZS0203082 | 82 | 458 | 1640 |
ZS0203013 | 13 | 12 | 260 | ZS0203084 | 84 | 480 | 1680 |
ZS0203014 | 14 | 14 | 280 | ZS0203086 | 86 | 503 | 1720 |
ZS0203016 | 16 | 19 | 320 | ZS0203088 | 88 | 527 | 1760 |
ZS0203018 | 18 | 24 | 360 | ZS0203022 | 22 | 36 | 440 |
ZS0203020 | 20 | 30 | 400 | ZS0203090 | 90 | 551 | 1800 |
ZS0203022 | 22 | 36 | 440 | ZS0203092 | 92 | 576 | 1840 |
ZS0203024 | 24 | 42 | 480 | ZS0203094 | 94 | 602 | 1880 |
ZS0203026 | 26 | 50 | 520 | ZS0203096 | 96 | 627 | 1920 |
ZS0203028 | 28 | 58 | 560 | ZS0203098 | 98 | 654 | 1960 |
ZS0203032 | 32 | 76 | 640 | ZS0203100 | 100 | 681 | 2000 |
ZS0203036 | 36 | 96 | 720 | ZS0203102 | 102 | 708 | 2040 |
ZS0203040 | 40 | 118 | 800 | ZS0203104 | 104 | 737 | 2080 |
ZS0203044 | 44 | 143 | 880 | ZS0203106 | 106 | 765 | 2120 |
ZS0203048 | 48 | 170 | 960 | ZS0203108 | 108 | 794 | 2160 |
ZS0203052 | 52 | 200 | 1040 | ZS0203110 | 110 | 824 | 2200 |
ZS0203056 | 56 | 231 | 1120 | ZS0203112 | 112 | 854 | 2240 |
ZS0203060 | 60 | 266 | 1200 | ZS0203114 | 114 | 885 | 2280 |
ZS0203064 | 64 | 302 | 1280 | ZS0203116 | 116 | 917 | 2320 |
ZS0203066 | 66 | 321 | 1320 | ZS0203118 | 118 | 948 | 2360 |
ZS0203068 | 68 | 327 | 1360 | ZS0203120 | 120 | 9814 | 2400 |
Inspection method
Check method: place two suitable size clamps 100-200mm apart on the wire rope and rotate in the opposite direction, the strand will be off.Care must be taken to avoid permanent deformation due to excessive displacement of the strand (resulting in structural damage).
