ZS04
Gostern Rigging
ZS0403

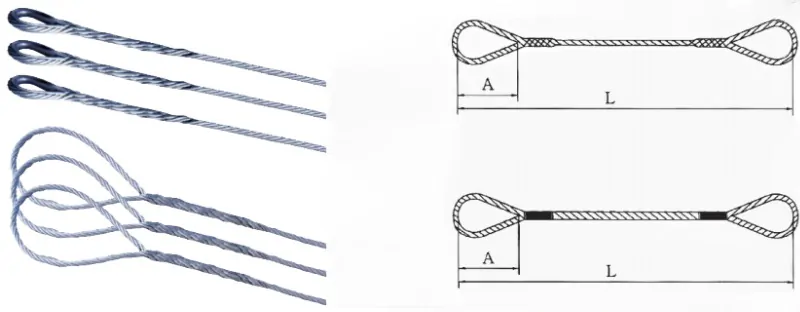

Hand Spliced Wire Rope Sling
Art.No. | Nominal Rope Dia. (mm) | W.L.L | A | Art.No. | Nominal Rope Dia. (mm) | W.L.L | A |
ZS0403006 | 6 | 0.27 | 180 | ZS0403070 | 70 | 33.34 | 1400 |
ZS0403008 | 8 | 0.48 | 210 | ZS0403072 | 72 | 35.18 | 1440 |
ZS0403009 | 9 | 0.61 | 230 | ZS0403074 | 74 | 37.17 | 1480 |
ZS0403010 | 10 | 0.75 | 230 | ZS0403076 | 76 | 39.31 | 1520 |
ZS0403012 | 12 | 1.08 | 260 | ZS0403078 | 78 | 41.3 | 1560 |
ZS0403013 | 13 | 1.27 | 260 | ZS0403080 | 80 | 43.44 | 1600 |
ZS0403014 | 14 | 1.48 | 280 | ZS0403082 | 82 | 45.73 | 1640 |
ZS0403016 | 16 | 1.93 | 320 | ZS0403084 | 84 | 47.88 | 1680 |
ZS0403018 | 18 | 2.45 | 360 | ZS0403086 | 86 | 50.32 | 1720 |
ZS0403020 | 20 | 3.01 | 400 | ZS0403088 | 88 | 52.62 | 1760 |
ZS0403022 | 22 | 3.64 | 440 | ZS0403090 | 90 | 55.06 | 1800 |
ZS0403024 | 24 | 4.34 | 480 | ZS0403092 | 92 | 57.51 | 1840 |
ZS0403026 | 26 | 5.09 | 520 | ZS0403094 | 94 | 60.11 | 1880 |
ZS0403028 | 28 | 5.9 | 560 | ZS0403096 | 96 | 62.56 | 1920 |
ZS0403030 | 30 | 6.78 | 600 | ZS0403098 | 98 | 65.31 | 1960 |
ZS0403032 | 32 | 7.71 | 640 | ZS0403100 | 100 | 67.91 | 2000 |
ZS0403036 | 36 | 9.76 | 720 | ZS0403102 | 102 | 70.67 | 2040 |
ZS0403040 | 40 | 12.05 | 800 | ZS0403104 | 104 | 73.57 | 2080 |
ZS0403044 | 44 | 14.59 | 880 | ZS0403106 | 106 | 76.33 | 2120 |
ZS0403048 | 48 | 17.44 | 960 | ZS0403108 | 108 | 79.23 | 2160 |
ZS0403052 | 52 | 20.34 | 1040 | ZS0403110 | 110 | 82.29 | 2200 |
ZS0403056 | 56 | 23.56 | 1120 | ZS0403112 | 112 | 85.2 | 2240 |
ZS0403060 | 60 | 24.47 | 1200 | ZS0403114 | 114 | 88.26 | 2280 |
ZS0403064 | 64 | 27.84 | 1280 | ZS0403116 | 116 | 91.47 | 2320 |
ZS0403066 | 66 | 29.67 | 1320 | ZS0403118 | 118 | 94.68 | 2360 |
ZS0403068 | 68 | 31.36 | 1360 | ZS0403120 | 120 | 97.89 | 2400 |
WLL(kN)=MBL*0.75/5 Wire rope: 6x37+FC-1670Mpa(6-56mm),8x61+FC-1770Mpa(60-120mm) | |||||||
Attentions
1. Users should be familiar with the performance, usage precautions, and scrap standards of various types of wire rope slings and their end accessories.
2. The selected wire rope sling should be adapted to the appearance characteristics and specific requirements of the workpiece to be lifted. It must not be used unless the conditions for use are met.
3. Before operation, the wire rope rigging and its accessories should be inspected and confirmed to be in good condition before use.
4. Before hanging, the rope point should be selected correctly; before lifting, make sure the binding is firm.
5. Spreaders and accessories must not exceed their rated lifting capacity, and slings must not exceed their maximum working load in the corresponding hanging state.
6. During operation, damage to the wire rope rigging and accessories should be prevented. If necessary, corner guards should be added to the edges and corners.
7. Steel wire rope slings should be inspected regularly during their use period. If conditions permit, flaw detection inspections should be carried out on spreaders and end accessories of large-tonnage and important products.
