Chain Diameter: | |
---|---|
Length: | |
Lifting hook: | |
Availability: | |
Quantity: | |
ZS0802
Gostern Rigging
ZS080202

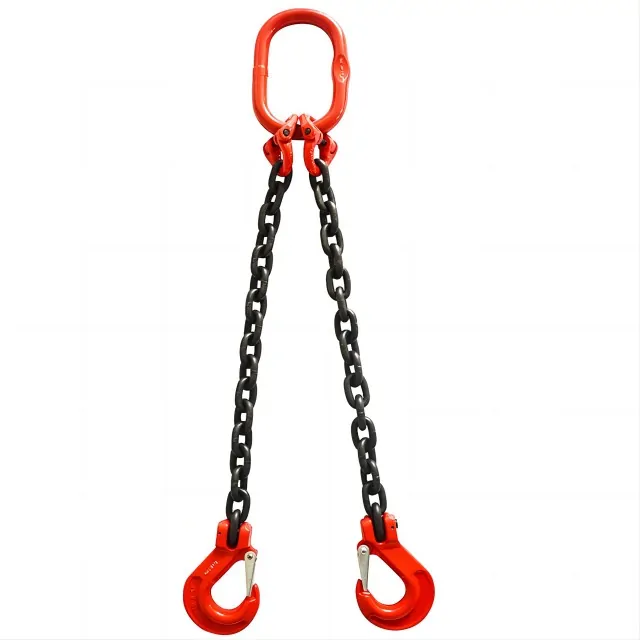

G80 Two Leg Chain Sling
Specifications
Material: alloy steel |
Standard: GB/T 20652, ISO 4778:2019, EN818-4 |
Safety Factor: 4:1 |
Length: customizable |
Components: master link, ID tag, connecting link, sling legs, end hardware. |
Surface Treatment: Polished, black, galvanized, painted |

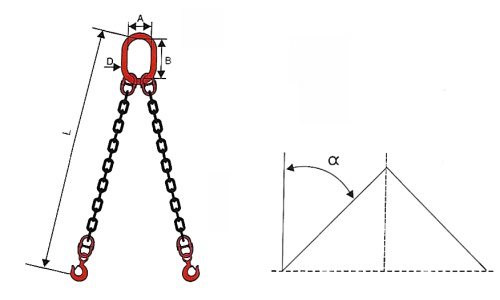

Model | Chain Dia. (mm) | WLL(T) | Master Link (T) | Connecting Link (T) | Weight of Chain (kg/m) | |
α≤45° | 45°<α≤60° | |||||
ZS080202-6 | 6 | 1.568 | 1.12 | 2.2 | 1.2 | 0.79 |
ZS080202-8 | 8 | 2.8 | 2 | 3 | 2 | 1.38 |
ZS080202-10 | 10 | 4.41 | 3.15 | 4.7 | 3.15 | 2.2 |
ZS080202-13 | 13 | 7.42 | 5.3 | 8 | 5.3 | 3.8 |
ZS080202-16 | 16 | 11.2 | 8 | 11 | 8 | 5.7 |
ZS080202-20 | 20 | 17 | 12.5 | 21.7 | 12.5 | 9 |
ZS080202-22 | 22 | 21 | 15 | 21.7 | 15 | 10.5 |
ZS080202-26 | 26 | 29.68 | 21.2 | 30 | 21.2 | 15.2 |
ZS080202-32 | 32 | 44.1 | 31.5 | 45 | 31.5 | 23 |
G80 Two Leg Chain Sling
Specifications
Material: alloy steel |
Standard: GB/T 20652, ISO 4778:2019, EN818-4 |
Safety Factor: 4:1 |
Length: customizable |
Components: master link, ID tag, connecting link, sling legs, end hardware. |
Surface Treatment: Polished, black, galvanized, painted |
Model | Chain Dia. (mm) | WLL(T) | Master Link (T) | Connecting Link (T) | Weight of Chain (kg/m) | |
α≤45° | 45°<α≤60° | |||||
ZS080202-6 | 6 | 1.568 | 1.12 | 2.2 | 1.2 | 0.79 |
ZS080202-8 | 8 | 2.8 | 2 | 3 | 2 | 1.38 |
ZS080202-10 | 10 | 4.41 | 3.15 | 4.7 | 3.15 | 2.2 |
ZS080202-13 | 13 | 7.42 | 5.3 | 8 | 5.3 | 3.8 |
ZS080202-16 | 16 | 11.2 | 8 | 11 | 8 | 5.7 |
ZS080202-20 | 20 | 17 | 12.5 | 21.7 | 12.5 | 9 |
ZS080202-22 | 22 | 21 | 15 | 21.7 | 15 | 10.5 |
ZS080202-26 | 26 | 29.68 | 21.2 | 30 | 21.2 | 15.2 |
ZS080202-32 | 32 | 44.1 | 31.5 | 45 | 31.5 | 23 |
