ZS0801
Gostern Rigging
ZS080113

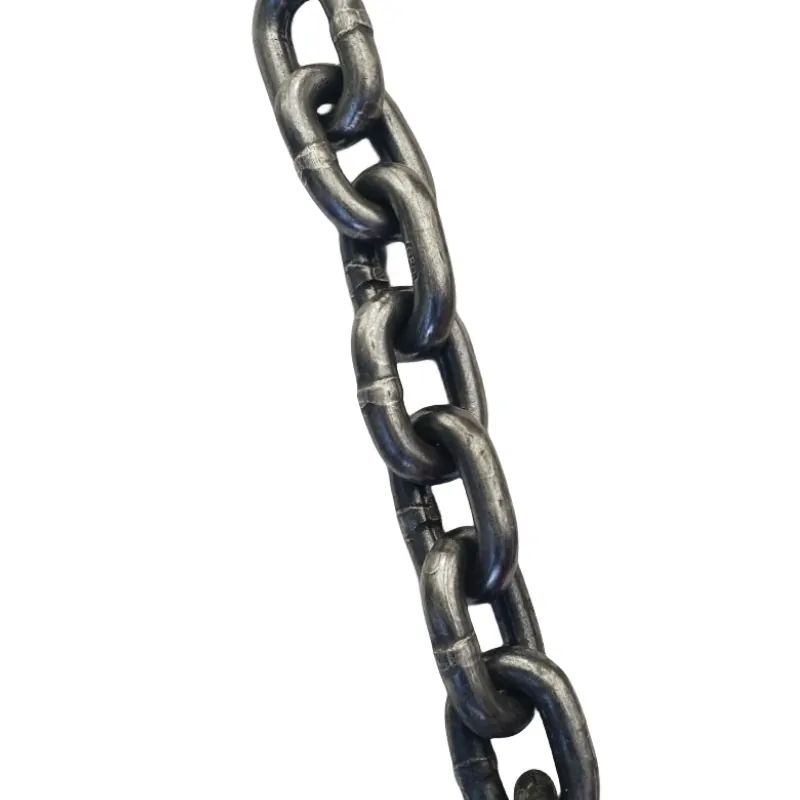

Mining Chain Round Steel Link Chain
Round steel mine chains are compact in size, lightweight, and have some ability to compensate for the installation with less precision, reliability, and long life. Operation by means of moving scraper chain to transport bulk materials continuous transport equipment, scraper conveyor in large, explosive, can significantly improve the working environment of workers and the prevention of environmental pollution during high-temperature materials.
Specifications
Standard: GB/T 12718-2009, DIN 22252:2001
Material: high quality alloy steel containing Cr, Ni, Mo
Grade: B/C/D
Surface treatment: black, galvanized, dipping paint
Application: coal mine, transport
| Diameter (mm) | Pitch (mm) | Width (mm) | Weight (kg/m) | Test Load (kN) | Elongation under T.L % | Min Br.L (kN) | Total Elongation under Br.L % | Class | |||
| d | ± | p | ± | a | b | ||||||
| 10 | ±0.4 | 40 | ±0.5 | 12 | 34 | 1.9 | 85 | 1.4 | 110 | 12 | B |
| 100 | 1.6 | 130 | 12 | C | |||||||
| 130 | 1.9 | 160 | 12 | D | |||||||
| 14 | ±0.4 | 50 | ±0.5 | 17 | 48 | 4 | 150 | 1.4 | 190 | 12 | B |
| 200 | 1.6 | 250 | 12 | C | |||||||
| 250 | 1.9 | 310 | 12 | D | |||||||
| 18 | ±0.5 | 64 | ±0.6 | 21 | 60 | 6.6 | 260 | 1.4 | 320 | 12 | B |
| 330 | 1.6 | 410 | 12 | C | |||||||
| 410 | 1.9 | 510 | 12 | D | |||||||
| 22 | ±0.7 | 86 | ±0.9 | 26 | 74 | 9.5 | 380 | 1.4 | 480 | 12 | B |
| 490 | 1.6 | 610 | 12 | C | |||||||
| 610 | 1.9 | 760 | 12 | D | |||||||
| 24 | ±0.8 | 86 | ±0.9 | 28 | 79 | 11.6 | 460 | 1.4 | 570 | 12 | B |
| 580 | 1.6 | 720 | 12 | C | |||||||
| 720 | 1.9 | 900 | 12 | D | |||||||
| 26 | ±0.8 | 92 | ±0.9 | 30 | 86 | 13.7 | 540 | 1.4 | 670 | 12 | B |
| 680 | 1.6 | 850 | 12 | C | |||||||
| 850 | 1.9 | 1060 | 12 | D | |||||||
| 30 | ±0.9 | 108 | ±1.0 | 34 | 98 | 18 | 710 | 1.4 | 890 | 12 | B |
| 900 | 1.6 | 1130 | 12 | C | |||||||
| 1130 | 1.9 | 1410 | 12 | D | |||||||
| 34 | ±1.0 | 126 | ±1.2 | 38 | 109 | 22.7 | 900 | 1.4 | 1140 | 12 | B |
| 1160 | 1.6 | 1450 | 12 | C | |||||||
| 1450 | 1.9 | 1810 | 12 | D | |||||||
| 38 | ±1.1 | 137 | ±1.4 | 42 | 121 | 29 | 1130 | 1.4 | 1420 | 12 | B |
| 1450 | 1.6 | 1810 | 12 | C | |||||||
| 1810 | 1.9 | 2270 | 12 | D | |||||||
| 42 | ±1.3 | 152 | ±1.5 | 46 | 133 | 35.3 | 1390 | 1.4 | 1740 | 12 | B |
| 1770 | 1.6 | 2220 | 12 | C | |||||||
| 2220 | 1.9 | 2770 | 12 | D | |||||||
