G70 Link Chain Zinc Plating Transport Chain

G70 link chain with a yellow zinc chromate finish, high strength grade 70, the length can be customized as required
Diameter:
1/4"
5/16"
3/8"
1/2"
5/8"
Availability:
Quantity:
Inquire Add to Basket

  • ZS0801

  • Gostern Rigging

  • ZS080103

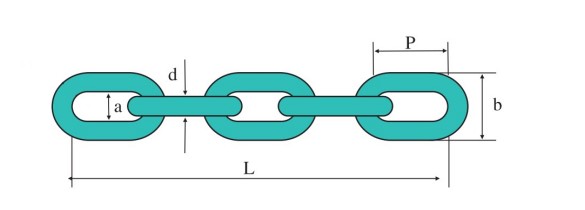

G70 chain-drawing


Diameter

(d)

 Inner Length
max.(p)		 Inner Width
min.(a)		 W.L.L. Proof Test
(min)		 Breaking Force
(min)
inch mm inch mm inch mm lbs kg lbs kn lbs kn
1/4 7.0 1.24 31.5 0.38 9.8 3150 1430 6100 27.0 12100 53.9
5/16 8.0 1.32 33.5 0.48 12.2 4700 2130 9400 41.6 18800 83.5
3/8 10.0 1.38 35.0 0.55 14.0 6600 2990 12400 55.0 24700 110.0
1/2 13.0 1.79 45.5 0.72 18.2 11300 5130 22600 100.5 45200 201.0
5/8 16.0 2.20 56.0 0.79 20.0 15800 7170 31600 140.5 63200 280.9

*Warning: Not to be used in overhead lifting applications.


Product Name
Transport Link Chain
Grade
G70
Material
Low alloy carbon steel
Surface
Yellow zinc chromate
Length
Can be customized
