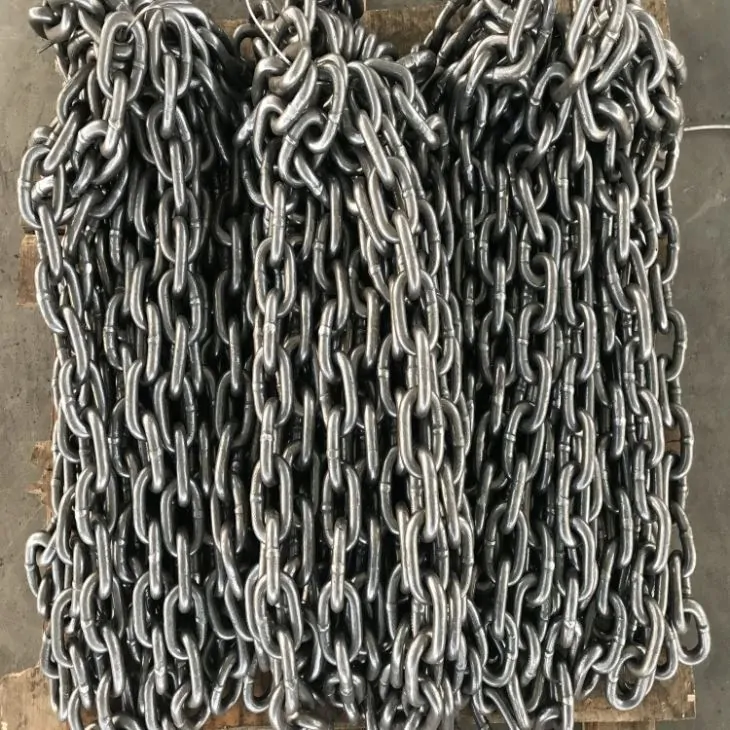

Alloy Steel Fishing Net Chains

Application: fishing net
Material: high quality alloy steel containing Cr, Ni, Mo
Surface treatment: oiled, balck, galvanized, dipping paint
Type:
Short Link Chain
Mid. Link Chain
Long Link Chain
Availability:
Quantity:
Inquire Add to Basket

  • ZS0801

  • Gostern Rigging

  • ZS080114

Fishing Net Chain


G80链条图纸

Type Specification
(mm)		 Diameter
(mm)		 Width(mm) Weight
(kg/m)		 Min B.F
(kN)
d x P d Min (a) Max (b)
Short Link Chain 7x21 7 10.0 25.5 1.10 53
10x30 10 14.0 36.0 2.20 109
13x39 13 18.1 47.1 3.80 172
16x48 16 22.4 57.4 5.70 281
19x57 19 27.8 68.8 8.00 397
20x60 20 29.0 72.0 9.00 440
Mid. Link Chain 10x40 10 15.0 37.0 2.00 109
13x52 13 19.5 48.5 3.40 172
14x50 14 18.5 49.5 4.04 215
16x64 16 24.0 59.0 5.04 281
19x76 19 28.5 69.5 7.12 397
22x86 22 27.0 74.0 9.40 532
26x92 26 31.0 86.0 13.70 743
Long Link Chain 7x45 7 10.0 25.5 0.83 53
9x53 9 15.0 35.0 1.40 89
11x63 11 18.0 43.0 2.18 132
13x80 13 22.0 51.0 2.97 172
16x100 16 26.0 61.0 4.44 281
19x100 19 27.0 68.0 6.50 397
22x120 22 37.0 84.0 8.76 532
28x150 28 44.0 103.0 14.13 860
