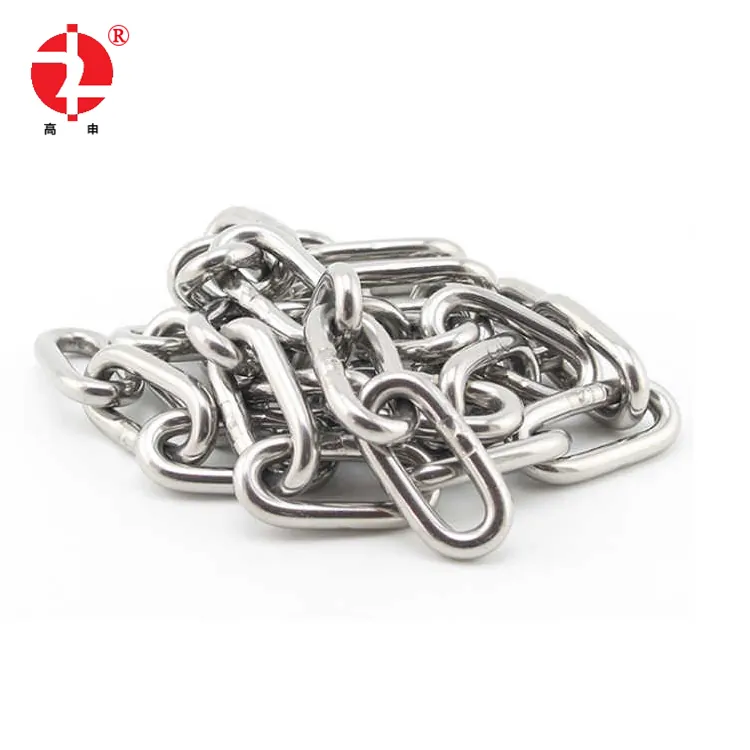

304 Stainless Steel DIN 5685 C Long Link Chain

304 stainless steel long link chain is widely used in various industries. It has the characteristics of corrosion resistance, high temperature resistance and high strength.
Diameter:
2mm
2.5mm
3mm
3.5mm
4mm
5mm
6mm
7mm
8mm
9mm
10mm
12mm
13mm
Availability:
Quantity:
Inquire Add to Basket

  • ZS0801

  • Gostern Rigging

  • ZS080108C

DIN 5685 C Long Link Chain


链条图纸

Diameter
d(mm)		 Inner Length
P(mm)		 Inner Width
a(mm)		 Weight
(kg/m)
2 22 4 0.06
2.5 24 5 0.1
3 26 6 0.15
3.5 26 7 0.2
4 32 8 0.27
5 35 10 0.43
6 42 12 0.63
7 49 14 0.86
8 52 16 1.1
9 59 18 1.41
10 65 20 1.75
12 78 24 2.55
13 82 26 2.95

*Please don't use the long link chain for overhead lifting.
