ZS0801
Gostern Rigging
ZS080106

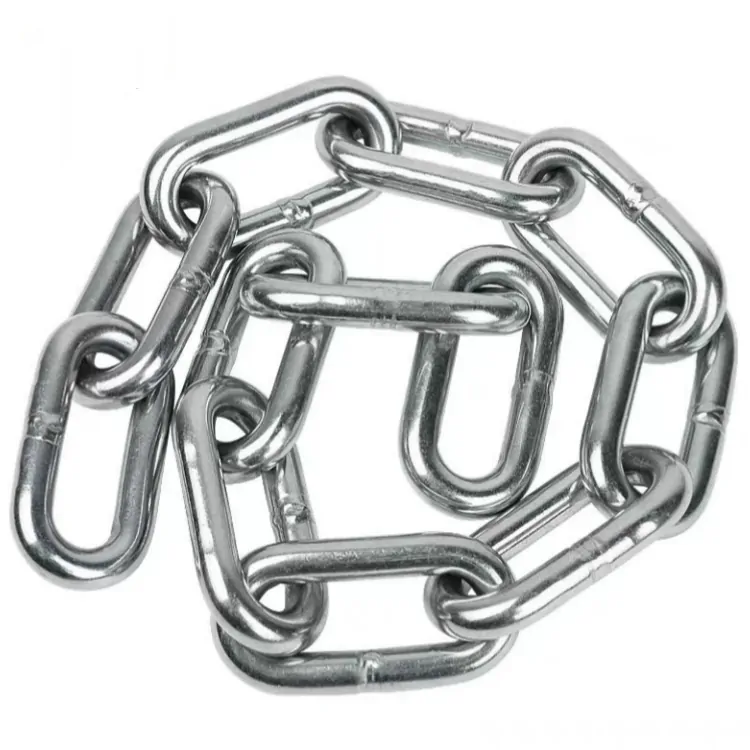

Calibrated and tested long link chain
Specifications
Size: 2mm-16mm
Material: AISI304, AISI316 stainless steel
Surface treatment: Polished, balck
Color: Self color, bright, black
Technical parameters
Diameter | Inner Length | Inner Width | Weight |
2 | 22 | 4 | 0.06 |
2.5 | 24 | 5 | 0.1 |
3 | 26 | 6 | 0.15 |
3.5 | 28 | 7 | 0.2 |
4 | 32 | 8 | 0.27 |
4.5 | 34 | 9 | 0.35 |
5 | 35 | 10 | 0.43 |
6 | 42 | 12 | 0.63 |
7 | 49 | 14 | 0.86 |
8 | 52 | 16 | 1.1 |
9 | 59 | 18 | 1.41 |
10 | 65 | 20 | 1.75 |
13 | 82 | 26 | 2.95 |
16 | 100 | 32 | 4.45 |
* The stainless steel long link chain can not be used as load handlers, slings or suspension elements.
Calibrated and tested long link chain
Specifications
Size: 2mm-16mm
Material: AISI304, AISI316 stainless steel
Surface treatment: Polished, balck
Color: Self color, bright, black
Technical parameters
Diameter | Inner Length | Inner Width | Weight |
2 | 22 | 4 | 0.06 |
2.5 | 24 | 5 | 0.1 |
3 | 26 | 6 | 0.15 |
3.5 | 28 | 7 | 0.2 |
4 | 32 | 8 | 0.27 |
4.5 | 34 | 9 | 0.35 |
5 | 35 | 10 | 0.43 |
6 | 42 | 12 | 0.63 |
7 | 49 | 14 | 0.86 |
8 | 52 | 16 | 1.1 |
9 | 59 | 18 | 1.41 |
10 | 65 | 20 | 1.75 |
13 | 82 | 26 | 2.95 |
16 | 100 | 32 | 4.45 |
* The stainless steel long link chain can not be used as load handlers, slings or suspension elements.
