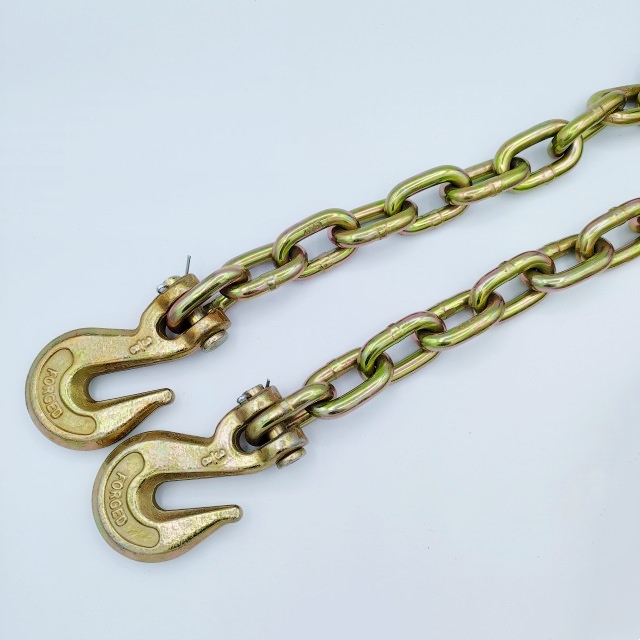

G70 Transport Chain with Clevis Grab Hooks on Both End

Grade 70 transport chain with G70 clevis grab hook on both end, the hooks also can be changed as your request.
Diameter:
Availability:
Quantity:
  • ZS0802

  • Gostern Rigging

  • ZS080211

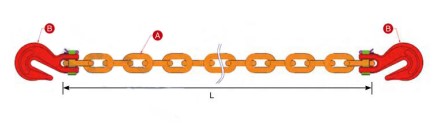

G70 transport chain-drawing

Diameter of A B-Clevis Grab Hook Working Load Limit (WLL) Min Breaking Load
INCH MM INCH LBS LBS
1/4" 7 1/4" 3150 12100
5/16" 8 5/16" 4700 18800
3/8" 10 3/8" 6600 26400
1/2" 13 1/2" 11300 45200
5/8" 16 5/8" 15800 63200
*Warning: Not to be used in overhead lifting applications.


Product Name
Transport Chain
Grade
G70
Material
Low alloy carbon steel
Surface
Yellow zinc chromate
Length
Can be customized
Hook
Clevis grab hook
