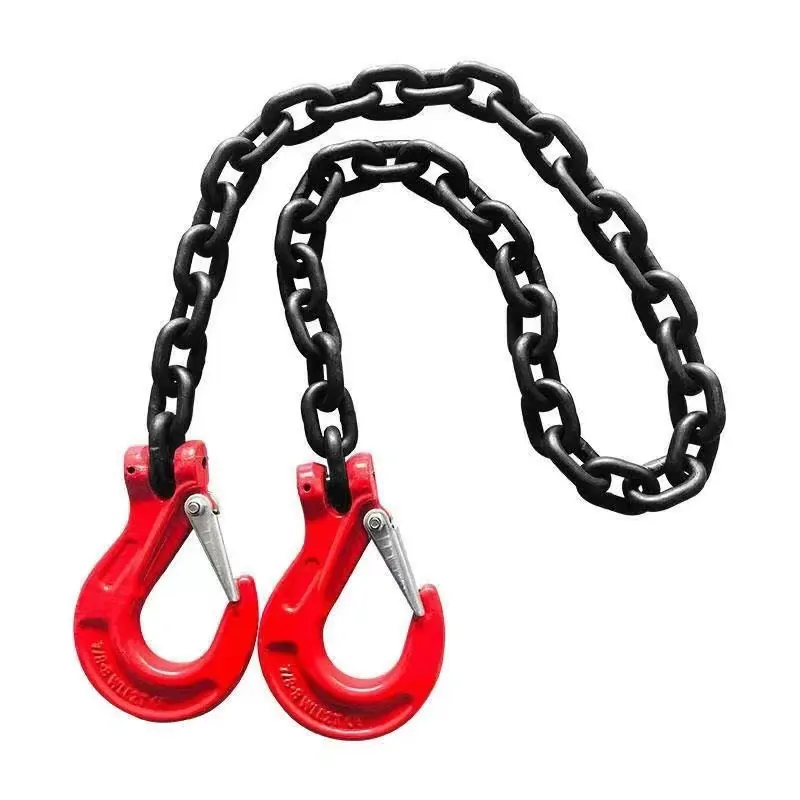

Single Leg Lifting Chain Sling with Hooks on Both End

Material: alloy steel
Standard: GB/T 20652, ISO 4778:2019, EN818-4
Safety Factor: 4:1
Length: customizable
Components: lifting hooks, ID tag, sling leg
Surface Treatment: Polished, black, galvanized, painted
Chain Diameter:
6mm
8mm
10mm
13mm
16mm
20mm
22mm
26mm
32mm
Lifting Hook:
Clevis sling hook with latch
Clevis self-locking hook
Clevis grab hook
Availability:
Quantity:
Inquire Add to Basket

  • ZS0802

  • Gostern Rigging

  • ZS080201h

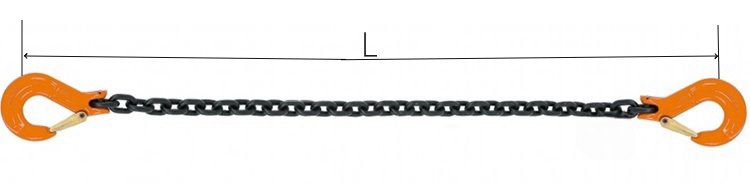

Single Leg Lifting Chain Sling with Hooks on Both End

单腿链条索具两头钩


Model Chain Dia.
(mm)		 WLL
(T)		 Hooks
(T)		 Weight of Chain
(kg/m)
ZS080201h-6 6 1.12 1.12 0.79
ZS080201h-8 8 2 2 1.38
ZS080201h-10 10 3.15 3.15 2.2
ZS080201h-13 13 5.3 5.3 3.8
ZS080201h-16 16 8 8 5.7
ZS080201h-20 20 12.5 12.5 9
ZS080201h-22 22 15 15 10.5
ZS080201h-26 26 21.2 21.2 15.2
ZS080201h-32 32 31.5 31.5 23
