ZS0801
Gostern Rigging
ZS080107

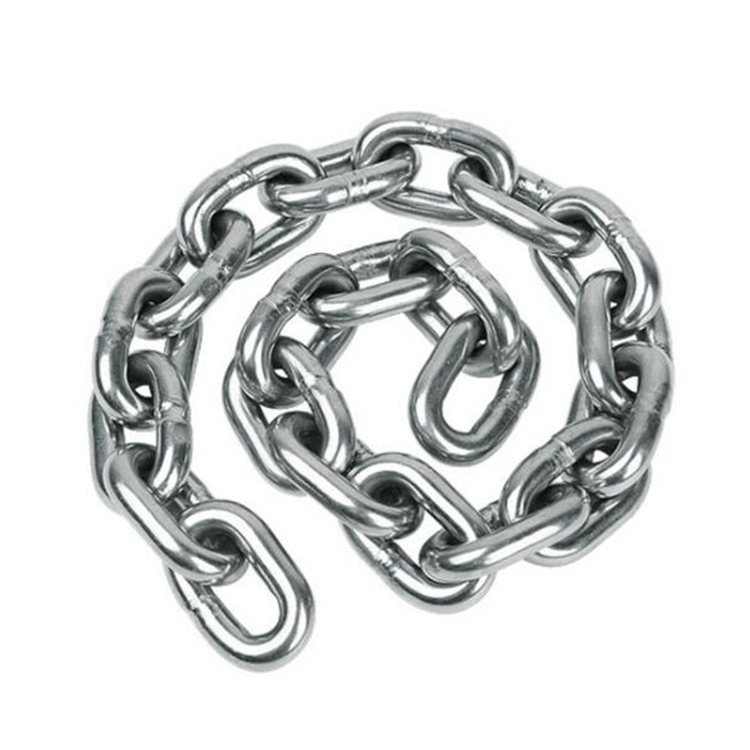

AISI 316 Stainless Steel DIN 766 Windlass Anchor Chain
| Diameter d(mm) | Inner Length p(mm) | Inner Width a(mm) | Weight (kg/m) |
| 2 | 12 | 3.5 | 0.07 |
| 3 | 16 | 5 | 0.163 |
| 4 | 16 | 5 | 0.32 |
| 5 | 18.5 | 6 | 0.5 |
| 6 | 18.5 | 7.2 | 0.8 |
| 7 | 22 | 8.4 | 1.1 |
| 8 | 24 | 9.6 | 1.4 |
| 9 | 27 | 10.8 | 1.8 |
| 10 | 28 | 12 | 2.3 |
| 11 | 31 | 13.2 | 2.68 |
| 12 | 36 | 14.6 | 3.11 |
| 13 | 36 | 15.6 | 3.8 |
| 16 | 45 | 19.2 | 5.7 |
*About stainless steel chains
(1) 201 stainless steel chain, suitable for use in dry environments, can easily rust when exposed to water.
(2) 304 stainless steel chain, suitable for outdoor or humid environments, strong corrosion resistance and acid resistance.
(3) 316 stainless steel chain with molybdenum added has better corrosion resistance and pitting corrosion resistance, especially suitable for marine or chemically harsh environments.
AISI 316 Stainless Steel DIN 766 Windlass Anchor Chain
| Diameter d(mm) | Inner Length p(mm) | Inner Width a(mm) | Weight (kg/m) |
| 2 | 12 | 3.5 | 0.07 |
| 3 | 16 | 5 | 0.163 |
| 4 | 16 | 5 | 0.32 |
| 5 | 18.5 | 6 | 0.5 |
| 6 | 18.5 | 7.2 | 0.8 |
| 7 | 22 | 8.4 | 1.1 |
| 8 | 24 | 9.6 | 1.4 |
| 9 | 27 | 10.8 | 1.8 |
| 10 | 28 | 12 | 2.3 |
| 11 | 31 | 13.2 | 2.68 |
| 12 | 36 | 14.6 | 3.11 |
| 13 | 36 | 15.6 | 3.8 |
| 16 | 45 | 19.2 | 5.7 |
*About stainless steel chains
(1) 201 stainless steel chain, suitable for use in dry environments, can easily rust when exposed to water.
(2) 304 stainless steel chain, suitable for outdoor or humid environments, strong corrosion resistance and acid resistance.
(3) 316 stainless steel chain with molybdenum added has better corrosion resistance and pitting corrosion resistance, especially suitable for marine or chemically harsh environments.
