Single Leg Chain Sling with Shackles on Both End

Material: alloy steel, 45# (shackle)
Standard: GB/T 20652, ISO 4778:2019, EN818-4
Safety Factor: 4:1
Length: customizable
Components: shackles, ID tag, connecting link, sling leg
Surface Treatment: Polished, black, galvanized, painted
Chain Diameter:
6mm
8mm
10mm
13mm
16mm
20mm
22mm
26mm
32mm
Availability:
Quantity:
Inquire Add to Basket

  • ZS0802

  • Gostern Rigging

  • ZS080201s

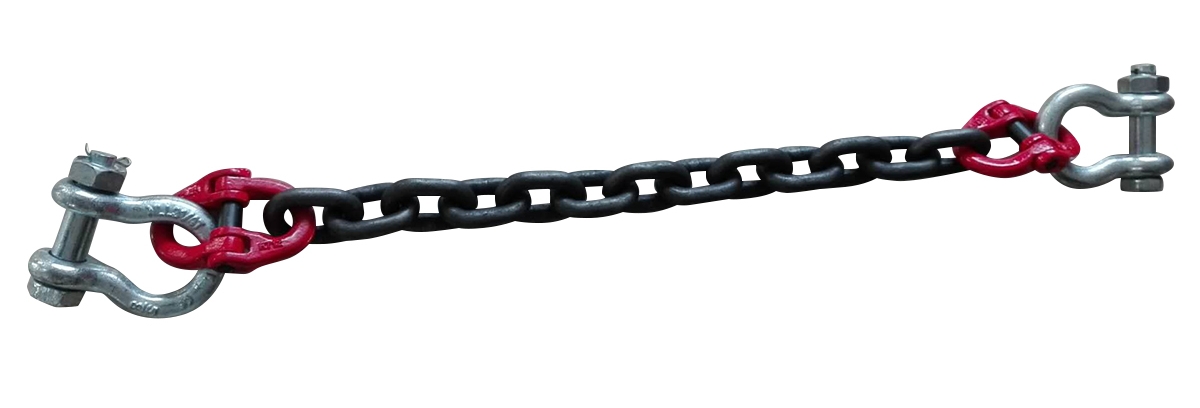

Single Leg Chain Sling with Shackles on Both End


单腿链条加卸扣小图


Model Chain Dia.
(mm)		 WLL
(T)		 Shackle
(inch)		 Connecting Link
(T)		 Weight of Chain
(kg/m)
ZS080201s-6 6 1.12 7/16 1.2 0.79
ZS080201s-8 8 2 1/2 2 1.38
ZS080201s-10 10 3.15 5/8 3.15 2.2
ZS080201s-13 13 5.3 7/8 5.3 3.8
ZS080201s-16 16 8 1 8 5.7
ZS080201s-20 20 12.5 1  3/8 12.5 9
ZS080201s-22 22 15 1  1/2 15 10.5
ZS080201s-26 26 21.2 1  3/4 21.2 15.2
ZS080201s-32 32 31.5 2  1/2 31.5 23
