ZS0801
Gostern Rigging
ZS080112
Specifications
Standard: GB/T20947-2009
Safety ratio: 4:1
Material: 304, 316L

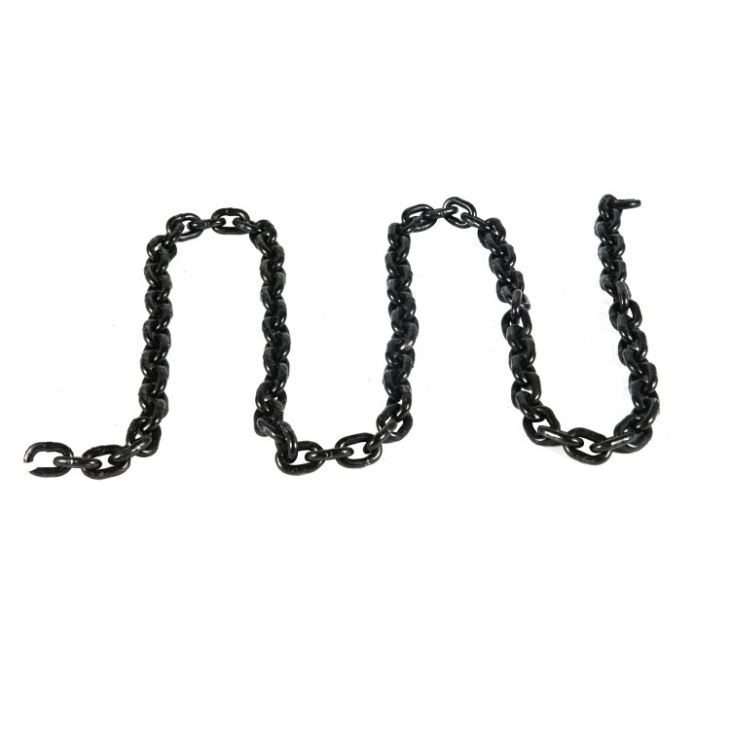

Application range : Fine tolerance hoist chain
Surface treatment: polished
Diameter (mm) | Pitch (mm) | Width (mm) | W.L.L | Weight | Test Load | Min BF | |||
d | tolerance | p | tolerance | min a | max b | ||||
3 | ±0.2 | 9 | +0.18 | 3.6 | 10.2 | 0.25 | 0.2 | 0.5 | 1.00 |
4 | ±0.2 | 12 | +0.25 | 4.8 | 13.6 | 0.44 | 0.35 | 0.88 | 1.76 |
5 | ±0.2 | 15 | +0.3 | 6 | 17 | 0.7 | 0.55 | 1.4 | 2.80 |
6 | ±0.2 | 18 | +0.4 | 7.2 | 20.4 | 0.8 | 0.78 | 1.6 | 3.20 |
6.3 | ±0.2 | 19 | +0.4 | 7.2 | 20.4 | 0.9 | 0.85 | 1.8 | 3.60 |
7.1 | ±0.3 | 21 | +0.4 | 8.4 | 23.8 | 1.2 | 1.1 | 2.4 | 4.80 |
8 | ±0.3 | 24 | +0.5 | 9.6 | 27.2 | 1.6 | 1.4 | 3.2 | 6.40 |
9 | ±0.4 | 27 | +0.5 | 10.8 | 30.6 | 1.8 | 1.8 | 3.6 | 7.20 |
10 | ±0.4 | 30 | +0.6 | 12 | 34 | 2 | 2.2 | 4 | 8.00 |
11.2 | ±0.4 | 34 | +0.7 | 13.2 | 37.4 | 2.2 | 2.6 | 4.4 | 8.80 |
12.5 | ±0.5 | 38 | +0.8 | 14.4 | 40.8 | 3.1 | 3.4 | 6.2 | 12.40 |
13 | ±0.5 | 39 | +0.8 | 15.6 | 44.2 | 3.3 | 3.8 | 6.6 | 13.20 |
14 | ±0.6 | 42 | +0.8 | 16.8 | 47.6 | 3.8 | 4.4 | 7.6 | 15.20 |
16 | ±0.6 | 48 | +0.9 | 19.2 | 54.4 | 5 | 5.7 | 10 | 20.00 |
Attention
1. The overloading is not allowed.
2. Knoting or twisting are all forbidden.
3. loading using the top of the lifting hook is not allowed.
4. Working temperature: -40℃~+200℃.
