ZS0801
Gostern Rigging
ZS0801010
1. Overview of lifting chain：
Lifting chain is an important means of crane. According to application, it is divided into transmission chain, conveyor chain, lifting chain, special chain, etc.
The lifting chain is made of high-quality stainless steel and is subject to strict quality control throughout the entire process.
2. the use of lifting chain：
Lifting chains are mainly used for crane lifting and cargo loading and unloading operations. It is widely used in lifting, bundling, and traction equipment in metallurgy, machinery, shipbuilding, petrochemical, fishery, mining, construction, port, forestry, light industry, and other industries.
3. the advantages of stainless steel lifting chain：
The load can be transmitted long distances, subjected to various effects of the load and the variable load carrying safety factor, good softening performance, safety, and reliability. High tensile strength, fatigue strength, and impact toughness, at high-speed operating conditions, wear-resistant, shock, stability of operation. Good corrosion resistance can work in harsh environments with harmful medium.
4. the lifting chain parameters：
| Diameter (mm) | Pitch (mm) | Width (mm) | W.L.L. (T) | Weight (kg/m) | Test Load (T) | Min BF (T) | ||
| d | Tolerance | p | Min a | Max b | ||||
| 6 | ±0.2 | 18 | 7.8 | 22.2 | 0.8 | 0.78 | 1.6 | 3.2 |
| 7 | ±0.3 | 21 | 9.1 | 25.9 | 1.2 | 1.1 | 2.4 | 4.8 |
| 8 | ±0.3 | 24 | 10.4 | 29.6 | 1.6 | 1.4 | 3.2 | 6.4 |
| 9 | ±0.4 | 27 | 11.7 | 33.3 | 1.8 | 1.8 | 3.6 | 7.2 |
| 10 | ±0.4 | 30 | 13 | 37 | 2 | 2.2 | 4 | 8 |
| 12 | ±0.5 | 36 | 15.6 | 44.4 | 2.4 | 3.3 | 4.8 | 9.6 |
| 13 | ±0.5 | 39 | 16.9 | 48.1 | 3.3 | 3.8 | 6.6 | 13.2 |
| 14 | ±0.6 | 42 | 18.2 | 51.8 | 3.8 | 4.4 | 7.6 | 15.2 |
| 16 | ±0.6 | 48 | 20.8 | 59.2 | 5 | 5.7 | 10 | 20 |
| 18 | ±0.9 | 54 | 23.4 | 66.6 | 6.3 | 7.1 | 12.6 | 25.2 |
| 20 | ±1 | 60 | 26 | 74 | 7.8 | 9 | 15.6 | 31.2 |
| 22 | ±1.1 | 66 | 28.6 | 81.4 | 8.4 | 10.5 | 16.8 | 33.6 |
| 24 | ±1.2 | 72 | 31.2 | 88.8 | 9.6 | 12.5 | 19.2 | 38.4 |
| 26 | ±1.3 | 78 | 33.8 | 96.2 | 11.8 | 15.5 | 23.6 | 47.2 |
We based on the research and development and production of high-strength, high-precision mid-to-high-end chains for more than 20 years.
All the lifting chains should through the manufacturing verification force tensile test according to EN818-2 standard-rated working load (WLL) to ensure that our chains are perfect.

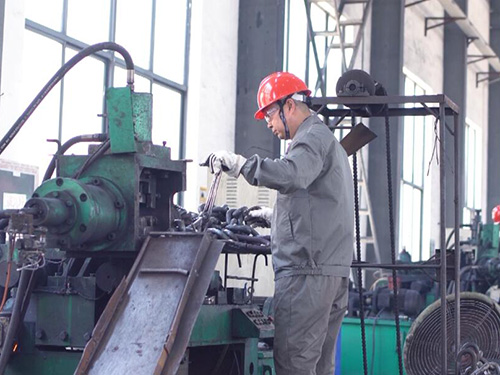

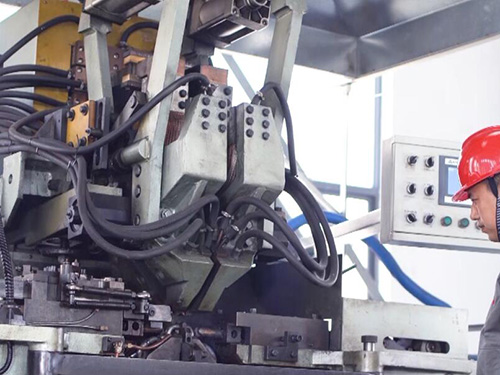

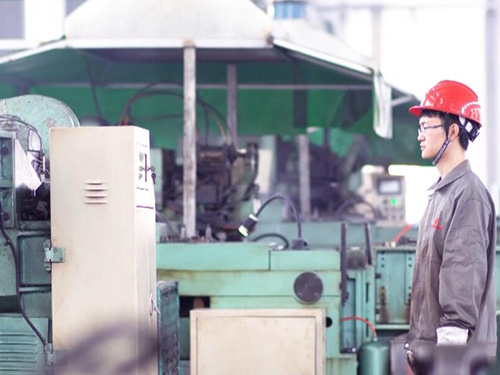

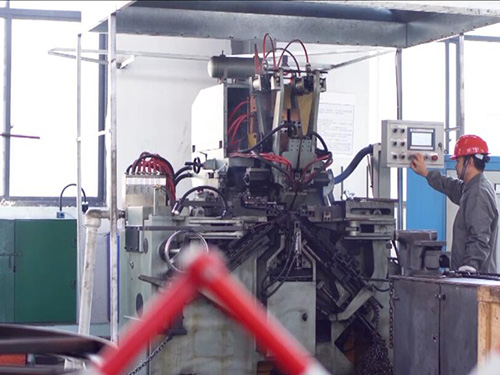

We have more than 50 sets of fully automatic and semi-automatic production equipment such as chain braiding, welding chain, heat treatment, surface treatment, tension leveling machines, and more than 100 sets of testing equipment.
|
|
|
|
