G80 Adjustable Double Leg Chain Sling

The G80 adjustable double leg chain sling has the characteristics of corrosion resistance, high-temperature resistance, low ductility, and no extension of force. Long life, easy to bend, suitable for construction, manufacturing industry, and other large-scale, frequently used occasions.
Chain Diameter:
6mm
8mm
10mm
13mm
16mm
20mm
22mm
26mm
32mm
Lifting hook:
Clevis self-locking hook
Clevis sling hook with latch
Eye self-locking hook
Swivel self-locking hook
Eye hoist hook with latch
Eye foundry hook
Chain shortner:
Eye grab hook
Clevis grab hook
Clevis shortening clutch
Availability:
Quantity:
Inquire Add to Basket

  • ZS0802

  • Gostern Rigging

  • ZS080202a

Adjustable G80 Two Leg Chain Sling


Specifications

Material: alloy steel
Standard: GB/T 20652, ISO 4778:2019, EN818-4
Safety Factor: 4:1
Length: customizable
Components: master link, ID tag, connecting link, sling legs, end hardware.
Surface Treatment: Polished, black, galvanized, painted


微信图片_20240301112300

Model Chain Dia.
(mm)		 WLL(T) Master
Link
(T)

Connecting

 Link

(T)

Weight

 of Chain

(kg/m)

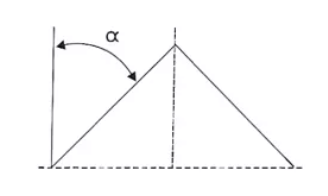

α≤45° 45°＜α≤60°
ZS080202-6 6 1.568 1.12 2.2 1.2 0.79
ZS080202-8 8 2.8 2 3 2 1.38
ZS080202-10 10 4.41 3.15 4.7 3.15 2.2
ZS080202-13 13 7.42 5.3 8 5.3 3.8
ZS080202-16 16 11.2 8 11 8 5.7
ZS080202-20 20 17 12.5 21.7 12.5 9
ZS080202-22 22 21 15 21.7 15 10.5
ZS080202-26 26 29.68 21.2 30 21.2 15.2
ZS080202-32 32 44.1 31.5 45 31.5 23
