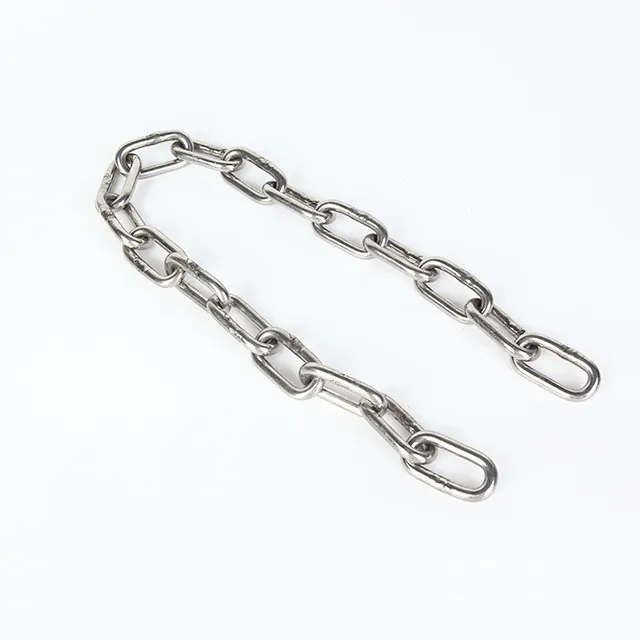

ZS0801
Gostern Rigging
ZS080109
Specifications
Standard: DIN 764
Material: 201, 304, 316 stainless steel
Surface treatment: polished
Color: bright
Diameter: 4mm-26mm

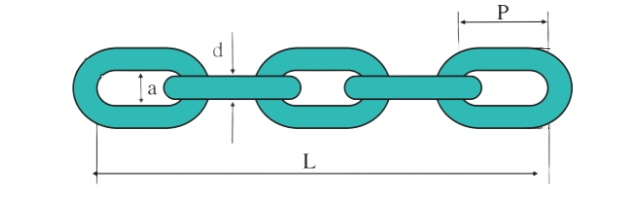

Diameter d(mm) | Pitch p(mm) | Inner Width a(mm) | Weight (kg/m) |
4 | 16 | 5 | 0.313 |
5 | 18 | 7 | 0.514 |
6 | 21 | 8 | 0.74 |
8 | 28 | 11 | 1.315 |
10 | 35 | 14 | 2 |
12 | 42 | 16 | 2.98 |
13 | 45 | 18 | 3.5 |
14 | 49 | 20 | 4.06 |
16 | 56 | 22 | 5.2 |
18 | 63 | 24 | 6.5 |
20 | 70 | 27 | 8.2 |
23 | 80 | 31 | 11 |
26 | 91 | 35 | 14 |
*It's not manufactured for lifting purposes.
