Single Leg Wire Rope Sling

Standard: GB/T 16762-2020, EN13414-1
Wire rope: 6x37+FC-1670Mpa (can be changed)
Surface: bright, galvanized, lubricated
Component: master link,pressed wire rope, end fittings
Length: customizable
Availability:
Quantity:
Inquire Add to Basket

  • ZS0405

  • Gostern Rigging

  • ZS040501

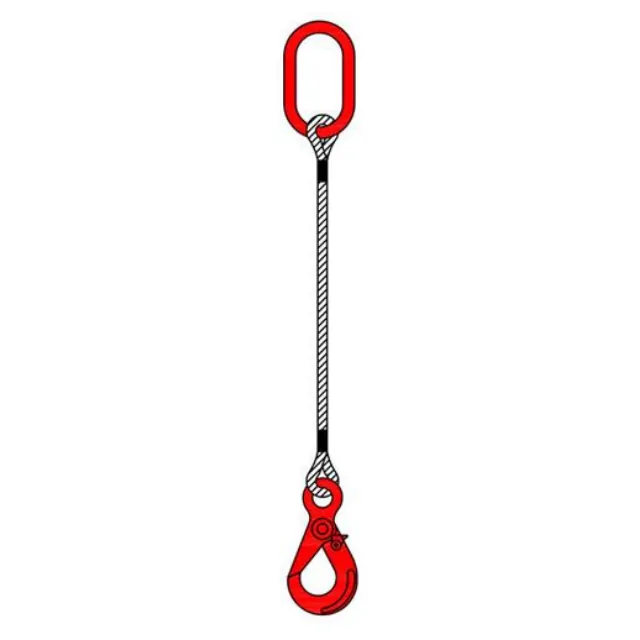

Single Leg Wire Rope Sling


单腿钢丝绳索具图纸 Nominal Rope
Diameter
(mm)		 W.L.L
(kg)
8 570
9 730
10 900
12 1300
13 1500
14 1700
16 2300
18 2900
20 3600
22 4300
24 5200
26 6100
28 7000
30 8100
32 9200
36 11700
40 14400
44 17500
48 20900
52 24400
56 28200
60 32400
WLL(kN)=MBL*0.9/5
WLL will be changed according to specification of the wire rope
