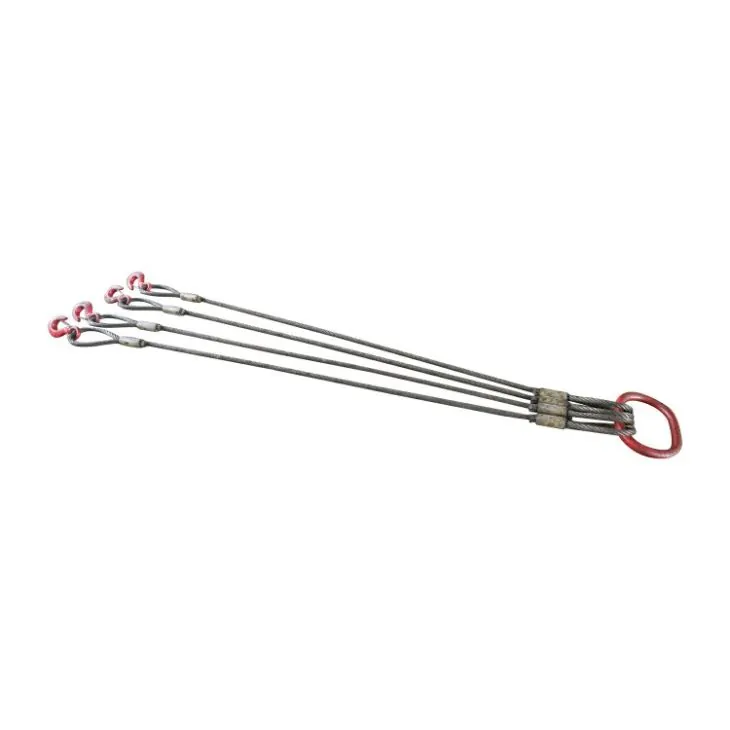

Pressed Wire Rope with Multiple Legs

	Nominal Rope Diameter (mm)	W.L.L (kg)
	8	570
	9	730
	10	900
	12	1300
	13	1500
	14	1700
	16	2300
	18	2900
	20	3600
	22	4300
	24	5200
	26	6100
	28	7000
	30	8100
	32	9200
	36	11700
	40	14400
	44	17500
	48	20900
	52	24400
	56	28200
	60	32400
WLL(kN)=MBL*0.9/5 WLL will be changed according to specification of the wire rope

	Nominal Rope Diameter (mm)	W.L.L (kg)
	Nominal Rope Diameter (mm)	α≤90° 1.4	90°<α≤120° 1.0
	8	798	570
	9	1022	730
	10	1260	900
	12	1820	1300
	13	2100	1500
	14	2380	1700
	16	3220	2300
	18	4060	2900
	20	5040	3600
	22	6020	4300
	24	7280	5200
	26	8540	6100
	28	9800	7000
	30	11340	8100
	32	12880	9200
	36	16380	11700
	40	20160	14400
	44	24500	17500
	48	29260	20900
	52	34160	24400
	56	39480	28200
	60	45360	32400

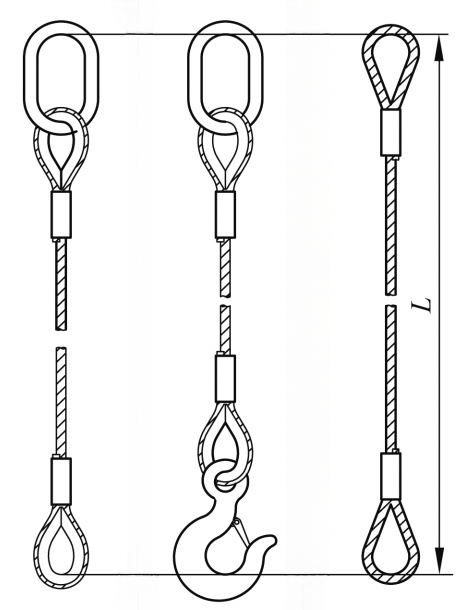

one leg sling direct WLL(kN)=MBL*0.9/5 WLL will be changed according to specification of the wire rope

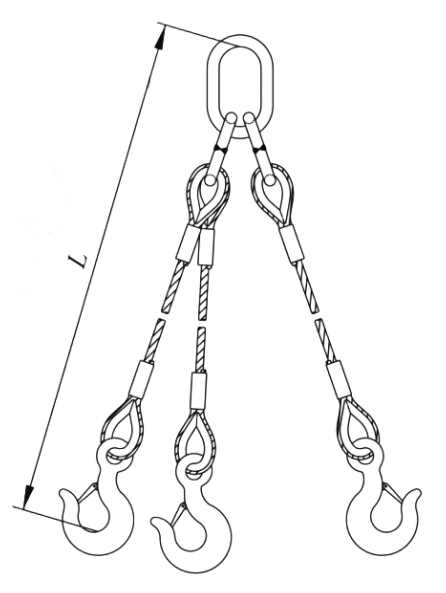

	Nominal Rope Diameter (mm)	W.L.L (kg)
	Nominal Rope Diameter (mm)	β≤45° 2.1	45°<β≤60° 1.5
	8	1197	855
	9	1533	1095
	10	1890	1350
	12	2730	1950
	13	3150	2250
	14	3570	2550
	16	4830	3450
	18	6090	4350
	20	7560	5400
	22	9030	6450
	24	10920	7800
	26	12810	9150
	28	14700	10500
	30	17010	12150
	32	19320	13800
	36	24570	17550
	40	30240	21600
	44	36750	26250
	48	43890	31350
	52	51240	36600
	56	59220	42300
	60	68040	48600
one leg sling direct WLL(kN)=MBL*0.9/5 WLL will be changed according to specification of the wire rope

	Nominal Rope Diameter (mm)	W.L.L (kg)
	Nominal Rope Diameter (mm)	α≤90° 2.1	90°<α≤120° 1.5
	8	1197	855
	9	1533	1095
	10	1890	1350
	12	2730	1950
	13	3150	2250
	14	3570	2550
	16	4830	3450
	18	6090	4350
	20	7560	5400
	22	9030	6450
	24	10920	7800
	26	12810	9150
	28	14700	10500
	30	17010	12150
	32	19320	13800
	36	24570	17550
	40	30240	21600
	44	36750	26250
	48	43890	31350
	52	51240	36600
	56	59220	42300
	60	68040	48600
one leg sling direct WLL(kN)=MBL*0.9/5 WLL will be changed according to specification of the wire rope

Wire Rope Sling:	Single leg Double legs Three legs Four legs
