Pressed Wire Rope Sling with Thimble Eyes

Standard: GB/T 6496
Diameter: 6-120mm
Surface: bright, galvanized, lubricated, PVC coated
Length: customizable

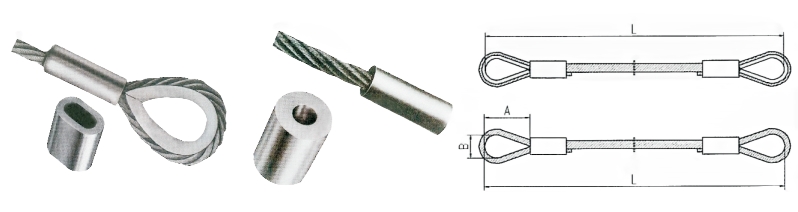

压制钢丝绳图纸_副本

Art.No.	Nominal Rope Dia. (mm)	W.L.L (T)	AxB (mm)	Art.No.	Nominal Rope Dia. (mm)	W.L.L (T)	AxB (mm)
ZS0402006	6	0.32	60x120	ZS0402068	68	37.63	680x1360
ZS0402008	8	0.58	80x160	ZS0402070	70	40.01	700x1400
ZS0402009	9	0.73	90x180	ZS0402072	72	42.22	720x1440
ZS0402010	10	0.9	100x200	ZS0402074	74	44.6	740x1480
ZS0402012	12	1.3	120x240	ZS0402076	76	47.17	760x1520
ZS0402013	13	1.53	130x260	ZS0402078	78	49.56	780x1560
ZS0402014	14	1.77	140x280	ZS0402080	80	52.13	800x1600
ZS0402016	16	2.31	160x320	ZS0402082	82	54.88	820x1640
ZS0402018	18	2.94	180x360	ZS0402084	84	57.45	840x1680
ZS0402020	20	3.62	200x400	ZS0402086	86	60.39	860x1720
ZS0402022	22	4.37	220x440	ZS0402088	88	63.14	880x1760
ZS0402024	24	5.21	240x480	ZS0402090	90	66.08	900x1800
ZS0402026	26	6.11	260x520	ZS0402092	92	69.01	920x1840
ZS0402028	28	7.08	280x560	ZS0402094	94	72.13	940x1880
ZS0402030	30	8.13	300x600	ZS0402096	96	75.05	960x1920
ZS0402032	32	9.25	320x640	ZS0402098	98	78.38	980x1960
ZS0402036	36	11.71	360x720	ZS0402100	100	81.5	1000x2000
ZS0402040	40	14.46	400x800	ZS0402102	102	84.8	1020x2040
ZS0402044	44	17.51	440x880	ZS0402104	104	88.29	1040x2080
ZS0402048	48	20.92	480x960	ZS0402106	106	91.59	1060x2120
ZS0402052	52	24.41	520x1040	ZS0402108	108	95.08	1080x2160
ZS0402056	56	28.27	560x1120	ZS0402110	110	98.75	1100x2200
ZS0402060	60	29.37	600x1200	ZS0402112	112	102.24	1120x2240
ZS0402062	62	31.39	620x1240	ZS0402114	114	105.91	1140x2280
ZS0402064	64	33.41	640x1280	ZS0402116	116	109.76	1160x2320
ZS0402066	66	35.61	660x1230	ZS0402120	120	117.47	1200x2400
WLL(kN)=MBL*0.9/5 Wire rope: 6x37+FC-1670Mpa(6-56mm),8x61+FC-1770Mpa(60-120mm) WLL will be changed according to specification of the wire rope
