ZS04
Gostern Rigging
ZS0404

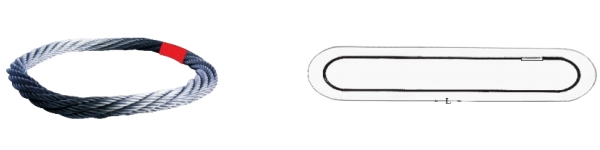

Endless Grommet Wire Rope Lifting Sling
Art.No. | Endless Rope Dia. | Breaking Load | Single WLL | Double WLL | Quadruple WLL | ||
α=0° | α=45° | α=90° | α=45° | α=90° | |||
ZS0204010 | 10 | 60 | 10 | 18 | 14 | 37 | 28 |
ZS0204012 | 12 | 100 | 16 | 30 | 20 | 58 | 40 |
ZS0204016 | 16 | 180 | 30 | 56 | 40 | 112 | 80 |
ZS0204019 | 19 | 240 | 40 | 74 | 56 | 148 | 112 |
ZS0204023 | 23 | 380 | 63 | 117 | 88 | 234 | 176 |
ZS0204029 | 29 | 480 | 80 | 148 | 113 | 296 | 226 |
ZS0204034 | 34 | 600 | 100 | 185 | 141 | 370 | 282 |
ZS0204040 | 40 | 900 | 150 | 278 | 212 | 556 | 424 |
ZS0204046 | 46 | 1200 | 200 | 370 | 282 | 740 | 564 |
ZS0204054 | 54 | 1500 | 250 | 463 | 353 | 926 | 706 |
ZS0204060 | 60 | 2000 | 320 | 592 | 451 | 1184 | 902 |
ZS0204067 | 67 | 2400 | 400 | 740 | 564 | 1480 | 1128 |
ZS0204075 | 75 | 3000 | 500 | 925 | 705 | 1850 | 1410 |
ZS0204080 | 80 | 3600 | 600 | 1110 | 850 | 2220 | 1700 |
ZS0204087 | 87 | 4200 | 700 | 1300 | 990 | 2600 | 1980 |
ZS0204095 | 95 | 4800 | 800 | 1480 | 1130 | 2960 | 2260 |
ZS0204100 | 100 | 5880 | 980 | 1810 | 1380 | 3620 | 2760 |
ZS0204110 | 110 | 6900 | 1150 | 2130 | 1620 | 4260 | 3240 |
ZS0204118 | 118 | 7800 | 1300 | 2410 | 1830 | 4820 | 3660 |
ZS0204135 | 135 | 10200 | 1700 | 3100 | 2400 | 6100 | 4700 |
ZS0204148 | 148 | 12000 | 2000 | 3700 | 2800 | 7200 | 5600 |
ZS0204160 | 160 | 14400 | 2400 | 4400 | 3400 | 8600 | 6700 |
ZS0204172 | 172 | 16800 | 2800 | 5200 | 4000 | 10000 | 7800 |
ZS0204184 | 184 | 18000 | 3000 | 5500 | 4200 | 10800 | 8400 |
ZS0204196 | 196 | 20400 | 3400 | 6300 | 4800 | 12200 | 9500 |
ZS0204208 | 208 | 22800 | 3800 | 7000 | 5370 | 13600 | 10600 |
ZS0204220 | 220 | 25200 | 4200 | 7700 | 5940 | 15000 | 11700 |
ZS0204234 | 234 | 28200 | 4700 | 8700 | 6600 | 16900 | 13100 |
ZS0204246 | 246 | 31200 | 5200 | 9600 | 7350 | 18700 | 14500 |
ZS0204258 | 258 | 34200 | 5700 | 10500 | 8000 | 20500 | 16000 |
ZS0204276 | 276 | 39600 | 6600 | 12200 | 9300 | 23700 | 18400 |
ZS0204295 | 295 | 45000 | 7500 | 13800 | 10600 | 27000 | 21000 |
ZS0204306 | 306 | 49200 | 8200 | 15200 | 11600 | 29500 | 22900 |
ZS0204324 | 324 | 55200 | 9200 | 17000 | 13000 | 33100 | 25700 |
ZS0204336 | 336 | 59400 | 9900 | 18000 | 14000 | 36500 | 27700 |
ZS0204356 | 356 | 66000 | 11000 | 20300 | 15500 | 39600 | 30800 |
ZS0204368 | 368 | 72000 | 12000 | 22200 | 17000 | 43200 | 33600 |

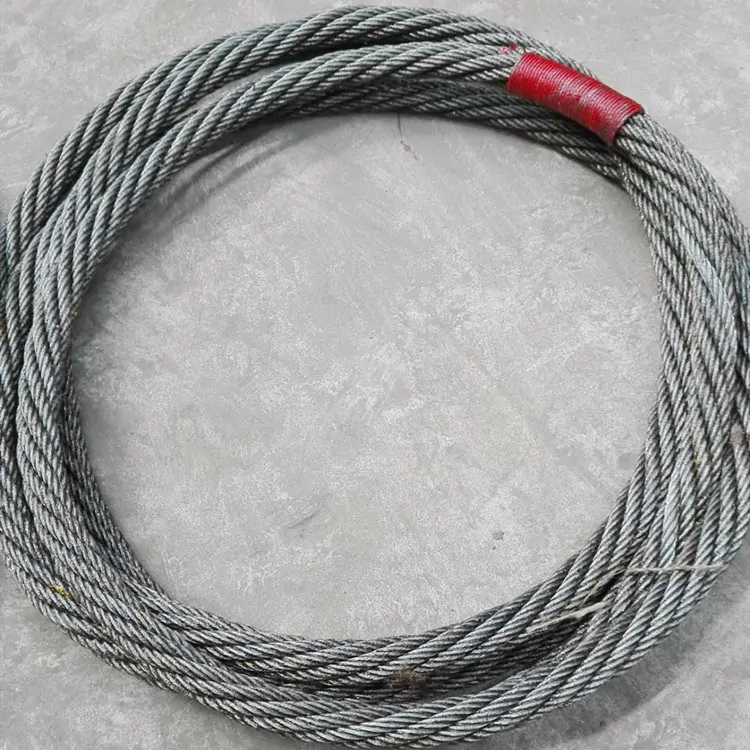

The endless wire rope slings are soft and have many lifting points, which can solve the operation requirements of small hoisting spaces and high loads. It is suitable for special machinery such as transformers and shipbuilding as well as places with special requirements for large-scale lifting in various environments. The minimum breaking tension of endless wire ropes sling is 6 times the working load.
