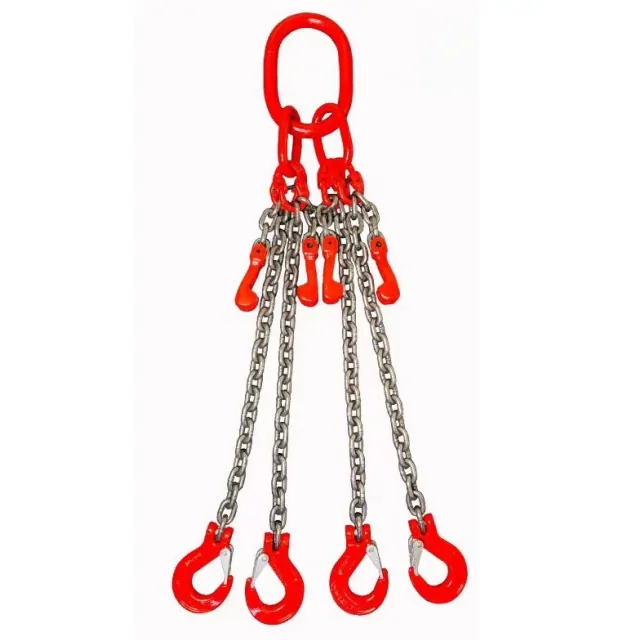

Grade 80 Adjustable Four Leg Lifting Chain Sling

Material: alloy steel
Standard: GB/T 20652, ISO 4778:2019, EN818-4
Safety Factor: 4:1
Length: customizable
Components: master link assembly, ID tag, connecting link, chain shortener, sling legs, end hardware.
Surface Treatment: Polished, black, galvanized, painted
Chain Diameter:
6mm
8mm
10mm
13mm
16mm
20mm
22mm
26mm
32mm
Lifting Hook:
Clevis self-locking hook
Clevis sling hook with latch
Eye self-locking hook
Swivel self-locking hook
Eye hoist hook with latch
Eye foundry hook
Chain Shortner:
Eye grab hook
Clevis grab hook
Clevis shortening clutch
Availability:
Quantity:
Inquire Add to Basket

  • ZS0802

  • Gostern Rigging

  • ZS080204a

Adjustable Four Leg Lifting Chain Sling

4 leg chain sling drawing(1)


Model

Chain Dia.
(mm)

WLL(T)

Master Link

 Assembly

(T)

Connecting

 Link

(T)

Weight

 of Chain

(kg/m)

α≤45°

45°＜α≤60°

ZS080204a-6

6

2.352

1.68

3

1.2

0.79

ZS080204a-8

8

4.2

3

4.7

2

1.38

ZS080204a-10

10

6.615

4.725

8

3.15

2.2

ZS080204a-13

13

11.13

7.95

16

5.3

3.8

ZS080204a-16

16

16.8

12

21.7

8

5.7

ZS080204a-20

20

26.25

18.75

28.4

12.5

9

ZS080204a-22

22

31.5

22.5

35

15

10.5

ZS080204a-26

26

44.52

31.8

45

21.2

15.2

ZS080204a-32

32

66.15

47.25

70

31.5

23

*Please pay attention to the lifting angle (α), the larger the lifting angle, the smaller the lifting capacity, lifting angle exceeding 60° is not allowed!
