Specifications

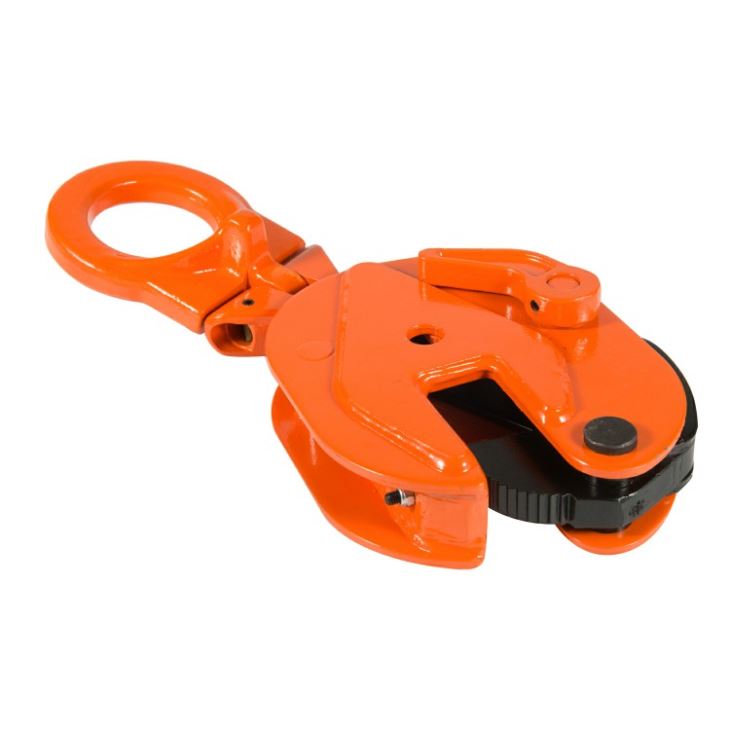

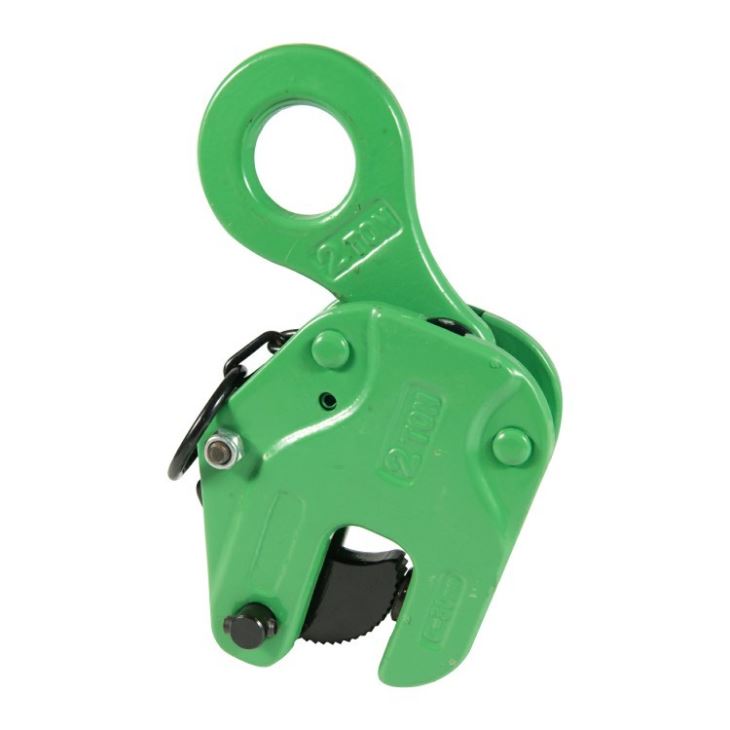

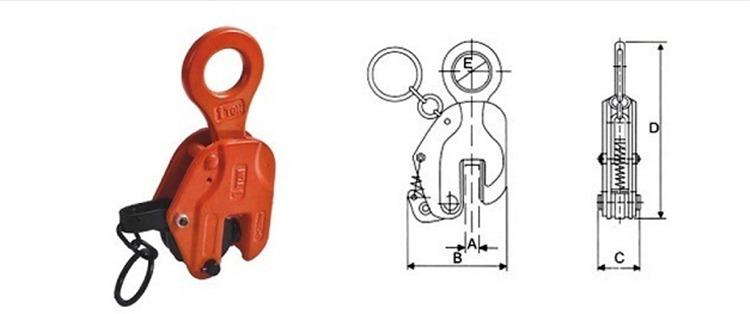

High Quality Forging Steel Vertical Plate Lifting Clamp
Model | Working Load Limit (Ton) | Jaw Opening (mm.) | Weight Each (kg.) |
LWK928-1 | 0.8 | 0-16 | 2.8 |
LWK928-2 | 1 | 0-22 | 3.6 |
LWK928-3 | 2 | 0-30 | 5.5 |
LWK928-4 | 3.2 | 0-40 | 10 |
LWK928-5 | 5 | 0-50 | 17 |
LWK928-6 | 8 | 0-60 | 26 |
LWK928-7 | 10 | 0-80 | 32 |
LWK928-8 | 12 | 25-90 | 48 |
LWK928-9 | 16 | 60-125 | 80 |

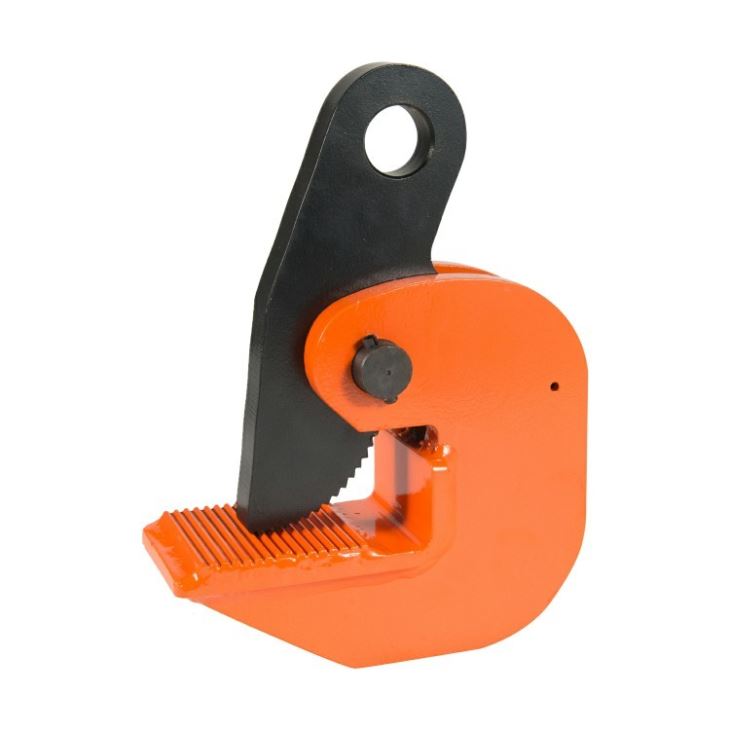

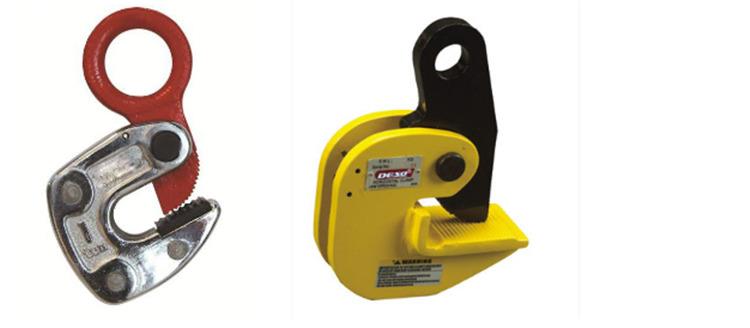

Horizontal steel lifting Plate Clamp
| Model | Working Load Limit (Ton) | Jaw Opening (mm.) | Weight Each (kg.) |
PPD0.8 | 0.8 | 0-25 | 2.5 |
PPD1 | 1 | 0-30 | 3.5 |
PPD1.6 | 1.6 | 0-30 | 4 |
PPD2 | 2 | 0-40 | 5 |
PPD3.2 | 3.2 | 0-45 | 6 |
PPD4 | 4 | 0-50 | 6.5 |
PPD5 | 5 | 0-55 | 7.5 |
PPD6 | 6 | 0-65 | 10.5 |
PPD6(B) | 6 | 0-130 | 10.5 |
PPD8 | 8 | 0-100 | 22 |
PPD10 | 10 | 0-125 | 32 |
How to use ?
Working Instruction Advice of Steel lifting plate clamp:
Lifting clamps are equipped with a per-tension mechanism ensuring the clamp does not slip when lifting force is applied and when load is being lowered. The clamp is locked in closed as well as in open position. Minimum WLL is 10% of the maximum WLL
Note: The plate surface of the material must have hardness lever below
Trips:
Do NOT side load clamp more than 15 degrees for side loading
DO NOT lift plates with a temperature greater than 100 degrees
DO NOT use to lift stainless steel, lead or copper.
DO NOT use on a double, triple, or quad sling. When using two clamps to lift a steel plate, a lifting beam must be used between the two clamps, so the clamps operate in a vertical position.
Certificate
Jiangsu Gostern Rigging CO,LTd as one of professional manufacturersthe in the area.Main products are various types of wire rope, steel wire rope, nylon rope sling, special fiber flexible lifting belt series, flat sling series, safety net, safety belt, lifting chain series, sling series of the beam, and metallurgy fixture series and three dynamic tools series.Products are widely used in metallurgy, machinery, railway, petrochemical, port, electric power, automobile, aviation, construction and other fields.
Why choose us?
1:How does your factory do regarding quality control?
Quality is priority,our workers always attach great importance to quality control from the very beginning to the very end. each products will be inspected before packing.
2:Are you a trading company or manufacturer?
We are a manufacturer, As the manufacturer,we have all the popular design ,Small order is accepted and competitive price
3:What's your payment terms?
In our usual practice, we accept T/T and L/C. For other payment terms, we can negociate about it depend on specific order details.
4:How can you make sure we will receive the products with high quality?
Our team will inspect and test goods very carefully when,Know the material tread and know the market better than the trade company
5:All enquiries responded within 12 hours
Close to the port and airport,providing the great advantages to trade
To contact us
Thank you for visiting our website, further questions please feel free to contact us. We will do our best to support you all the time.
