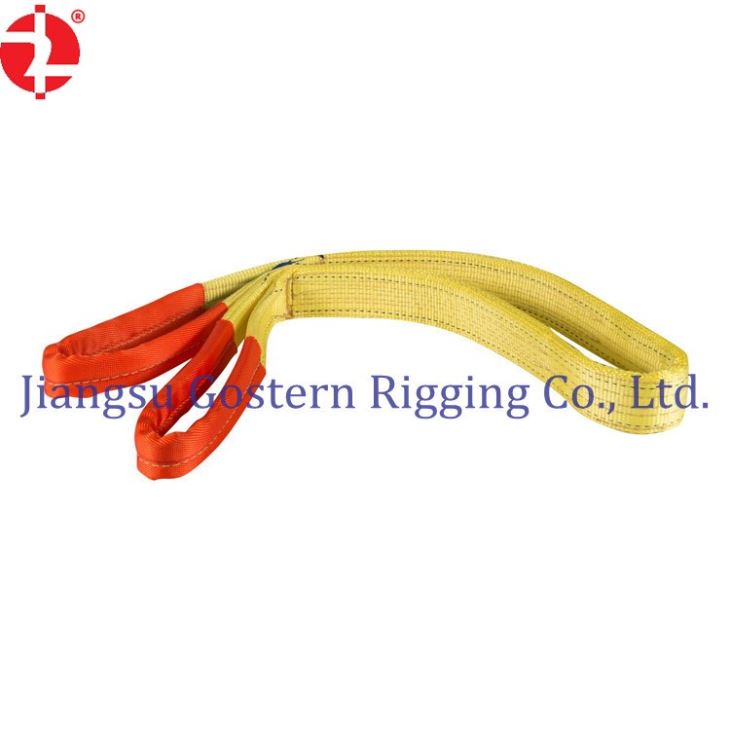

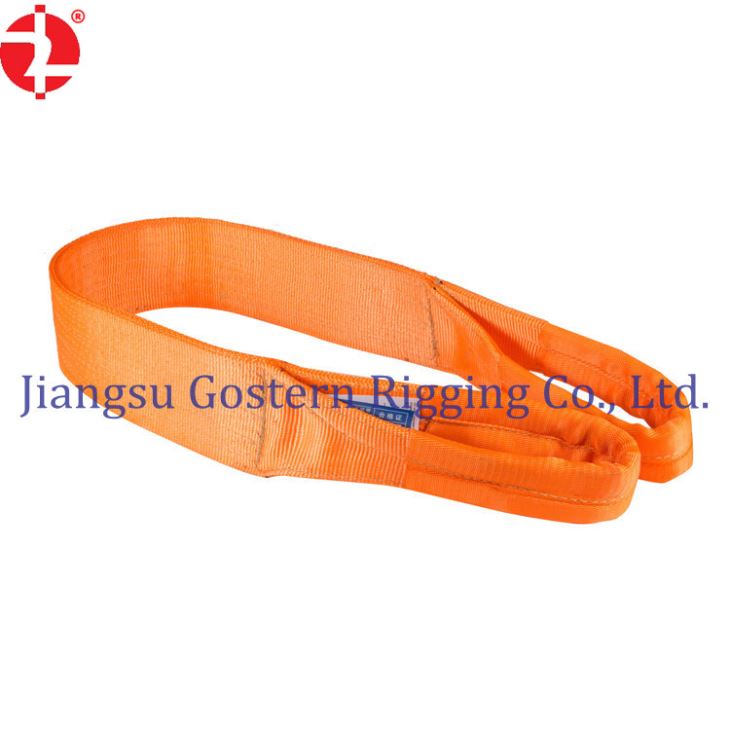

The flat webbing sling with two eyes is produced from top quality synthetic fiber by the advanced international level of weaving technology and equipment in various sewing methods. According to the customer's requirement, the safety factor of sling has 4: 1, 5: 1, 6: 1, 7: 1, 8: 1, which is produced according to international standard, for color and load capacity.
Specifications
Standard: ISO4878, EN1492-1
Material: High strength polyester (100%PES), nylon, Polypropylene, Dyneema
Safety factor: 6:1 or 8:1
Application range: color code or other requirements
Length: according to customer's demand
Safe working load: 0.5-500T
Body layer: 1ply to 4 plies
Type of soft eye: Flat eye/Reversed eye/Folded eye 1/2 width from one side/Folded eye 1/2 width from two sides/Folded eye 1/3 width
When lifting goods with sharp corners, edges or rough surfaces, need to use special protector for webbing slings to avoid cuts.
Art. No. | WLL | Thickness | Width | Min | Max | Weight |
(kg) | (mm) | (mm) | (m) | (m) | (kg/m) | |
ZS0102K-1 | 1000 | 7.5 | 25 | 0.8 | 100 | 0.2 |
ZS0102K-2 | 2000 | 7.5 | 50 | 1 | 100 | 0.41 |
ZS0102K-3 | 3000 | 7.5 | 75 | 1 | 100 | 0.6 |
ZS0102K-4 | 4000 | 7.5 | 100 | 1.5 | 100 | 0.75 |
ZS0102K-5 | 5000 | 7.5 | 125 | 1.5 | 100 | 1.02 |
ZS0102K-6 | 6000 | 7.5 | 150 | 1.5 | 100 | 1.06 |
ZS0102K-8 | 8000 | 7.5 | 200 | 2 | 100 | 1.69 |
ZS0102K-10 | 10000 | 7.5 | 250 | 2 | 100 | 2.07 |
ZS0102K-12 | 12000 | 7.5 | 300 | 2 | 100 | 2.17 |
Advantages
1) Manufactured according to EN 1492-1
2) All flat woven lifting slings are individually numbered and are fully traceable.
3) Every single webbing sling has labeled and certificated by the relevant standard together with information about safe use and maintenance.
More details
Factory
Jiangsu Gostern Rigging Co., Ltd. is both a manufacturer and export company. We are specialized in producing wire rope slings, webbing slings, lifting chains, lifting beam, lifting clamp, etc..
With the concept of customer first, we are committed to providing our customers with the urgent response, advanced technology, reasonable price with reliable quality products and perfect after-sales services.
As a professional supplier, we are your reliable partner and you'll obtain a one-stop solution here!
Certificates
Contact us
Thank you for visiting our website, further questions please feel free to contact us. We will do our best to support you all the time.
