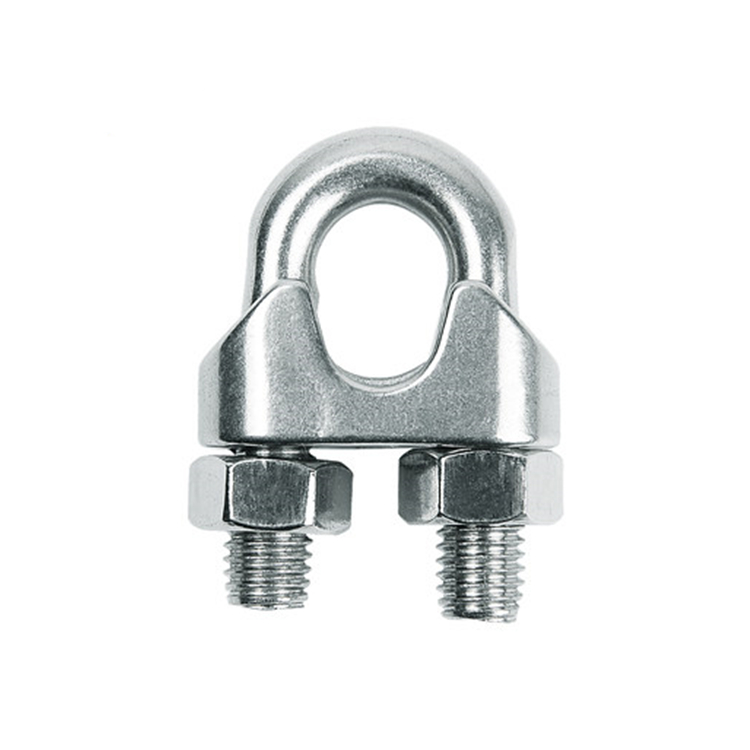

Forged Wire Rope Clamp

The forged wire rope clamp is mainly used for the temporary connection of the wire rope and the fixing of the rear hand rope when the wire rope is wound around the pulley group, and the fixing of the cable wind rope head on the mast, including the phosphate coated steel wire rope

Availability:

Quantity:



Inquire Add to Basket

Product Description

Forged Wire Rope Clamp

Gostern US Type Carbon Steel Wire Rope Clamp is a rugged U-bolt cable clamp designed for secure termination of wire rope ends, forming load-bearing eyes, and connecting two cable ends with a lap splice. This drop forged carbon steel construction provides superior strength compared to malleable iron clips, making it suitable for critical, heavy-duty applications such as winch lines, crane hoist lines, support lines, guy lines, and towing lines. Manufactured in compliance with Federal Specification FF-C-450 Type 1, Class 1 and ASME B30.26 standards. Available in hot dip galvanized finish per ASTM A153 for excellent corrosion resistance.Sizes from 1/8" to 3-1/2" wire rope diameter. Includes forged saddle base, U-bolt, and heavy hex nuts with UNC-2A threads.

When installed correctly, these clips provide 80-90% efficiency of the wire rope's breaking strength. Forged steel clips (unlike malleable iron) have a consistent grain structure for superior ductility and are required for overhead and critical lifting applications.Sizes 1/4" and above are marked with USA and date code for traceability. Widely used as Heavy Duty Forged Wire Rope Clip in construction, as Galvanized Cable Clamp for marine and outdoor rigging, as ASME B30.26 Wire Rope Clip for safety-critical applications, and as Rigging Hardware Cable Clip for general industrial use.

Forged Wire Rope Clamp

Specification:

Forged Wire Rope Clamp

1. Material: stainless, carbon steel, malleable

2. Surface treatment: polished, galvanized, HDG

3. Package: cartons of steel pallets or plywood pallets

4. Usage: Wire rope fittings

5. Safety factor: 4:1

Other available rigging accessories

Factory
We are a professional manufacturer from Jiangsu, China. Our main products: various types of steel wire ropes, wire rope slings, nylon rope slings, special webbing slings, safety nets, safety belts, lifting chains, lifting beam, lifting clamp, etc. all parameters can be customized.
