A Comprehensive Guide To Beam Clamps for Lifting

In the demanding world of construction, manufacturing and rigging, the ability to safely and efficiently lift heavy loads overhead is importent. Securely attaching these loads to structural support beams is a critical, often underappreciated task. This is where beam clamps prove indispensable.

Beam clamps for lifting are engineered hardware designed to create secure, temporary anchor points directly onto the flanges of I-beams, H-beams, and channels, enabling safe connection to hoists, chain falls, lever hoists, and other lifting devices. We must know the types available and the critical factors in selecting the right clamp.

Ⅰ.Beam Clamp Types

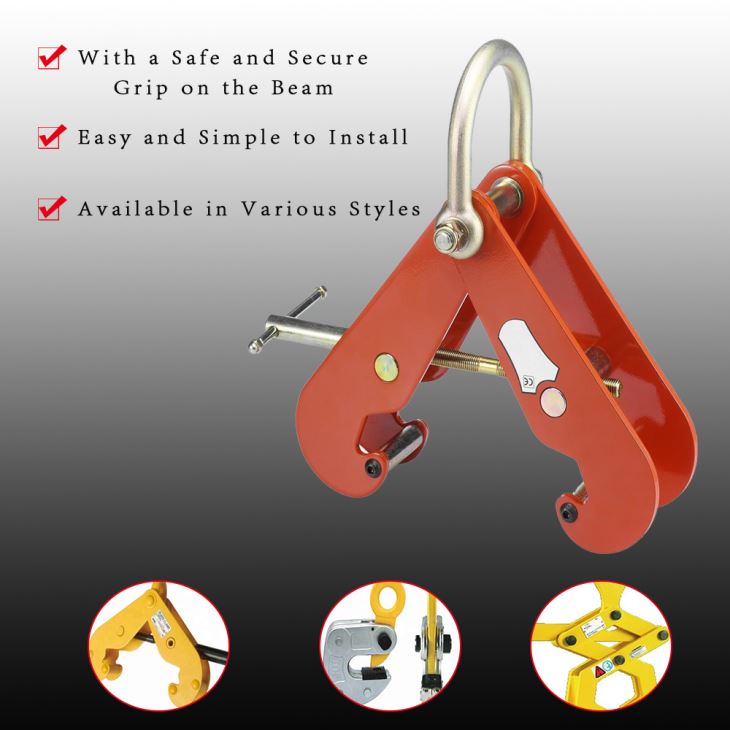

      1. Screw Type Beam Clamps:The most traditional and widely used design.

          ● Mechanism: Use a threaded bolt (screw) that tightens vertically against the top flange of the beam. The clamp body hooks under the bottom flange. Tightening the screw creates a powerful clamping force through friction and mechanical advantage.

          ● Advantages: Simple, robust, generally high load capacities, relatively cost-effective. Suitable for the static lifts and controlled pulling.

          ● Disadvantages: Installation can be slower than lever types.  Have some risks when the vibration is significant (though locknuts help). Load direction is primarily vertical, significant side loads can compromise security.

      2. Lever Operated Beam Clamps:

          ● Mechanism: Utilize a cam or linkage system activated by a lever. Pulling the lever rapidly engages the clamping mechanism against the beam flange.

          ● Advantages: Extremely fast installation and removal – suitable for frequent repositioning or production environments. Positive locking action is often visible. Good resistance to vibration loosening.

          ● Disadvantages: Than the same screw types, the load capacities is lower . May require more clearance for lever operation. Can be more expensive. Requires careful inspection of the locking mechanism.

       3. Universal Beam Clamp (Often Lever Type):

          ● Mechanism: Usually incorporates a pivoting that allows it to securely attach to beams of different flange thicknesses. Many are lever-operated for speed.

          ● Advantages: High adaptability – one clamp fits a range of beam sizes (within its rated capacity), reducing the need for multiple clamps on sites with varied steelwork. Fast application.

          ● Disadvantages: Load capacity might be lower than a screw clamp specifically sized for a particular large beam. Requires strict adherence to the manufacturer's sizing chart to ensure the beam falls within the clamp's compatible range. Complexity demands thorough inspection.

      4.  Plate Clamps (for Beam Edges): plate clamps are sometimes used on the edge of beam flanges if designed for it.

          ● Mechanism: Grip the vertical edge of the flange using serrated jaws actuated by a screw or lever.

          ● Application: More common for lifting steel plates, but specific designs can be rated for use on beam flange edges. Crucially: Only use clamps explicitly rated and designed for this purpose on beams. Standard plate clamps may not be suitable.

Ⅱ.Selecting the Right Beam Clamp for Lifting:

     1.  Load Capacity (Working Load Limit - WLL): This is non-negotiable.

   Determine the total weight to be lifted (including rigging hardware).

          ● Apply any relevant safety factors or dynamic load factors (consult regulations like ASME B30.20, B30.10, or local standards).

          ● Select a clamp whose WLL exceeds the calculated total load. Never exceed the marked WLL.

          ● Consider if multiple clamps will share the load (e.g., for a spreader beam) and ensure the load is distributed correctly.

     2.  Beam Specifications:

          ● Flange Width:The clamp must be compatible with the width of the beam's top flange. Universal beam clamps excel here but have limits – verify against the manufacturer's chart.

          ● Flange Thickness: The clamp's jaw opening or screw mechanism must accommodate the thickness of the beam flange. Insufficient thickness can prevent proper clamping; excessive thickness might prevent the clamp from seating correctly.

          ● Beam Type: Confirm the clamp is rated for the specific beam profile (I-beam, H-beam, wide flange, channel). Clamps designed for channels often have a different profile.

      3.  Lift Characteristics:

          ●Static vs. Dynamic: Make sure witch condition you will use. The load be held staticallyor dynamically lifted/lowered? Some clamps are better suited for continuous dynamic use.

          ●Load Angle: If slings are attached to the clamp's lifting eye, the angle creates side load. Use trigonometry to calculate the *actual* force on the clamp (Force = Load / (Number of Slings * cos(θ))). Ensure the clamp's WLL accounts for potential side loading.

          ●Direction of Pull: Most standard clamps are designed for vertical lifting. Pulling horizontally or at severe angles can dislodge them. Use only clamps specifically rated for such forces if required.

          ●Environment: Consider corrosion (can use stainless steel clamps), temperature extremes, or exposure to chemicals that could degrade materials.

      4.  Clamp Type & Operation:

          ● Frequency of Move: For frequent repositioning, a lever-operated clamp offers significant time savings. For heavy, static lifts, a robust screw-type might be preferable.

          ● Access: Screw clamps require overhead access for tightening. Lever clamps might need side clearance. Ensure operators can safely install and remove the clamp.

          ● Vibration: In high-vibration environments (e.g., near machinery), lever clamps or screw clamps with effective locknuts are essential to prevent loosening.

      5.  Compliance and Certification:

          ● Mandatory: Ensure the clamp complies with relevant national or international safety standards (e.g., ASME B30.20, B30.26 in the US; EN 13155 in Europe; DGUV in Germany). Look for permanent, legible markings including WLL, manufacturer and standard.

          ● Proof Testing & Certification: Reputable manufacturers supply clamps with test certificates. Regular inspection and periodic proof testing may be required by regulations or company policy.

Ⅲ.Safety First: Operation and Inspection

     1.Training: Only trained and authorized personnel should select, install, and use beam clamps.

     2.Pre-Use Inspection:Before every lift, inspect the clamp thoroughly:

        ● Check for cracks, bends, excessive wear (especially on threads and jaws), or corrosion.

        ● Ensure all moving parts (screws, levers, pivots) operate smoothly without binding.

        ● Verify legible markings and that the WLL is sufficient.

        ● Ensure the clamp is compatible with the specific beam.

     3.Correct Installation: Position the clamp squarely on the beam flange. For screw types, tighten securely according to the manufacturer's instructions (often requiring a torque wrench). For lever types, ensure the lever fully locks into place. Verify the clamp is fully seated and cannot slip.

     4.Load Path: Ensure the lifting device (shackle, hook) is correctly seated in the clamp's lifting eye and cannot slip out (use safety latches if appropriate).

     5.Lift Test: Perform a preliminary lift just off the ground to verify stability and security before proceeding.

     6.Never Side Load Excessively: Avoid applying forces that could pry the clamp off the beam.

     7.Regular Formal Inspections: Implement a schedule for documented, thorough inspections by a competent person, following manufacturer guidelines and regulations.
